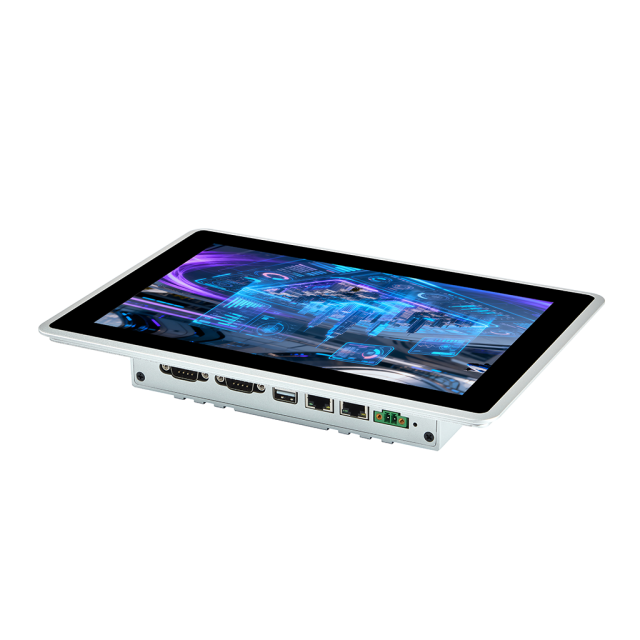

TPC370 Industrial Edge Visualization Tablet
  • TPC370 Industrial Edge Visualization Tablet,TPC370 Industrial Edge Visualization Tablet
  • TPC370 Industrial Edge Visualization Tablet,TPC370 Industrial Edge Visualization Tablet
  • TPC370 Industrial Edge Visualization Tablet,TPC370 Industrial Edge Visualization Tablet
  • TPC370 Industrial Edge Visualization Tablet,TPC370 Industrial Edge Visualization Tablet

TPC370 Industrial Edge Visualization Tablet

No.TPC370
The TPC370 Industrial Edge Visualization Tablet PC is a rugged 7-inch, 10.1-inch, and 15.6-inch industrial edge visualization tablet PC designed for smart manufacturing, energy management, and Industrial Internet of Things (IIoT) applications. It is powered by a Rockchip RK3562/RK3562J quad-core processor, enabling real-time data processing and intelligent control.
Description

TPC371 Series

Industrial Edge Visualization Panel PC · Multiple Size Options

7" | 10.1" | 15.6" high-brightness industrial displays, Rockchip RK3562/J quad-core A53 + M0, 1TOPS NPU, IP66 front panel, modular X/Y series I/O expansion, supports Linux/Ubuntu/Android, preinstalled BLIoTLink, BLRAT, Docker. Ideal for applications ranging from compact control to complex monitoring.

Core Features

Powerful edge AI, high-brightness touch, modular expansion

AI Edge Computing

  • Rockchip RK3562/RK3562J (22nm), quad-core Cortex-A53 up to 2.0GHz
  • Independent Cortex-M0 coprocessor @200MHz
  • NPU 1TOPS supports INT4/INT8/FP16, TensorFlow/PyTorch
  • GPU Mali-G52-2EE, supports OpenGL ES/OpenCL
  • RAM 1/2/4GB LPDDR4X, storage 8/16/32GB eMMC

Multi-Size High-Brightness Display

  • 7" / 10.1" / 15.6" optional
  • Resolution 1024x600 / 800x1280 / 1920x1080
  • Brightness 300~400 cd/m², sunlight readable
  • Front panel IP66 protection, IK08 impact resistance
  • Capacitive/resistive touch, supports glove/wet operation

Modular I/O Expansion

  • X-series I/O boards (GPIO/RS485/RS232/CAN/DI/DO)
  • Y-series I/O boards (AI/AO/RTD/TC/Relay/PWM)
  • Up to 1 X-board + 2 Y-boards simultaneously
  • 2x Mini PCIe (4G/WiFi), dual antenna, SIM slot
  • Dual Ethernet (100M), 2x USB2.0, 2x configurable RS485/232/CAN

Industrial Reliability & Software Stack

  • ESD/EFT/Surge level 3, reverse polarity/overcurrent protection
  • Independent hardware watchdog, -40℃~85℃ storage
  • Supports Linux-RT, Ubuntu 20.04, Android 13
  • Preinstalled BLIoTLink (protocol conversion), BLRAT (remote maintenance)
  • Docker, Node-RED, Qt, Python, QuickConfig tool

Key Specifications Snapshot

AI performance, memory, expansion & size variety

0
TOPS
NPU Performance
0
GB
LPDDR4X (max)
0
GB
eMMC (max)
0
sizes
Screen options

Screen Size Selection

Adapt to different spaces and viewing distances, same powerful core

7 inch
Compact
  • Resolution 1024x600 (WSVGA)
  • Brightness 400 cd/m²
  • Ultra-slim, ideal for embedded mounting
  • Capacitive/resistive touch
  • Perfect for AGV, handheld terminals
10.1 inch
Mainstream
  • Resolution 800x1280
  • Brightness 300 cd/m² (typical)
  • Wide viewing angle 80/80/80/80
  • Front panel IP66 protection
  • Widely used in production lines, energy storage, machine control
15.6 inch
Full HD
  • Resolution 1920x1080 (FHD)
  • Brightness 250 cd/m²
  • Larger display area for multi-window monitoring
  • Ideal for complex process visualization
  • Industrial wide-temperature design

Operating System Options

Flexible choice for different development needs

Buildroot
Lightweight & Real-time
  • Linux-5.10 / RT-5.10 kernel
  • Fast boot, minimal system
  • Suitable for deterministic control
  • Qt 5.15 graphics support
Ubuntu 20.04
Full-featured development
  • Complete software package ecosystem
  • Preinstalled Docker, Python, Node-RED
  • Supports ROS / computer vision libraries
  • BLIoTLink & BLRAT remote tools
Android 13
Multimedia interaction
  • Rich UI and touch experience
  • 4K@30fps decoding capability
  • Ideal for HMI development
  • Supports Java/Kotlin apps

Typical Applications

From smart manufacturing to heavy machinery

Smart Manufacturing

Production line HMI, PLC data acquisition, assembly error-proofing, quality traceability

Machine Vision

NPU-accelerated defect detection, OCR, barcode recognition, positioning guidance

Energy Storage EMS/BMS

Battery stack monitoring, balancing control, fault prediction, cloud data upload

PV/Inverter Control

Power optimization, on/off-grid switching, real-time monitoring & remote maintenance

Smart Warehousing

AGV onboard terminal, path planning, task scheduling, RFID reading

Heavy Machinery

Cab terminal, vibration monitoring, hydraulic control, operating mode switching

Quality & Reliability

Rigorous testing, industrial-grade assurance

EMC Immunity

  • Electrostatic discharge (ESD) contact ±4kV / air ±8kV
  • Electrical fast transient (EFT) power 2kV / signal 1kV
  • Surge differential 2kV / common 4kV
  • Conducted/radiated emission Class A (CISPR 32)

Environmental Tests

  • Cold start -30°C & hot run +70°C
  • Damp heat 40°C / 85% RH 48h
  • Sinusoidal vibration 5-500Hz, 2g, 3 axes
  • Free fall 0.8m (packaged)
  • Protection rating IP30 (whole unit) / front panel IP66

Software & Support

  • Kernel source / filesystem image / SDK
  • Rich development examples (Qt, Docker, MQTT, EtherCAT)
  • X/Y board drivers and demo programs
  • Long-term maintenance & professional technical support

Choose Your Edge Visualization PC

7", 10.1", or 15.6" screen sizes, same powerful RK3562/J platform, 1TOPS NPU, modular I/O, preloaded industrial software. Whether compact control or complex monitoring, the TPC371 series delivers.
