Model |
ETH |
USB |
X board I/O Slot |
Y board I/O Slot |
Dimension |
|
BL335 |
2x100M |
2 |
2x5PIN |
X |
46x83x110mm |
|
BL335A |
2x100M |
2 |
2x5PIN |
1 |
46x83x110mm |
|
BL335B |
2x100M |
2 |
2x5PIN |
2 |
46x83x110mm |
|
Model |
MCU |
Clock Speed |
Kernel |
DDR3 |
eMMC |
Temperature |
|
SOM332 |
T113-i |
1.2GHz |
2 x A7 |
256Mbyte |
4GByte |
-40~85°C |
|
SOM333 |
T113-i |
1.2GHz |
2 x A7 |
512Mbyte |
4GByte |
-40~85°C |
|
SOM334 |
T113-i |
1.2GHz |
2 x A7 |
512Mbyte |
8GByte |
-40~85°C |
|
SOM335 |
T113-i |
1.2GHz |
2 x A7 |
1GByte |
8GByte |
-40~85°C |
|
SOM336 |
T113-i |
1.2GHz |
2 x A7 |
256Mbyte |
4GByte |
-20~70°C |
|
X Board |
RS485 |
RS232 |
CAN |
GPIO |
DI |
DO |
PIN |
|
X0 |
x |
x |
x |
8 |
x |
x |
2x5PIN |
|
X1 |
4 |
x |
x |
x |
x |
x |
2x5PIN |
|
X2 |
x |
4 |
x |
x |
x |
x |
2x5PIN |
|
X3 |
2 |
2 |
x |
x |
x |
x |
2x5PIN |
|
X4 |
2 |
x |
2 |
x |
x |
x |
2x5PIN |
|
X5 |
x |
2 |
2 |
x |
x |
x |
2x5PIN |
|
X6 |
2 |
x |
x |
4 |
x |
x |
2x5PIN |
|
X7 |
x |
2 |
x |
4 |
x |
x |
2x5PIN |
|
X8 |
1 |
1 |
1 |
2 |
x |
x |
2x5PIN |
|
Model |
Description |
|
Model |
Description |
|
Y01 |
4xDI+4xDO(NPN) |
Y41 |
4xAO, 0~20mA/4~20mA |
|
|
Y02 |
4xDI+4xDO(PNP) |
Y43 |
4xAO, 0~5V/0~10V |
|
|
Y11 |
8xDI(NPN) |
Y46 |
4xAO, ±5V/±10V |
|
|
Y12 |
8xDI(PNP) |
Y51 |
2xRTD, 3-Wire PT100 |
|
|
Y13 |
8xDI(Dry Contact) |
Y52 |
2xRTD, 3-Wire PT1000 |
|
|
Y21 |
8xDO(PNP) |
Y53 |
2xRTD, 4-Wire PT100 |
|
|
Y22 |
8xDO(NPN) |
Y54 |
2xRTD, 4-Wire PT1000 |
|
|
Y24 |
4xDO(Relay) |
Y56 |
Resistance Measurement |
|
|
Y31 |
4xAI, Single-ended, 0~20mA/4~20mA |
Y57 |
Voltage Measurement |
|
|
Y33 |
4xAI, Single-ended, 0~5V/0~10V |
Y58 |
4xTC |
|
|
Y34 |
4xAI, Differential, 0~5V/0~10V |
Y63 |
4xRS485 or RS232 |
|
|
Y36 |
4xAI, Differential, ±5V/±10V |
|
Y95 |
4xPWM Output(NPN) + 4xPulse Counter Input |
|
Y37 |
4xIEPE |
|
Y96 |
4xPWM Output(PNP) + 4xPulse Counter Input |
|
Hardware |
Parameters |
|
CPU |
Allwinner T113-i, 22nm, 2xARM Cortex-A7, clock speed up to 1.2GHz |
|
2xARM Cortex-A7, clock speed up to 1.2GHz |
|
|
1xHiFi4 DSP, clock speed up to 600MHz |
|
|
1xXuantie C906 RISC-V (64-bit), clock speed up to 1008MHz |
|
|
Encoder: Supports JPEG/MJPEG up to 1080p@60fps |
|
|
Decoder: H.265 MP@L5.0: Supports up to 4K@30fps H.264 BP/MP/HP@L5.0: Supports up to 4K@24fps MPEG-4 SP/ASP L5.0: Supports up to 1080p@60fps MPEG-2/MPEG-1 MP/HL: Supports up to 1080p@60fps JPEG/Xvid/Sorenson Spark: Supports up to 1080p@60fps MJPEG: Supports up to 1080p@30fps |
|
|
Storage |
4/8GByte eMMC |
|
RAM |
256M/512M/1GByte DDR3 |
|
ETH |
RJ-45 interfaces, 2 ports, 2x100M, ESD Level 3, EFT Level 3 |
|
USB |
2x USB 2.0 HOST (USB1, USB2), supports high-speed 480Mbps, full-speed 12Mbps, and low-speed 1.5Mbps modes, ESD Level 3. |
|
I/O Slot |
X series I/O board slot: 1, support RS485, CAN, RS232, RS422, DI, DO, GPIO, etc; Y series I/O board slot: 2, support RS485, CAN, RS232, RS422, DI, DO, Relay output, AI, AO, PT100, PT1000, TC, IEPE, etc |
|
LED |
1x power indicator light |
|
2x user-programmable indicator light |
|
|
Mini PCIe |
1, Supports Wi-Fi, 4G module, etc. |
|
SIM Slot |
1 slot, NANO |
|
Antenna |
2, For 4G/Wi-Fi/GPS |
|
Debug |
1x Micro USB debug port |
|
SD Slot |
1 |
|
Reset |
1 reset button |
|
Watchdog |
Onboard independent hardware watchdog |
|
Power |
Rated DC 24V, supports wide voltage range of 12-24VDC Equipped with reverse polarity protection and overcurrent protection 2-pin terminal block with screw terminals |
|
Grounding |
1-pin GND terminal |
|

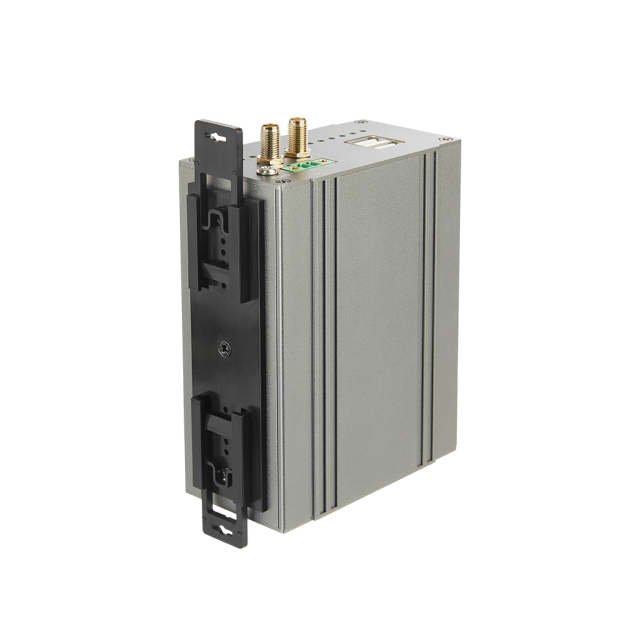

Installation |
DIN35 rail mounting, wall mounting |
|
Material |
Aluminum alloy casing + stainless steel |
|
Dimension |
110 x 83 x 46 mm (tolerance ±0.5mm) |
✓ Industrial Control
✓ Photovoltaic Generation
✓ Data Collector
✓ Edge Computing
✓ Smart Devices
✓ Rail Transit
✓ Energy Storage Systems
✓ IoT Gateway
