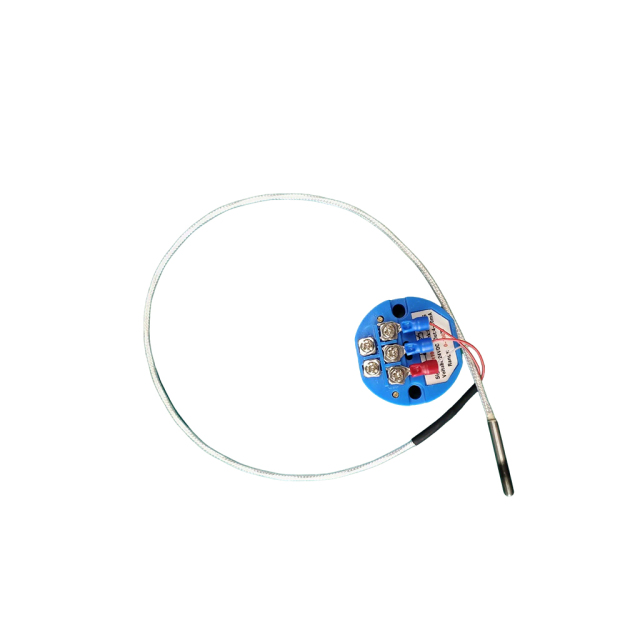

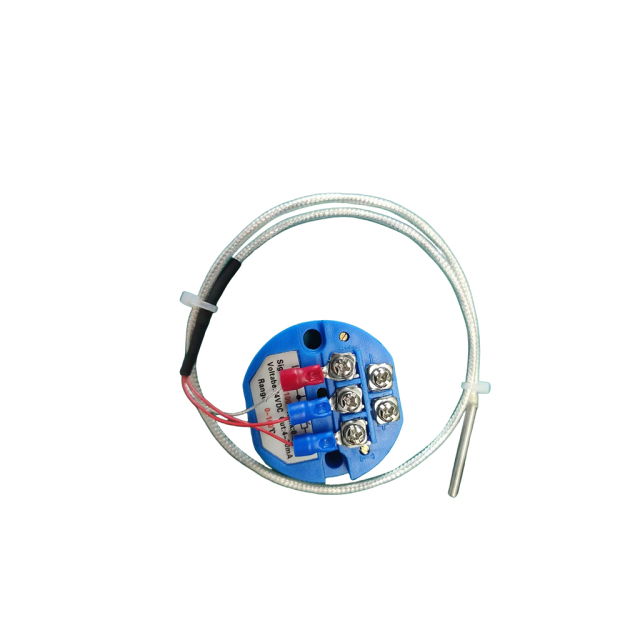

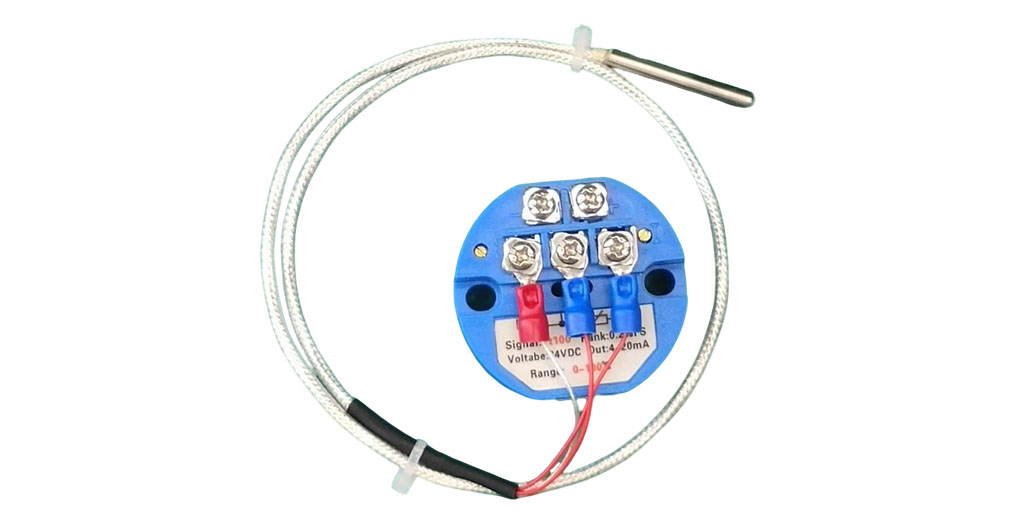

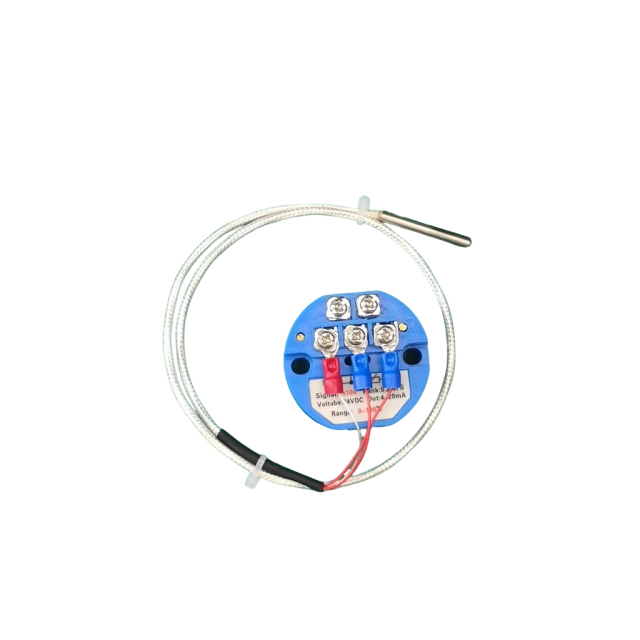

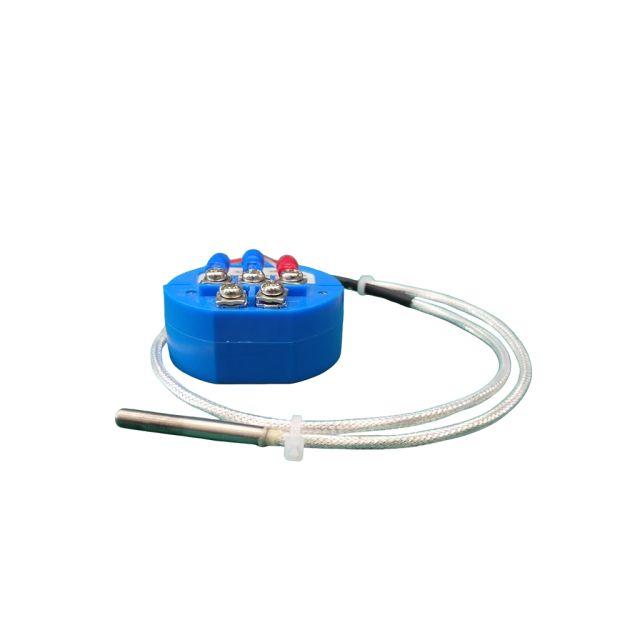

Temperature Transducer (With PT100C adapter)

No.PT100

The PT100 is a high-precision, industrial-grade temperature transducer with a 4-20mA output, wide measuring range (-50~200°C), and robust protection features, ideal for automation and process control.

Request Pricing

Share:

Description

Wide range for measurements from -50~+200℃!
power reverse polarity protection and overload protection!
Standard 4-20mA output for RTU, PLC and acquisition equipments!

The PT100-x series Temperature transducer is thermal resistance type, output 4~20mA, 2 wired output professional transducer. This Transducer with the highly reverse connect protection.

When the transducer has not connect to the sensor, the output current ≤3.6mA, when the sensor disconnect to the transducer during working, also will output ≤3.6mA; when the sensor’s “+” contact disconnect to transducer, the output currect≤ 25±2mA.

Key Features

Stability , high precision;
Directly immerse into the measured medium, very easy to
install and use;
Standard 4-20mA output for RTU, PLC and acquisition
equipments;
Wide range for measurements from -50~+200℃.
With power reverse polarity protection and overload
Current limit protection .

Typical Application Scenarios

Industrial Process Control – Monitors liquid/gas temperatures in manufacturing, chemical, and oil & gas industries.
HVAC & Environmental Monitoring – Measures ambient or equipment temperatures in heating, ventilation, and climate control systems.
Automation & PLC Integration – Provides 4-20mA signals for PLCs, RTUs, and SCADA systems in automated production lines.
Food & Beverage Processing – Ensures precise temperature control in storage, pasteurization, and refrigeration.
Water & Wastewater Treatment – Tracks fluid temperatures in pipelines, tanks, and treatment facilities.
Energy & Power Systems – Monitors cooling systems, transformers, and heat exchangers in power plants.
Laboratory & Research Equipment – Used in experiments requiring stable and accurate temperature measurements.

Technical Specifications

Measurement range: -50~+200℃
Main material: Transducer: Plastic ; Sensor:Anti-corrosion
Working Temperature: -20～+80℃;
Load Capacity:0~500Ω
Output: 2-wire 4~20mA ;
Protection output currect: Max:≤27mA Min:≤3.6mA
Working Power: 12～30VDC;
Accuracy: 2~10% depends on the length of transducer
InstallationHolespacing:36mm
Excircle:Φ45mm, spindle hole:Φ22mm

Packaging

1 x Transducer

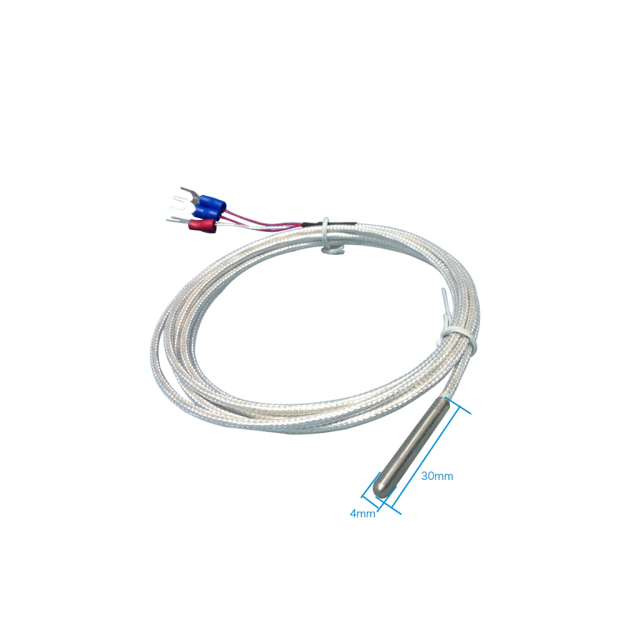

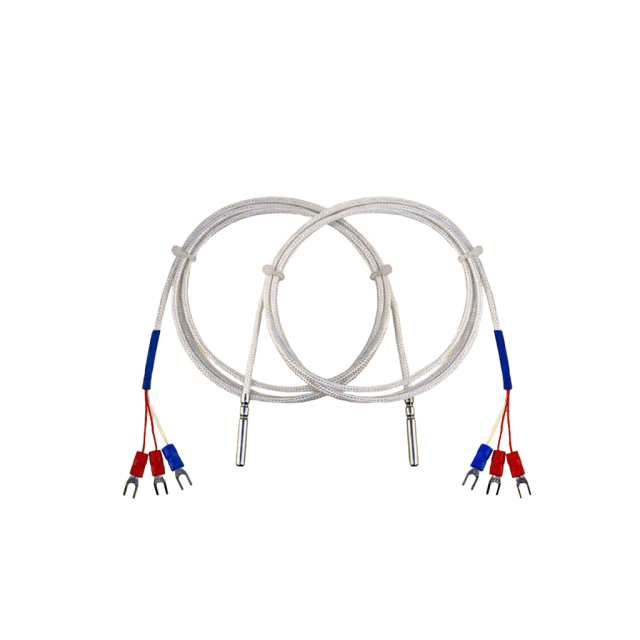

1 x Temperature sensor PT100-X(Optional:1m,3m,5m,10m...30m etc.)
