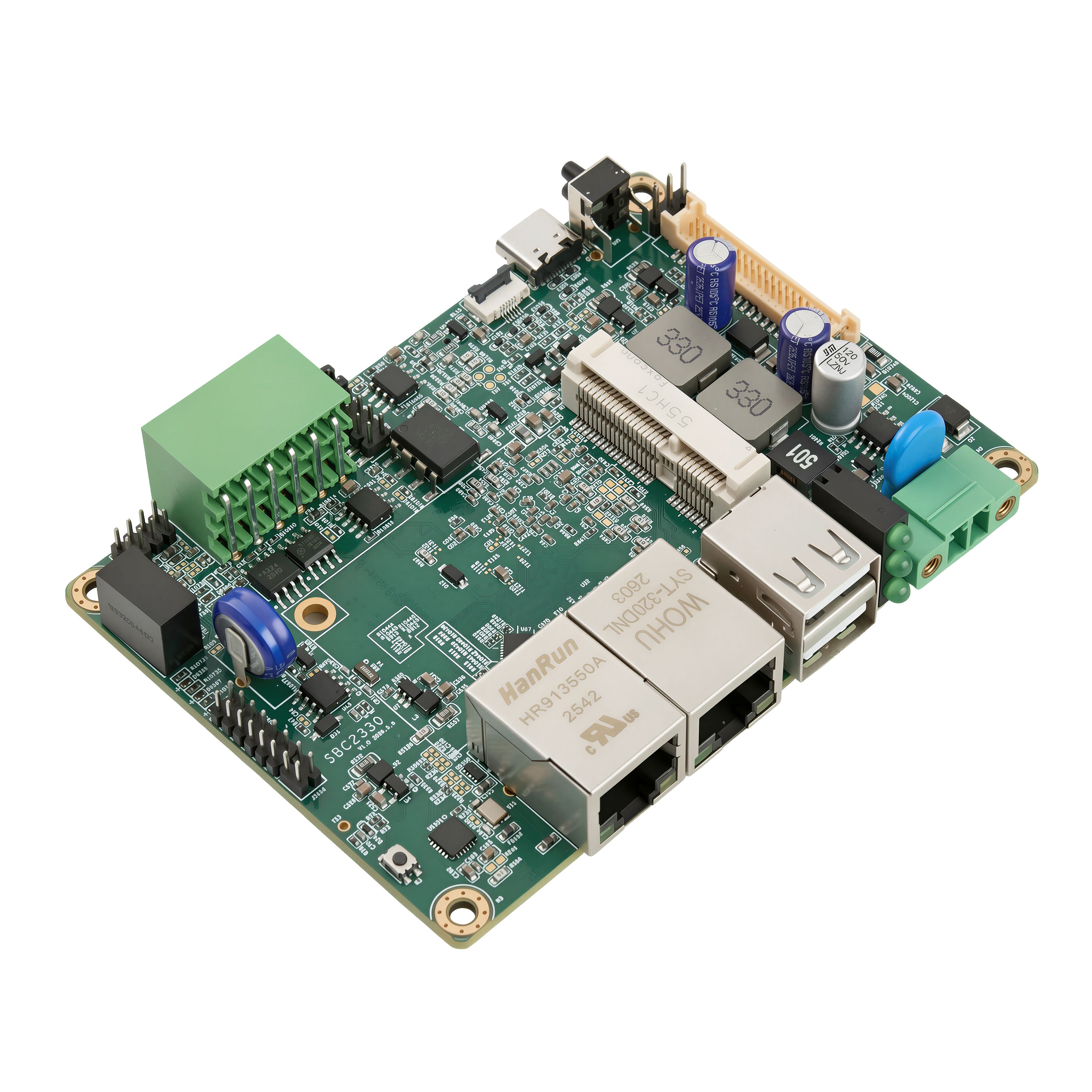

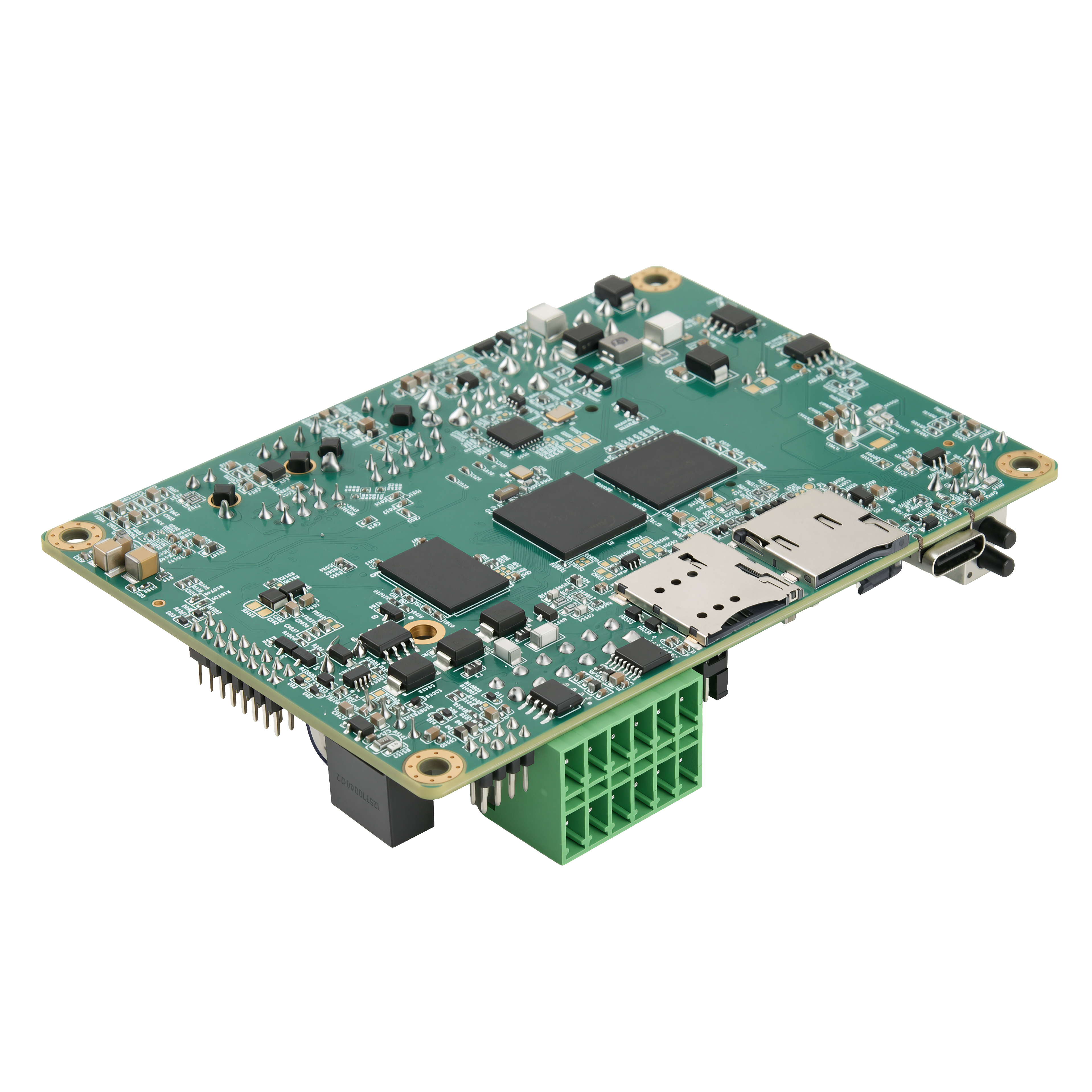

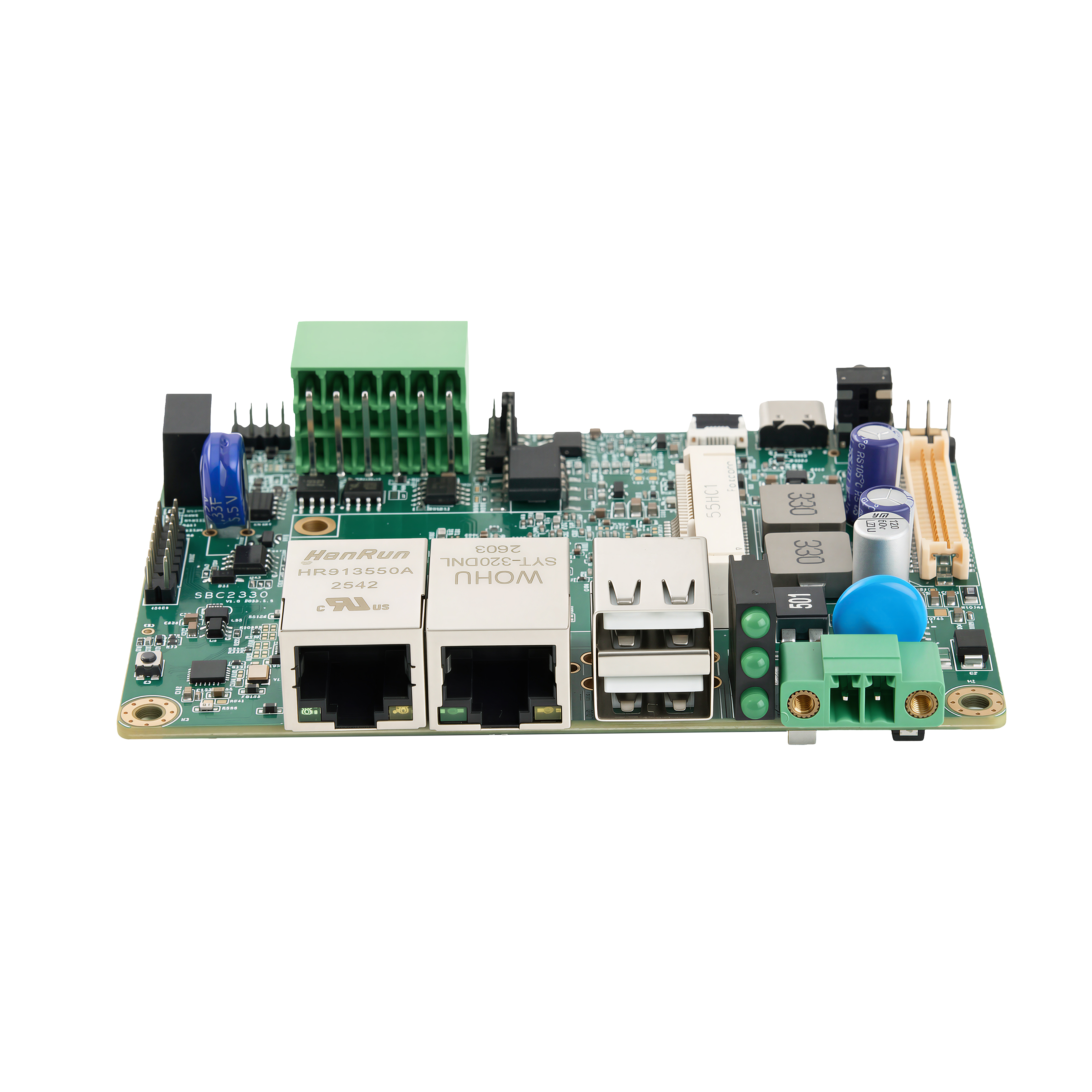

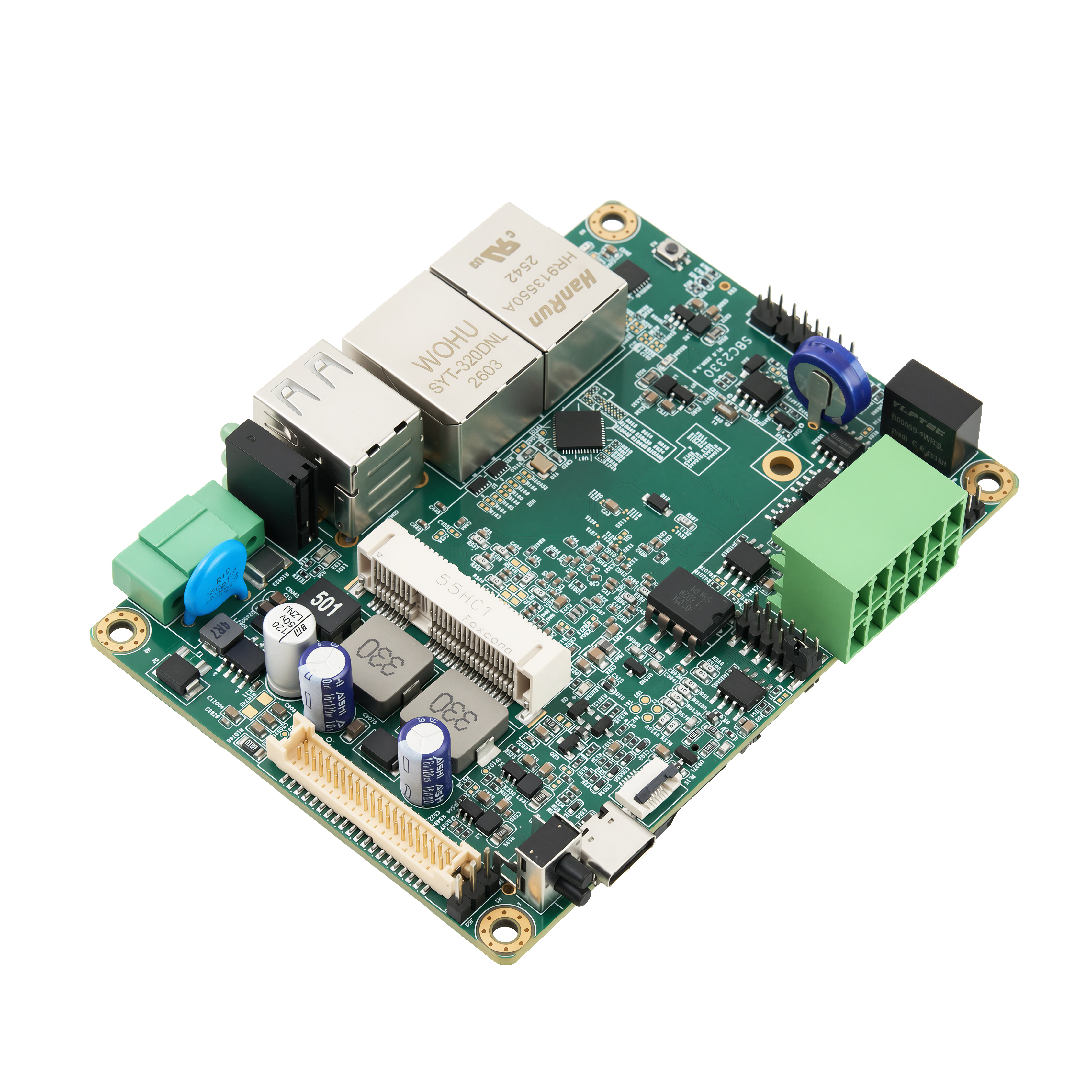

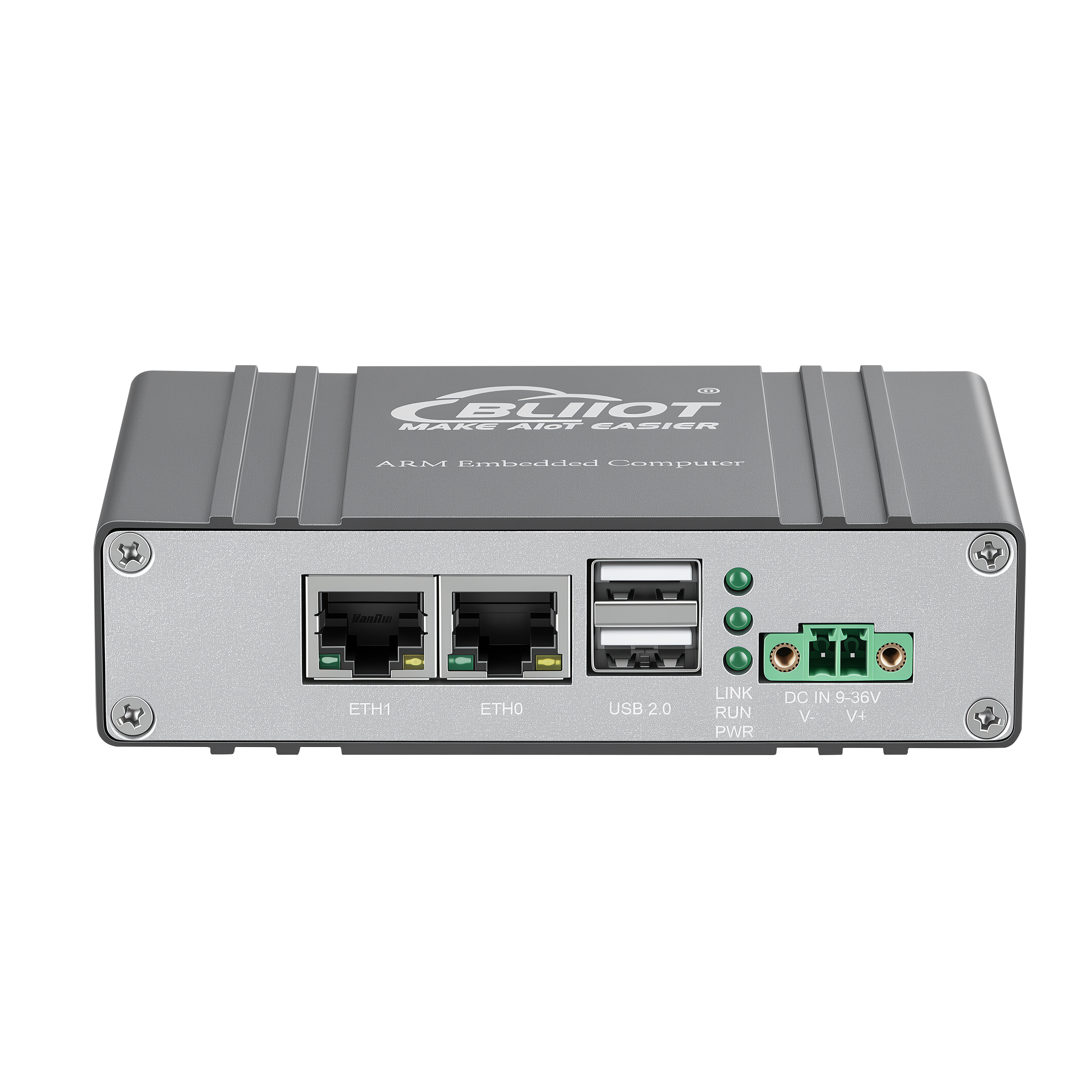

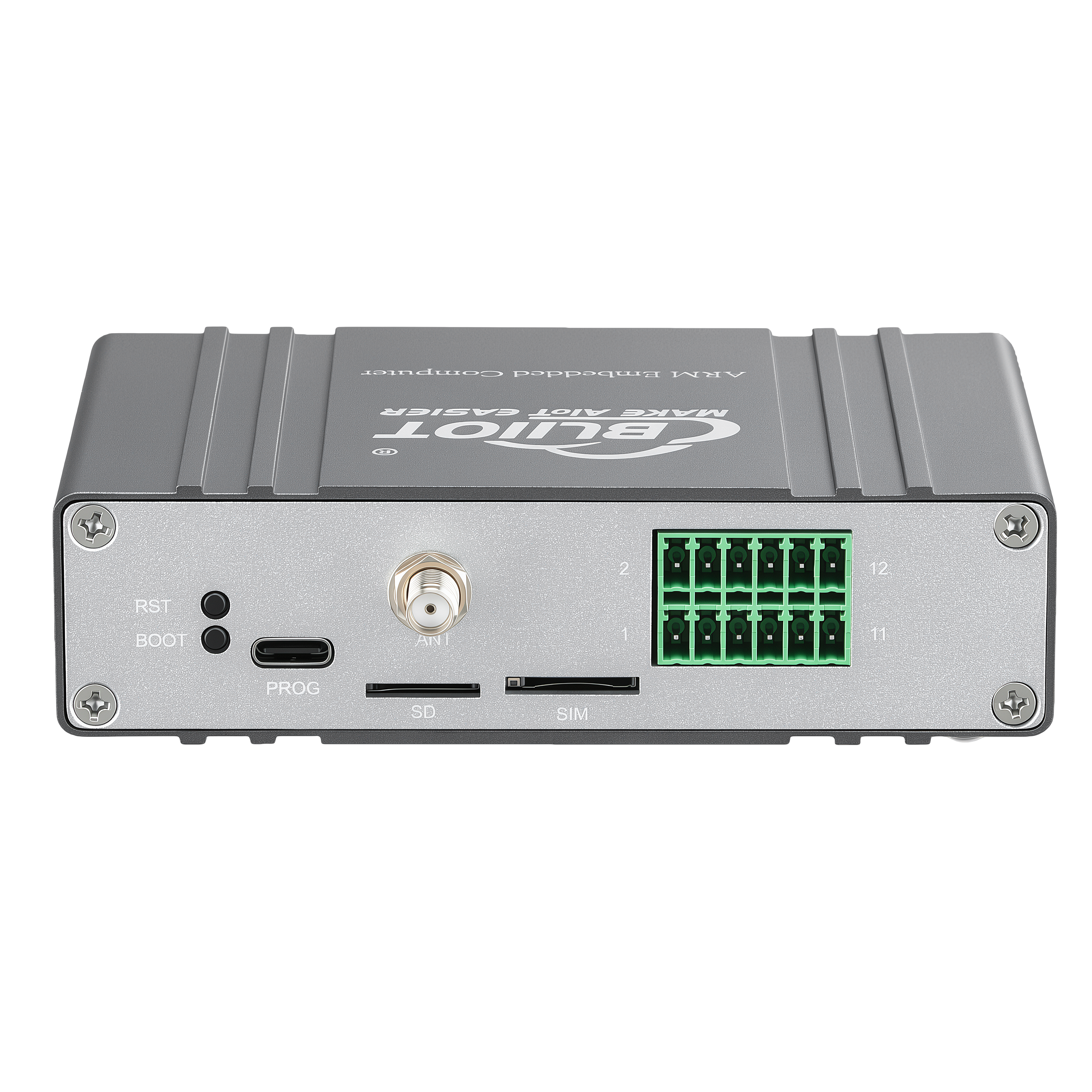

SBC2332 is a 2.5inch PICO-ITX embedded single board computer based on the industrial-grade Allwinner T113-i processor. With an ultra-compact 100 mm × 72 mm footprint, and 1× Mini PCIe that supports 4G/5G, Wi-Fi/BT, or LoRaWAN. it is designed for industrial applications with limited space that still require high-performance edge computing and real-time control.
Industrial-grade PICO-ITX single board computer powered by Allwinner T113-i heterogeneous multi-core processor. Ultra-compact, flexible, and built for edge computing.
Dual ARM Cortex-A7 @1.2GHz + 64-bit XuanTie C906 RISC-V + HiFi4 DSP. Perfect fusion of complex application processing and high real-time control.
1x GbE + 1x Fast Ethernet, 2x USB 2.0, configurable RS485/RS232/CAN, 2x DI, 2x DO. MiniPCIe for 4G/5G, WiFi/BT, LoRaWAN.
18-bit LVDS display interface, Line-out & Mic-in, UART, SPI, I2C expansion. High-precision RTC with CR1220 backup.
12-24VDC wide voltage input, -40°C to +85°C operating temperature, ESD/EFT/Surge protection Level III. Fanless passive cooling.
Selectable RAM (256MB/512MB/1GB DDR3) and ROM (4GB/8GB/16GB eMMC). TF card expansion supported.
Typical power consumption below 2W. Ideal for space-constrained and power-sensitive edge deployments.
| CPU | Allwinner T113-i, 22nm 4x ARM Cortex-A7 @ up to 1.2GHz 1x HiFi4 DSP @ up to 600MHz 1x XuanTie C906 RISC-V (64-bit) @ up to 1008MHz |
|---|---|
| Video Decoding | H.265 MP@L5.0 up to 4K@30fps, H.264 BP/MP/HP@L5.0 up to 4K@24fps, MPEG-4/2/1, JPEG, MJPEG |
| Video Encoding | JPEG/MJPEG up to 1080p@60fps |
| RAM | 256MB / 512MB / 1GB DDR3 (selectable) |
| ROM | 4GB / 8GB / 16GB eMMC (selectable), TF card expansion |
| Ethernet | 1x Gigabit RJ45 + 1x Fast Ethernet RJ45, ESD Level 3, EFT Level 3 |
| USB | 2x USB 2.0 Type-A (ESD Level 3), 1x USB Type-C (OTG, ESD Level 3) |
| Display | 1x Single-channel 18-bit LVDS connector |
| Wireless Expansion | 1x MiniPCIe, supports 4G/5G, WiFi/BT, or LoRaWAN (one at a time) |
| SIM Card | 1x Micro-SIM slot |
| Digital Input | 2x Isolated DI, wet contact, ≥12V closed, <12V open, active high |
| Digital Output | 2x Isolated DO, transistor output, active low |
| Serial Ports | 2x Isolated RS485 (RX, TX) (multiplexed with RS232/CAN) 1x Isolated RS232 (RX, TX, GND) (multiplexed with RS485-1) 1x Isolated CAN 2.0B (RX, TX) (multiplexed with RS485-2) |
| SPI / I2C | 1x 4-wire SPI (master/slave configurable), 1x I2C (3.3V, standard & fast mode) |
| Audio | 1x Line-out + 1x Mic-in (pin header) |
| RTC / Watchdog | High-precision RTC with CR1220 battery backup, independent hardware watchdog (default 60s reset) |
| Power | 12-24VDC, 2-pin terminal input (adapter 12V/2A or 24V/1A required, not included) |
| Cooling | Passive cooling (thermal pad/heatsink) |

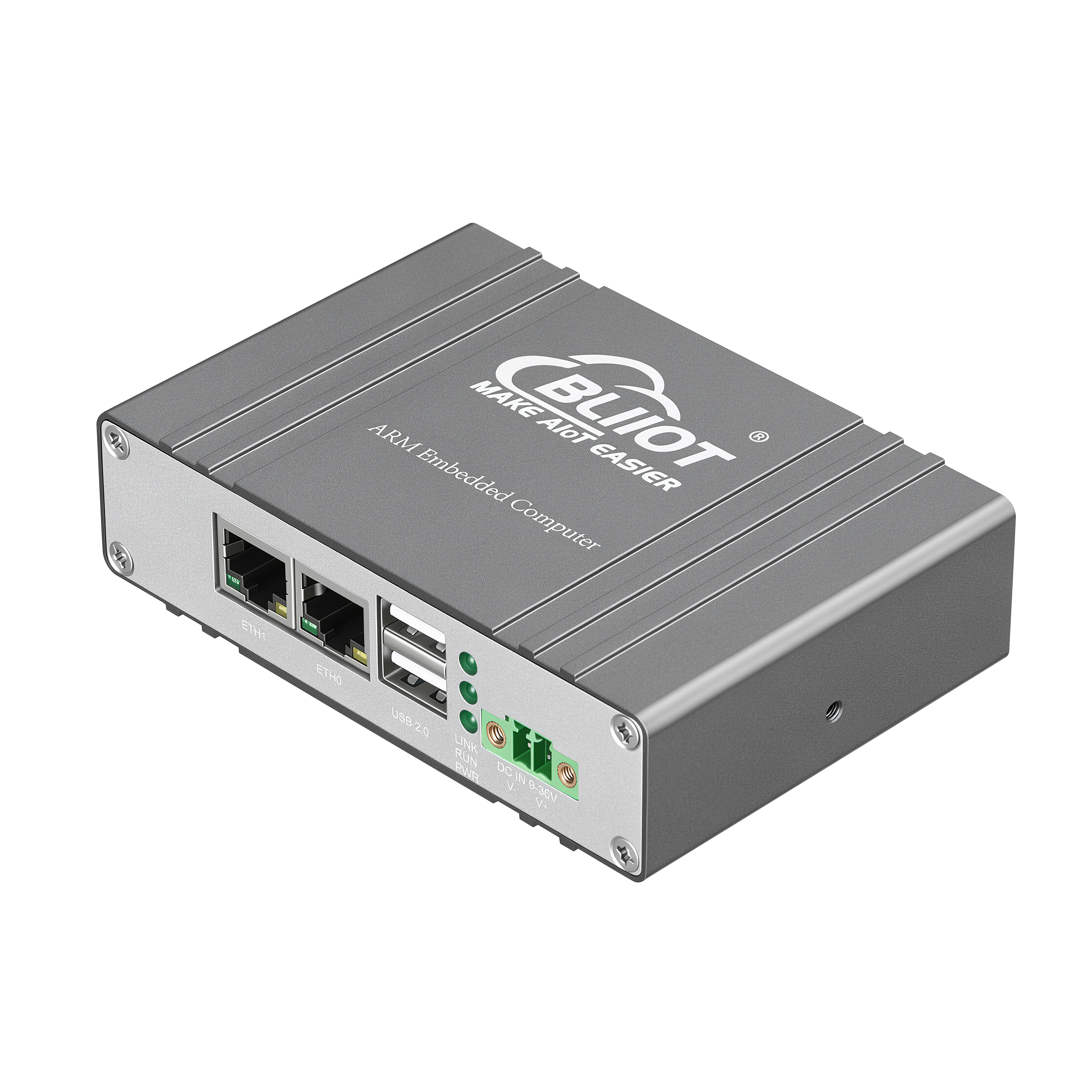

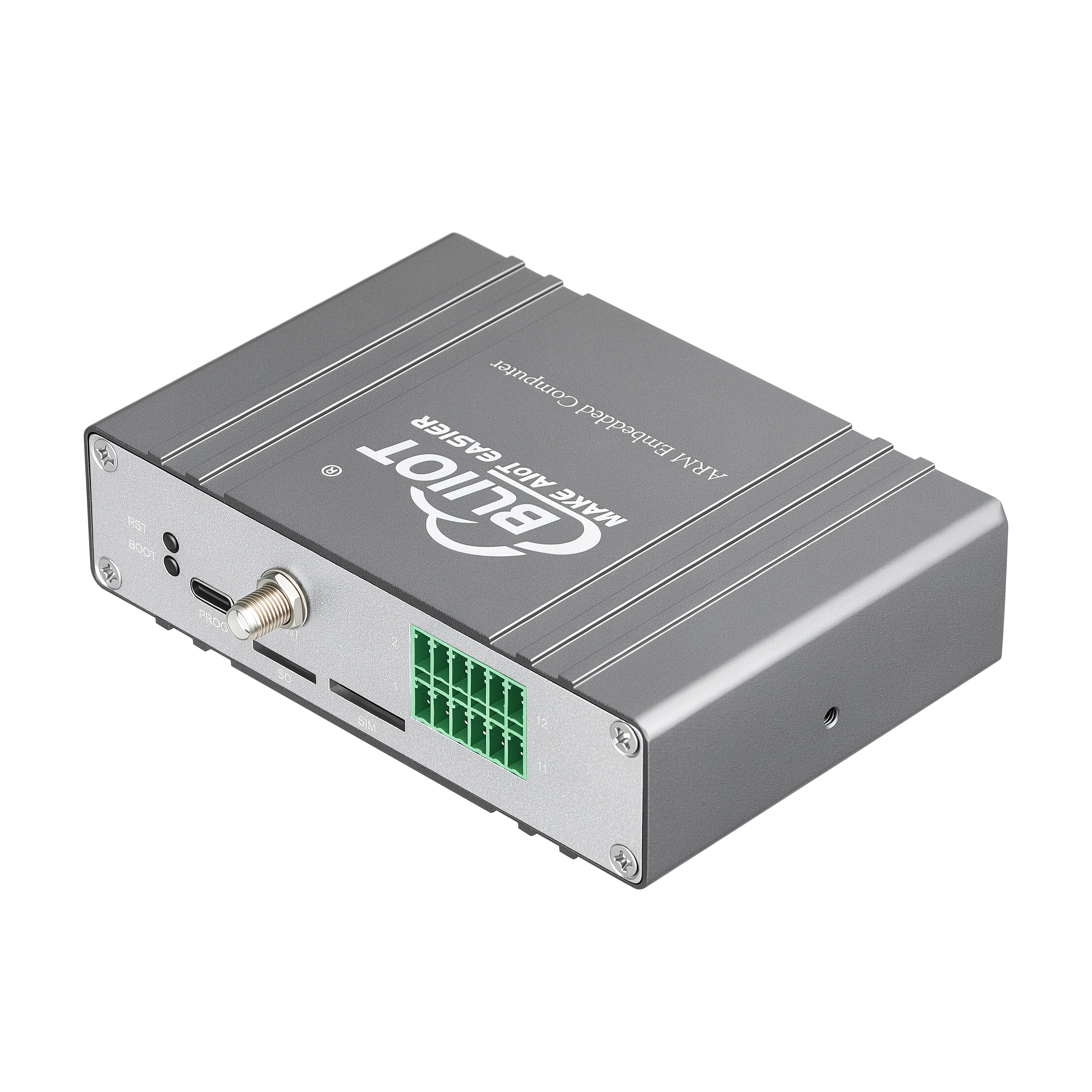

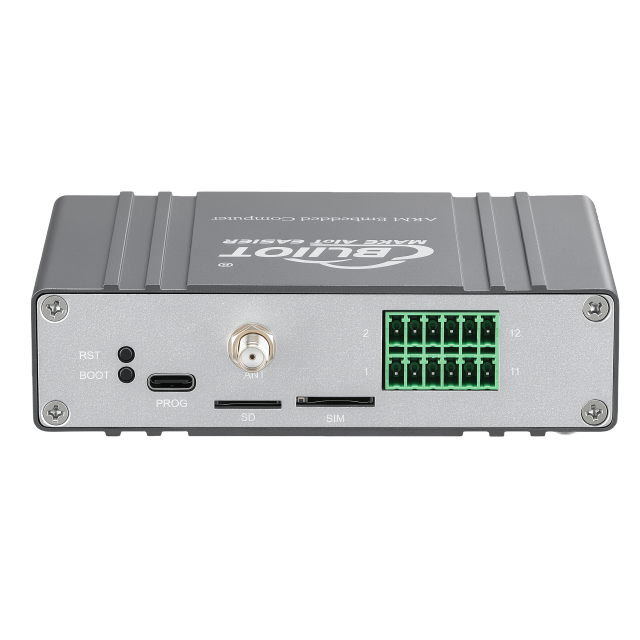

| Dimensions | Board: 100mm x 72mm x 20mm (PICO-ITX) Enclosure: 113.2mm x 76.4mm x 30.90mm (wall mount default, DIN35 rail optional) |
Pre-installed Ubuntu 20.04 (Linux 5.4) with full BSP and SDK
Open-source/commercial PLC runtime for logic control
Graphical gateway configuration and O&M tool
Secure remote O&M channel for debugging and maintenance
Industrial edge AI development workbench / Web IDE
Data acquisition and protocol conversion software
Low-code logic orchestration tool
Cross-platform GUI development for HMI
Application containerization and cluster management
Multi-language development support
Professional time-series data visualization
Lightweight Web SCADA for rapid configuration
Contact us for samples, pricing, and customization options.
