Name: Isolated 4CH RS485/RS232 Serial Port + 4CH DI + 4CH DO Module
Brand: Beilai Tech. Co., Ltd.
SKU: X23
Availability: InStock
Rating: 5 (1 reviews)

Isolated 4CH RS485/RS232 Serial Port + 4CH DI + 4CH DO Module

No.X23

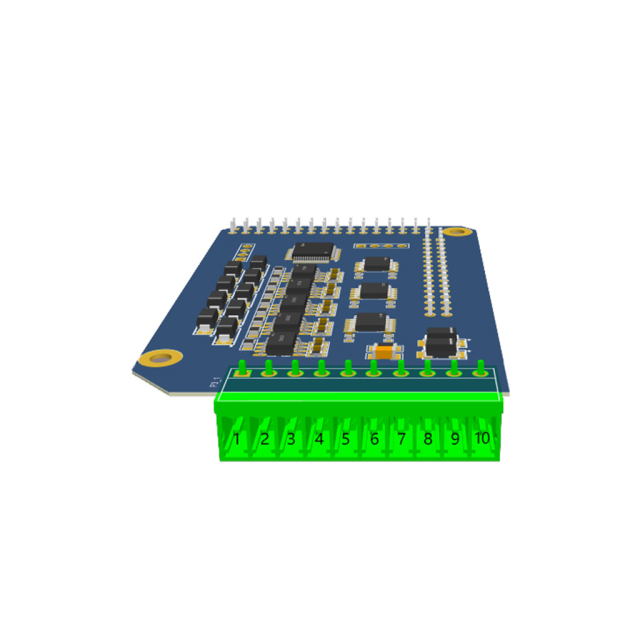

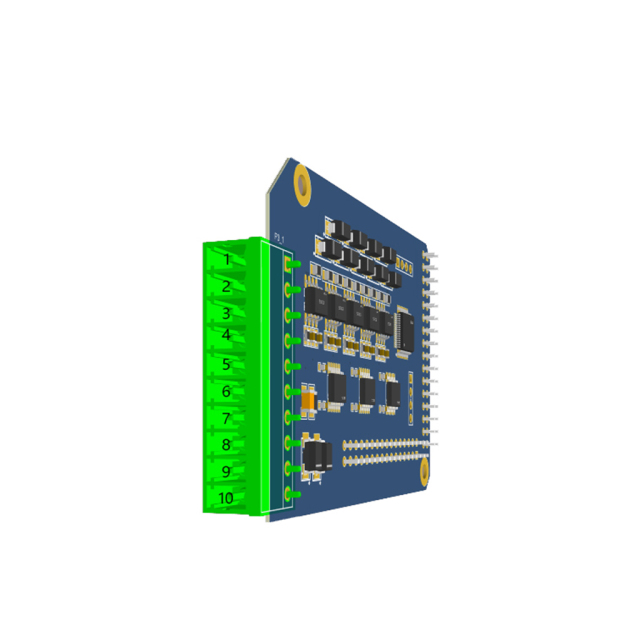

X23 is a 4-channel RS485/RS232, 4-channel DI, and 4-channel DO isolated module for ARMxy Embedded PCs. It supports baud rates from 2400bps to 230400bps with digital isolation. DI supports dry/wet contacts and PNP/NPN sensors, while DO supports NPN output only. With the X23, ARMxy PCs are ideal for industrial control, energy storage, smart factories, and IIoT.

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

ARMxy X Series I/O Board Selection
Model	RS232/RS485	CAN	DI	DO	GPIO	PIN
X10	2	×	×	×	×	6PIN
X11	×	2	×	×	×	6PIN
X12	1	1	×	×	×	6PIN
X13	×	×	2	2	×	6PIN
X14	×	×	4	×	×	6PIN
X15	×	×	×	4	×	6PIN
X16	×	×	×	×	4	6PIN
X20	4	×	×	×	×	10PIN
X21	3	1	×	×	×	10PIN
X22	2	2	×	×	×	10PIN
X23	4	×	4	4	×	20PIN
X24	3	1	4	4	×	20PIN
X25	2	2	4	4	×	20PIN
X26	2	×	8	4	×	20PIN
X27	1	1	8	4	×	20PIN
X28	2	×	12	×	×	20PIN
X29	1	1	12	×	×	20PIN
X30	×	×	×	×	16	20PIN

Isolated 4CH RS485/RS232 Serial Port + 4CH DI + 4CH DO Module
