Name: Isolated 2CH RS485/RS232 + 2CH CAN Bus + 4CH DI + 4CH DO Module
Brand: Beilai Tech. Co., Ltd.
SKU: X25
Availability: InStock
Rating: 5 (1 reviews)

Isolated 2CH RS485/RS232 + 2CH CAN Bus + 4CH DI + 4CH DO Module

No.X25

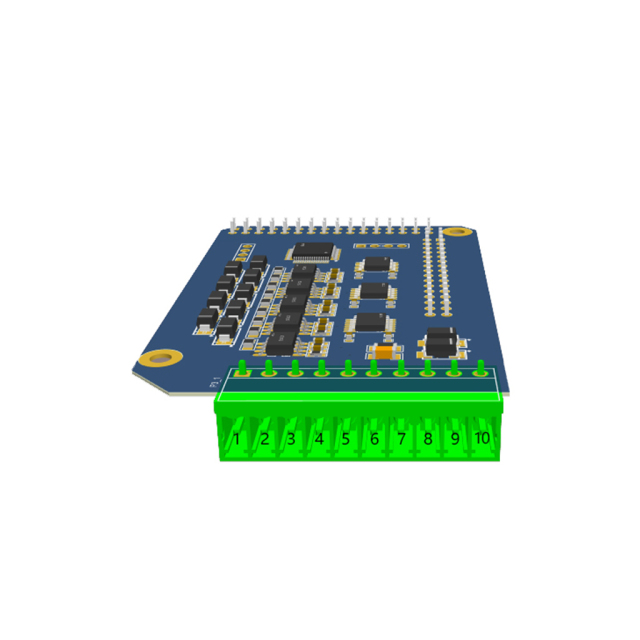

X25 is an isolated I/O for ARMxy Edge computers, featuring 2 RS485/RS232, 2 CAN, 4 DI, and 4 DO channels. It supports RS485/RS232 baud rates from 2400–230400bps and CAN rates from 10Kbps–1000Kbps. DI supports dry/wet contacts and PNP/NPN sensors, while DO supports NPN output only. With X25, ARMxy Edge computers are ideal for industrial control, energy storage, smart factories, and IIoT.

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

ARMxy X Series I/O Board Selection
Model	RS232/RS485	CAN	DI	DO	GPIO	PIN
X10	2	×	×	×	×	6PIN
X11	×	2	×	×	×	6PIN
X12	1	1	×	×	×	6PIN
X13	×	×	2	2	×	6PIN
X14	×	×	4	×	×	6PIN
X15	×	×	×	4	×	6PIN
X16	×	×	×	×	4	6PIN
X20	4	×	×	×	×	10PIN
X21	3	1	×	×	×	10PIN
X22	2	2	×	×	×	10PIN
X23	4	×	4	4	×	20PIN
X24	3	1	4	4	×	20PIN
X25	2	2	4	4	×	20PIN
X26	2	×	8	4	×	20PIN
X27	1	1	8	4	×	20PIN
X28	2	×	12	×	×	20PIN
X29	1	1	12	×	×	20PIN
X30	×	×	×	×	16	20PIN
