Name: Isolated 3CH RS485/RS232 + 1CH CAN Bus + 4CH DI + 4CH DO Module
Brand: Beilai Tech. Co., Ltd.
SKU: X24
Availability: InStock
Rating: 5 (1 reviews)

Isolated 3CH RS485/RS232 + 1CH CAN Bus + 4CH DI + 4CH DO Module

No.X24

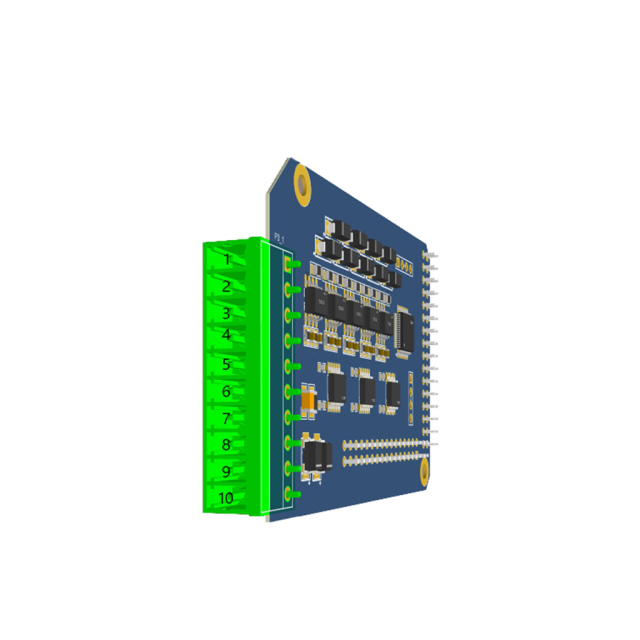

X24 is an isolated I/O module for ARMxy ARM IoT SBCs, featuring 3RS485/RS232, 1CAN, 4DI, and 4DO channels. It supports RS485/RS232 baud rates from 2400–230400bps and CAN rates from 10Kbps–1000Kbps. DI supports dry/wet contacts and PNP/NPN sensors, while DO supports NPN output only. With X24, ARMxy SBCs suit industrial control, energy storage, smart factories, and IIoT.

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

ARMxy X Series I/O Board Selection
Model	RS232/RS485	CAN	DI	DO	GPIO	PIN
X10	2	×	×	×	×	6PIN
X11	×	2	×	×	×	6PIN
X12	1	1	×	×	×	6PIN
X13	×	×	2	2	×	6PIN
X14	×	×	4	×	×	6PIN
X15	×	×	×	4	×	6PIN
X16	×	×	×	×	4	6PIN
X20	4	×	×	×	×	10PIN
X21	3	1	×	×	×	10PIN
X22	2	2	×	×	×	10PIN
X23	4	×	4	4	×	20PIN
X24	3	1	4	4	×	20PIN
X25	2	2	4	4	×	20PIN
X26	2	×	8	4	×	20PIN
X27	1	1	8	4	×	20PIN
X28	2	×	12	×	×	20PIN
X29	1	1	12	×	×	20PIN
X30	×	×	×	×	16	20PIN

Isolated 3CH RS485/RS232 + 1CH CAN Bus + 4CH DI + 4CH DO Module
