Name: 1CH Isolated RS485/RS232 and 1CH CAN Bus Port Module
Brand: Beilai Tech. Co., Ltd.
SKU: X12
Availability: InStock
Rating: 5 (1 reviews)

1CH Isolated RS485/RS232 and 1CH CAN Bus Port Module

No.X12

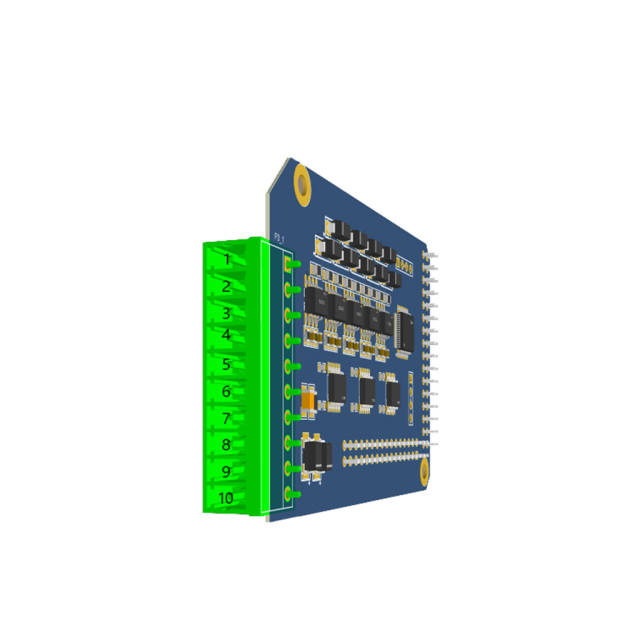

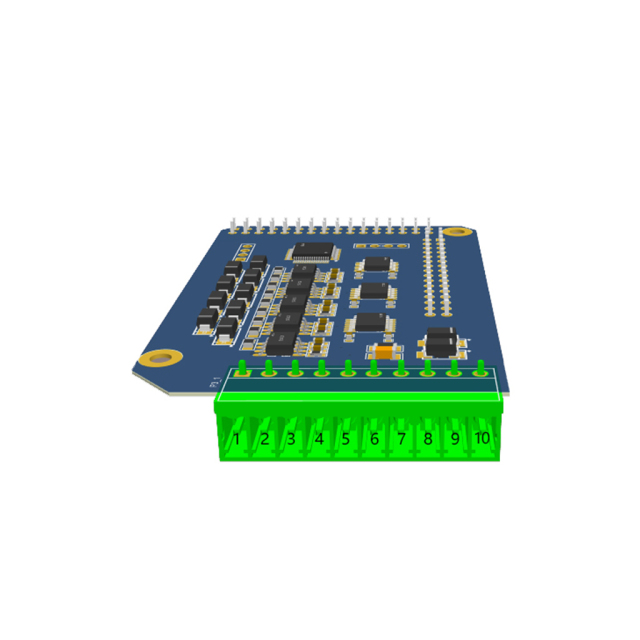

X12 is a 1-channel serial and 1-channel CAN Bus module for ARMxy ARM embedded industrial computers. It features electrical isolation, supports RS485/RS232 with 2400–230400bps and full/half-duplex modes, and CAN with 10 Kbps to 1 Mbps. Designed for stable performance in harsh environments, it is widely used in industrial automation and control systems.

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

ARMxy X Series I/O Board Selection
Model	RS232/RS485	CAN	DI	DO	GPIO	PIN
X10	2	×	×	×	×	6PIN
X11	×	2	×	×	×	6PIN
X12	1	1	×	×	×	6PIN
X13	×	×	2	2	×	6PIN
X14	×	×	4	×	×	6PIN
X15	×	×	×	4	×	6PIN
X16	×	×	×	×	4	6PIN
X20	4	×	×	×	×	10PIN
X21	3	1	×	×	×	10PIN
X22	2	2	×	×	×	10PIN
X23	4	×	4	4	×	20PIN
X24	3	1	4	4	×	20PIN
X25	2	2	4	4	×	20PIN
X26	2	×	8	4	×	20PIN
X27	1	1	8	4	×	20PIN
X28	2	×	12	×	×	20PIN
X29	1	1	12	×	×	20PIN
X30	×	×	×	×	16	20PIN

1CH Isolated RS485/RS232 and 1CH CAN Bus Port Module
