Item |
Parameters |
Description |
|

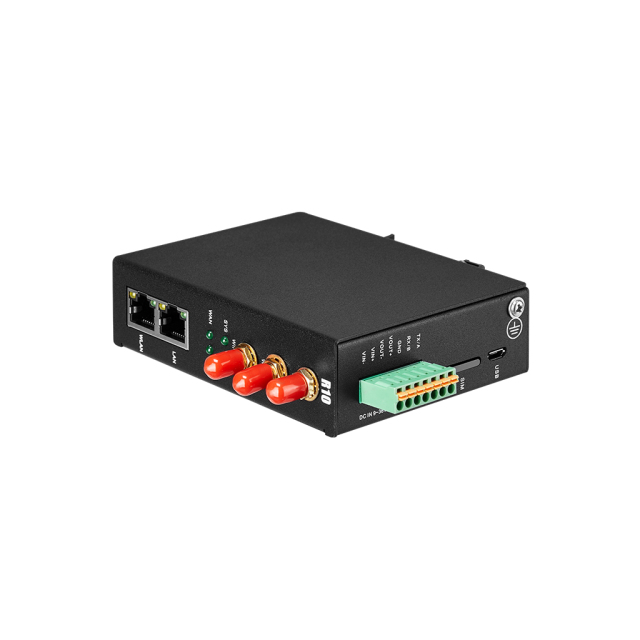

Power Supply |
Input voltage |
9~36VDC |
|
Input current |
Normal: 130mA@12V. Maximum: 800mA@12V |
|
|
Connection |
3.5mm wiring terminal |
|
|
Protection |
Anti-reverse connection Protection |
|
|

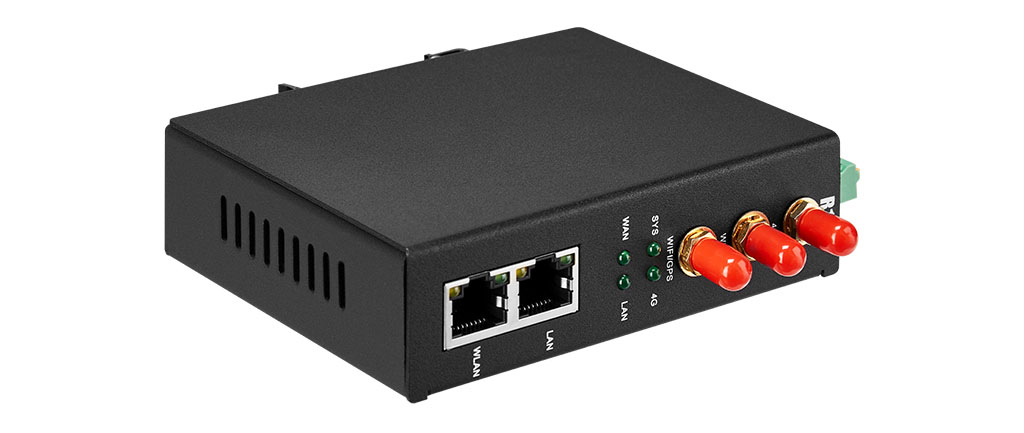

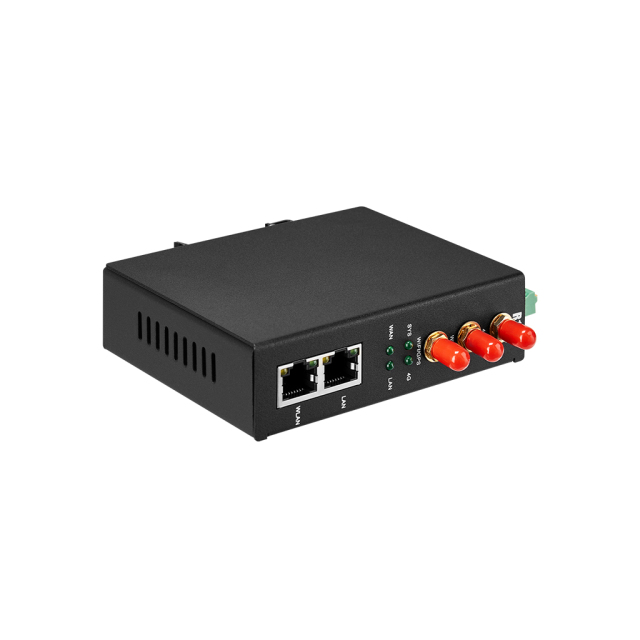

WAN |
Qty |
1 |
|
Interface Spec |
RJ45 interface, 10M/100Mbps, adaptive MDI/MDIX |
|
|
Protection |
ESD ±30kV (contact), ±30kV (air) EFT 40A (5/50ns) Lightning 24A (8/20µs) |
|
|
LAN (non-POE） |
Qty |
1 |
|
Interface Spec |
RJ45 interface, 10M/100Mbps, adaptive MDI/MDIX |
|
|
Protection |
ESD ±30kV (contact), ±30kV (air) EFT 40A (5/50ns) Lightning 24A (8/20µs) |
|
|
Serial Port |
Qty |
1 |
|
Type |
1 Channel RS485 or RS232 |
|
|
Baud rate |
1200，2400，4800，9600，14400，19200，38400，57600，115200，230400 |
|
|
Data Bit |
5，6，7，8 |
|
|
Parity |
None, Even, Odd |
|
|
Stop Bit |
1,2 |
|
|
Working mode |
Transparent transmission, Modbus RTU to TCP, Modbus slave, Modbus master ( R10A support but R10 can’t) |
|
|
Protection |
ESD contact: 8KV Surge: 4KV (8/20us) ESD ±8kV (contact), ±15kV (air) EFT 4KV, 40A (5/50ns) |
|
|
WIFI |
Antenna Port qty |
2 |
|
Antenna type |
SMA hole type |
|
|
Protocol |
802.11a/b/g/n (mixed) |
|
|
Mode |
AP mode, client mode |
|
|
Frequency |
2.4G |
|
|
Channel |
Channel 1 - 13 |
|
|
Security |
Open, WPA, WPA2 |
|
|
Encryption |
AES, TKIP, TKIPAES |
|
|
Connection number |
16(Max) |
|
|
Speed |
300Mbps(Max) |
|
|
Transmit Distance |
Max. 20 meters in open space where there is no obstruction |
|
|
SSID Broadcast Switch |
Support |
|
|
Cellular Network |
Antenna Port Qty |
1 |
|
Antenna Port Type |
SMA hole type |
|
|
4G(L-E) |
GSM/EDGE：900,1800MHz WCDMA：B1,B5,B8 FDD：B1,B3,B5,B7,B8,B20 TDD：B38,B40,B41 |
|
|
4G(L- AU) |
GSM/EDGE：850,900,1800MHz WCDMA：B1,B2,B5,B8 FDD：B1,B2,B3,B4,B5,B7,B8,B28 TDD：B40 |
|
|
4G(L-A) |
WCDMA：B2,B4,B5 FDD：B2,B4,B12 |
|
|
4G(L-V) |
FDD：B4,B13 |
|
|
4G(L-J) |
WCDMA：B1,B3,B8,B18,B19,B26 FDD：B2,B4,B12 TDD: B41 |
|
|
4G(L-CE) |
GSM/EDGE：900,1800MHz WCDMA：B1,B8 TD-SCDMA：B34,B39 FDD：B1,B3,B8 TDD：B38,B39,B40,B41 |
|
|
SIM(R10A-W without SIM) |
Qty |
1 |
|
Interface Spec |
Drawer interface, support 1.8V/3V SIM/UIM card (NANO) |
|
|
Protection |
Built-in 15KV ESD protection |
|
|
GPS(R10A-W without GPS) |
Antenna qty |
1 |
|
Antenna type |
SMA hole type |
|
|
Tracking Sensitivity |
> -148 dBm |
|
|
Horizontal Accuracy |
2.5m |
|
|
Protocol |
NMEA-0183 V2.3 |
|
|

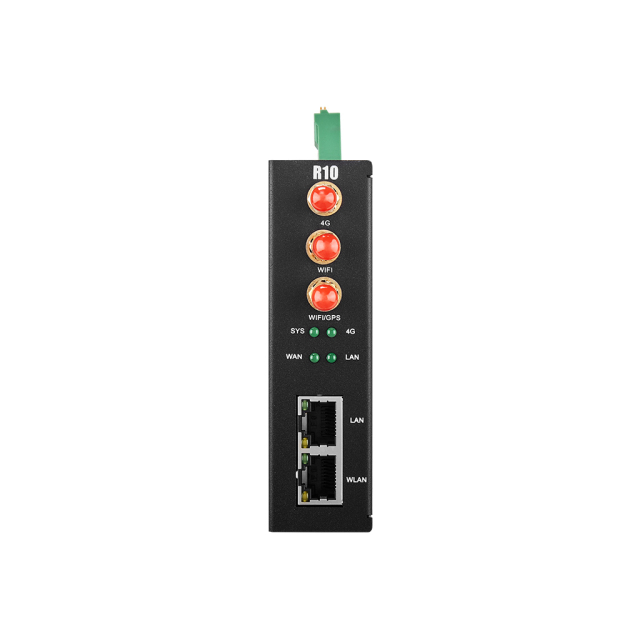

Indicator light |
SYS |
System running indicator (blinking for 2S and then off after normal operation) |
|
4G(R10A-W without 4G) |
4G cellular operating status indicator ( when SIM registered successfully, this indicator always on ) |
|
|
WAN |
WAN status indicator |
|
|
LAN |
LAN status indicator |
|
|
System |
CPU |
MIPS CPU, main frequency 580Mhz |
|
Storage |
128Mbits SPI Flash |
|
|
RAM |
1024Mbits DDR2 |
|
|
Software |
Network Protocol |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, SSH2, DDNS |
|
VPN |
IPsec, OpenVPN, L2TP |
|
|
Firewall |
DMZ, DoS defense, IP packet, domain name and MAC address filtering, port mapping, access control |
|
|
Remote Management |
Supports web remote configuration |
|
|
System Log |
Support |
|
|
Firmware Update |
Supports serial port local TFTP and Web upgrade |
|
|
Certificate |
EMI |
EN 55022: 2006/A1: 2007 |
|
EMS |
IEC(EN)61000-4-2(ESD) IEC(EN)61000-4-3(RS) IEC(EN)61000-4-4(EFT) IEC(EN)61000-4-5(Surge) IEC(EN)61000-4-6(CS) IEC(EN)61000-4-8 |
|
|
Others |
CE, FCC, ROHS, 3C |
|
|
Working Environment |
Working temperature |
-20～+65℃ |
|
Storage temperature |
-40～+85℃ |
|
|
Humidity |
5 ~ 95%RH (non-condensation) |
|
|

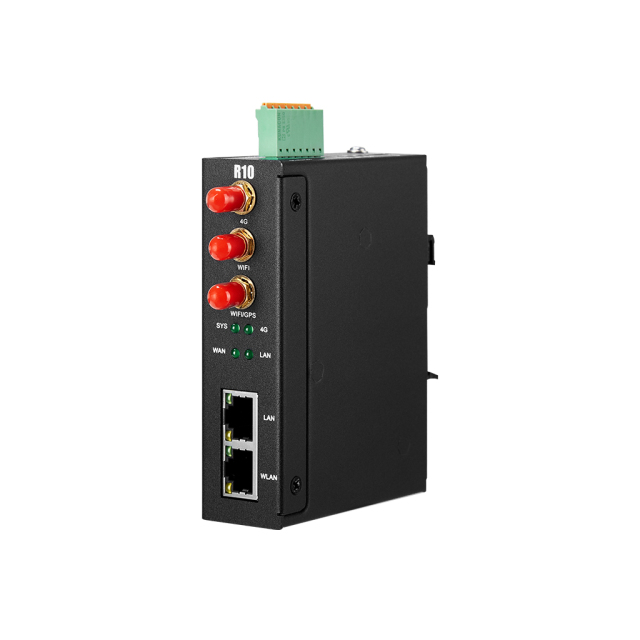

Others |
Enclosure |
Metal material |
|
Size |
Height 110mm * Length 83mm * Width 30mm |
|
|
IP level |
IP30 |
|
|
Net weight |
300g |
|
|

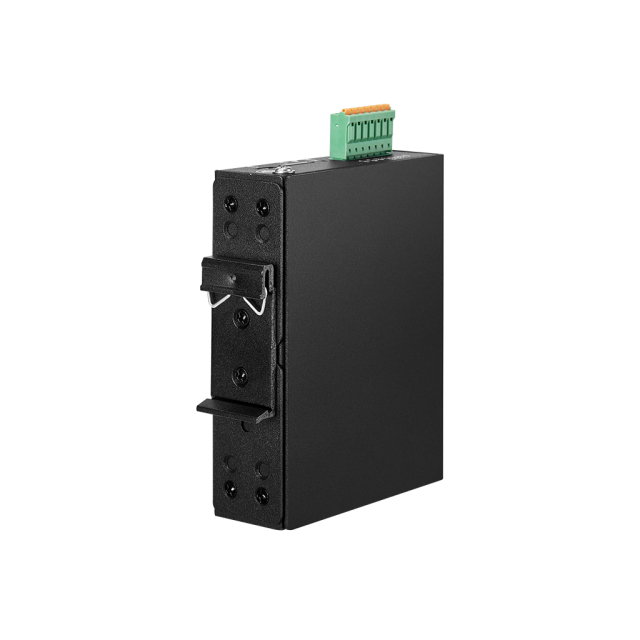

Installation |
Wall mounted, DIN rail |
|
Model |
SIM card |
WiFi mode |
RS 232 |
RS 485 |
GPS |
Micro USB |
Extend function |
|
R10 |
1 |
2 |
Multiplexing |
optional |
support |
Modbus Slave/MQTT |
|
|
R10A |
1 |
2 |
Multiplexing |
optional |
support |
Modbus Master /Slave /MQTT |
|
|
R10A-W |
X |
2 |
Multiplexing |
X |
support |
Modbus Master /Slave /MQTT |
|
