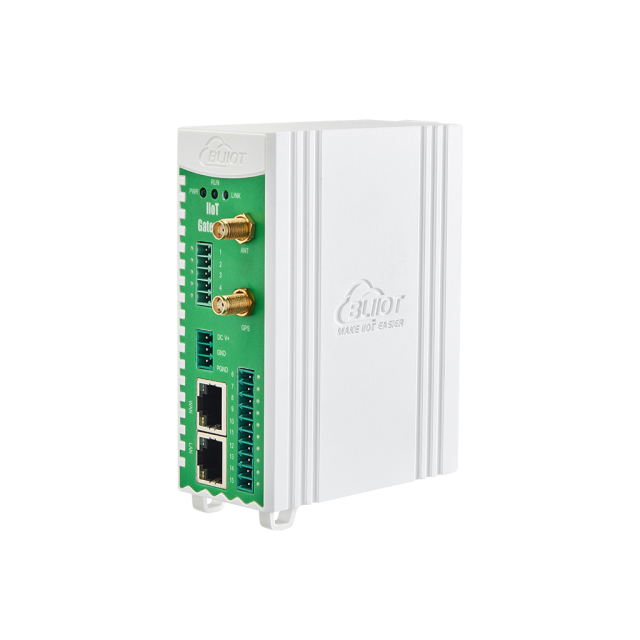

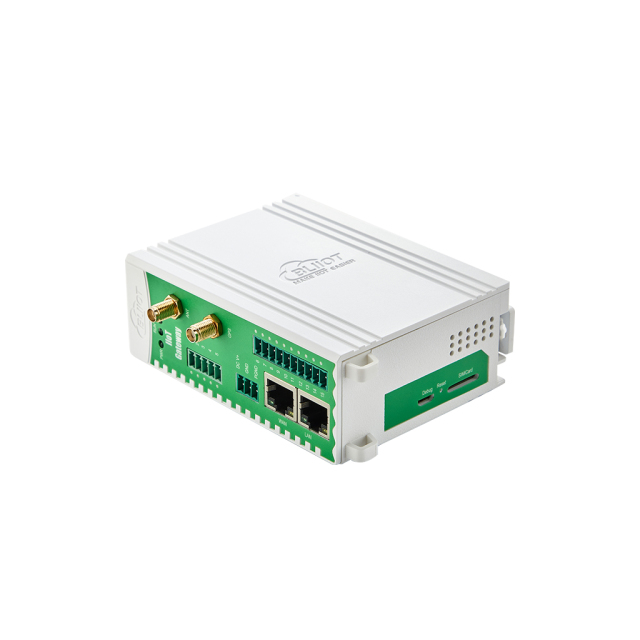

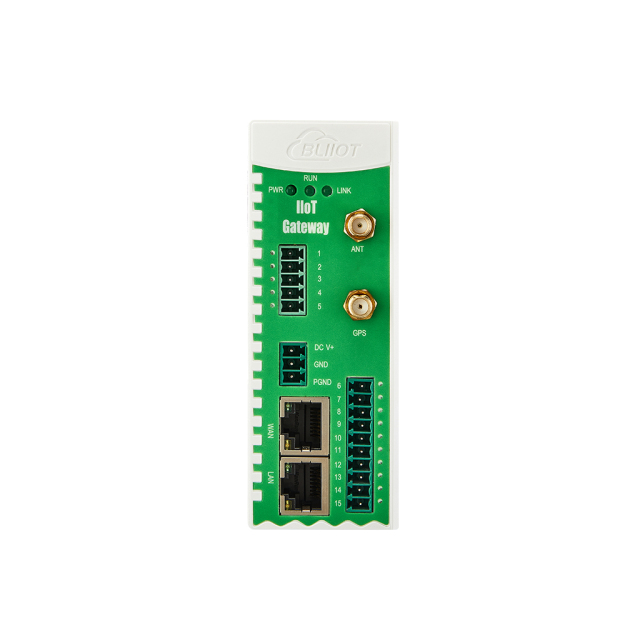

BL120 Series · 2 or 6 serial ports · Downlink: Modbus RTU Master, Modbus TCP Master · Uplink: Modbus RTU, Modbus TCP
Choose BL120 for cost‑efficient small zones, or BL120P for high‑density data acquisition across large facilities. Both support optional 4G, WiFi, and GPS modules.
| Feature | BL120 (Standard) | BL120P (High‑Performance) |
|---|---|---|
| Serial Channels | 2 × RS485/RS232 | 6 × RS485/RS232 |
| Max. Devices | 10 | 50 |
| Data Points | 512 | 4,000 |
| Downlink Protocols | Modbus RTU Master · Modbus TCP Master | Modbus RTU Master · Modbus TCP Master |
| Uplink Protocols | Modbus RTU · Modbus TCP | Modbus RTU · Modbus TCP |
| 4G (Optional) | ✓ L‑E / L‑A / L‑AU / CAT‑1 | ✓ L‑E / L‑A / L‑AU / CAT‑1 |
| WiFi (Optional) | ✓ 802.11a/b/g/n | ✓ 802.11a/b/g/n |
| GPS (Optional) | ✓ NMEA‑0183 | ✓ NMEA‑0183 |
| Dimensions (L×W×H) | 30 × 83 × 110 mm | 40 × 83 × 110 mm |
| Weight | 133 g | 171 g |
| Best Fit | Small Buildings / Zones | Large Facilities / Campuses |
Engineered for universal building-to-industrial integration with seamless Modbus connectivity.
Downlink Modbus RTU Master and Modbus TCP Master — uplink Modbus RTU and Modbus TCP. One gateway for all Modbus devices.
Replace multiple proprietary gateways with a single universal gateway — reduce hardware costs, cabling complexity, and maintenance overhead.
4G, WiFi, or Ethernet with wired priority and automatic 4G failover — always online. Optional GPS for asset tracking.
9–36V DC wide input, reverse‑polarity protection, -40~85°C operation, EMC Level 3 (ESD/EFT/Surge), 2KV isolation.

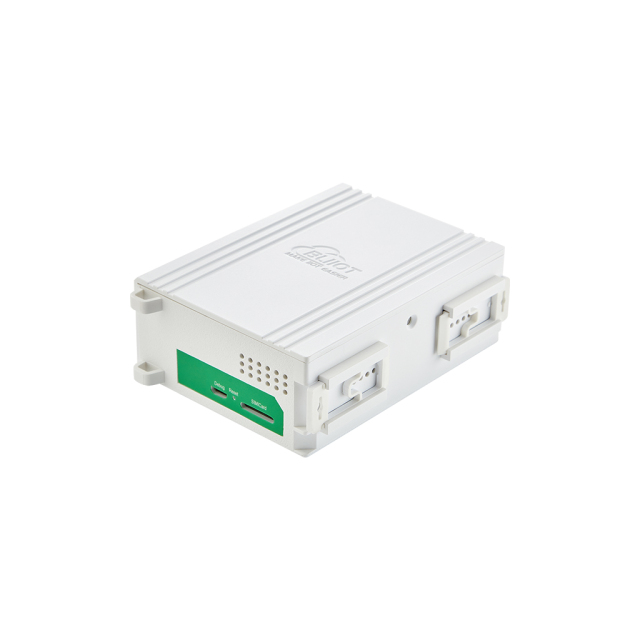

DIN35 rail or wall mounting with patented rail‑clip — quick installation in electrical panels, chiller plants, and equipment rooms.
Supports Modbus RTU to Modbus TCP, Modbus TCP to Modbus RTU, and transparent transmission.
Click a tab below for detailed module parameters. Both models share the same core platform.
Widely used in industrial automation, building automation, energy management, and more.
Connect traditional RS485/RS232 serial devices to industrial Ethernet for remote monitoring and centralized management.
Establish secure isolation between different Modbus TCP networks or extend network coverage.
Consolidate multiple Modbus RTU subnets distributed across different field locations into a unified monitoring platform.
Simultaneously access devices across different Modbus networks through a single Modbus master, simplifying system architecture.
