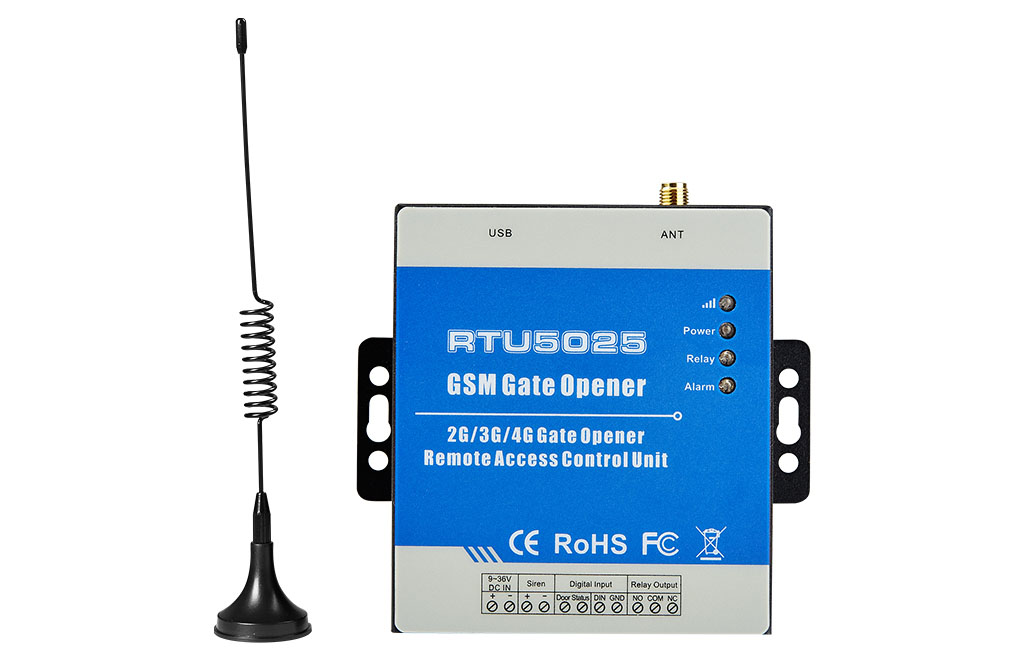

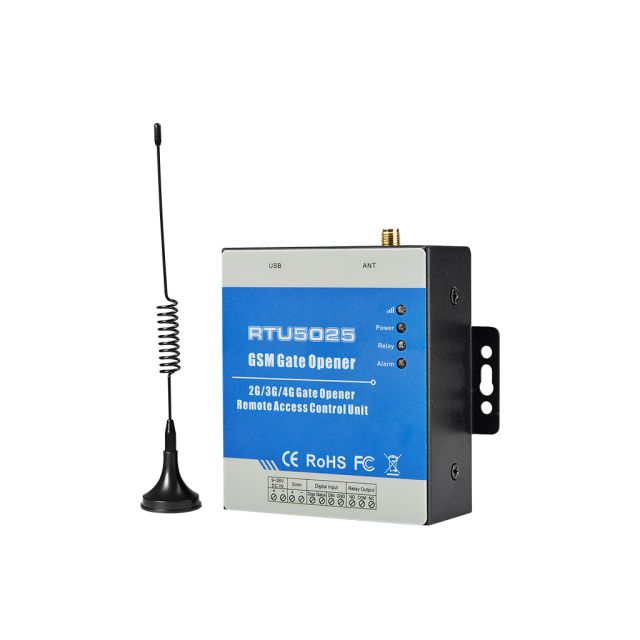

The RTU5025 gate opener can be used for remote control swing or sliding gates and doors or switching devices with authorized access management(Caller-ID), it is widely used in door access, gate control, remote switching, or car parking systems.
The RTU5025 can be used in places which require to turn ON/OFF your system, machines, equipment remotely with a FREE phone call from your mobile or fixed line telephone.
Android APP on Google Play available, PC software for programming via USB, remote server system over TCP/IP, and connecting cloud platform via MQTT supported, users can easily download the access historical data anywhere anytime.
Key Features
Typical Application Scenarios
Technical Specifications
|
GSM Frequency |
Quad-band 850/900/1800/1900MHz |
|
3G/4G |
Optional: WCDMA/TDD-LTE/FDD-LTE |
|
Digital Input |
2CH NC/NO dry contact One channel fixed for access control |
|
Digital Output |
1 Relay, 3A/240VAC |
|
Siren Output |
12VDC/1A |
|
DC Power supply |
9~36VDC/2A |
|
Power consumption |
12V input Max. 50mA/Average 25mA |
|
SIM Card |
Supporting 3V SIM Card |
|
Antenna |
50 Ω SMA Antenna interface |
|
Temperature range |
-20~+60 °C |
|
Humidity range |
Relative humidity 90% |
|
Backup battery |
3.7V/900mAH |
|
Dimension |
W88mm*D78mm*H32mm |
|
Net Weight |
260g |
Model Selection
|
Relay Switch,Gate Opener(RTU5024/RTU5034/RTU5025) |
||||||||
|
Model |
Digital Input |
Relay Output |
Function |
|||||
|
RTU5024 |
X |
1 |
1.200 authorized phone numbers can be configured at the specified time; |
|||||
|
RTU5034 |
X |
1 |
Same function as RTU5024, the difference is that RTU5024 is metal case and RTU5034 is plastic case. |
|||||
|
RTU5025 |
2 |
1 |
1.3000 authorized phone numbers can be configured at the specified time； |
|||||
