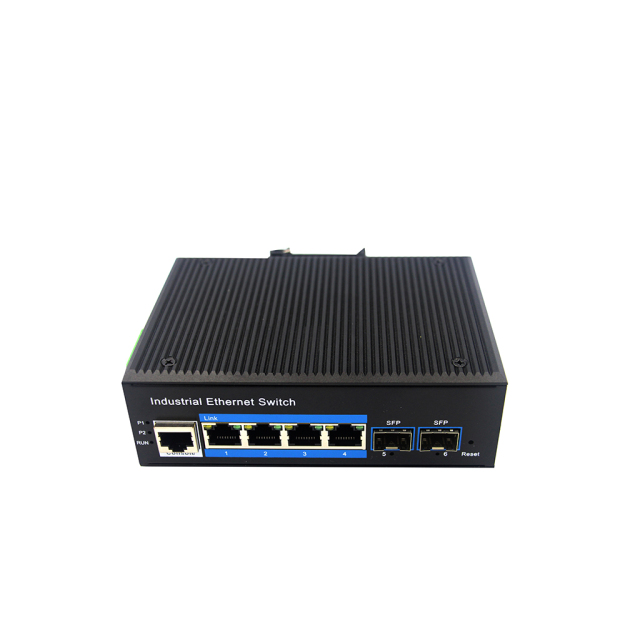

BL167GMP-SFP Specification |
||
|
Power |
Power Input |
DC48-57V（Dual Power Redundant Backup） |
|
Access terminal |
Phoenix terminal |
|
|
Dual power redundancy |
Support |
|
|
Built-in overcurrent 4.0A protection |
Support |
|
|
Reverse connection protection |
Support |
|
|
LED Indicators |
Power indicator |
PWR |
|
Interface indicator |
Electric port,Fiber port（Link/ACT） |
|
|
RJ45 Ports |
RJ45 specification |
4xRJ45,10/100/1000BaseT（X）automatic detection,MDI/MDI-X adaptive |
|
Standards |
IEEE802.3-10BaseT、IEEE802.3u-100BaseTX/100Base-FX、IEEE802.3x-Flow Control、IEEE802.3z-1000BaseLX、IEEE802.3ab-1000BaseTX、IEEE802.1ab、IEEE802.1D-Spanning Tree Protocoll、IEEE802.1w-Rapid Spanning Tree Protocoll、IEEE802.1Q -VLAN Tagging、 IEEE802.1p -Class of Service、IEEE802.1X-Port Based Network Access Control |
|
|
Fiber Ports |
Fiber ports specification |
2x1000BaseFX ports（SFP） |
|
POE Specification |
POE standard |
IEEE802.3af/ IEEE802.3at |
|
POE ports |
1-4 port support POE |
|
|
Power Output |
Max. 15.4W (IEEE 802.3af) Max. 30W (IEEE 802.3at) PoE port Auto detect AF/AT devices |
|
|
Ethernet Software Features |
Network security |
Support IEEE 802.1x, HTTP, RADIUS, MAC address binding |
|
Management and maintenance |
Support Console, Telnet and WEB management modes, and support SNMP v1/v2/v3 |
|
|
Redundancy technology |
Supports STP, RSTP, MSTP, and ERPS |
|
|
Multicast technology |
IGMP snooping、Support static multicast |
|
|
Exchange function |
Support port speed limit support port aggregation support port flow control. Support port VLAN, IEEE 802.1Q VLAN. Support broadcast storm suppression. |
|
|
Switch properties |
Transmission mode |
Store-and-forward |
|
Packet Buffer Memory |
12Mbit |
|
|
Switching delay |
<10μs |
|
|
MAC Address Table |
8K |
|
|
Bandwidth |
38G |
|
|
Power dissipation |
<5W |
|
|
Certification |
MTBF |
300,000 hours |
|
EMI |
FCC Part 15 Subpart B Class A，EN 55022 Class A |
|
|
EMC |
IEC(EN)61000-4-2(ESD)：±6kV(contact),±8kV(air) |
|
|
IEC(EN)61000-4-3(RS)：10V/m(80～1000MHz) |
||
|
IEC(EN)61000-4-4(EFT)：±2kV CM//±1kV DM |
||
|
IEC(EN)61000-4-5(Surge)：±2kV CM//±1kV DM |
||
|
IEC(EN)61000-4-6：3V(10kHz～150kHz)，10V(150kHz～80MHz) |
||
|
IEC(EN)61000-4-16：30V cont. 300V,1s |
||
|
IEC(EN )61000-4-8 |
||
|
Shock ：IEC 60068-2-27 |
||
|
Freefall ：IEC 60068-2-32 |
||
|
Vibration ：IEC 60068-2-6 |
||
|
Working Environment |
Working temperature |
-40～75 ℃ |
|
Storage temperature |
-40～80 ℃ |
|
|
Relative Humidity |
5%～95%( no condensation） |
|
|
Mechanical properties |
Shell |
Metal shell |
|
Dimensions |
143.7x 104x 47.7mm |
|
|
Protection type |
IP40 |
|
|
Weight |
0.64Kg |
|
|
Installation method |
DIN rail |
|
|
Heat dissipation mode |
Natural cooling, no fan |
|
|
Warranty |
Warranty period |
1 year |
