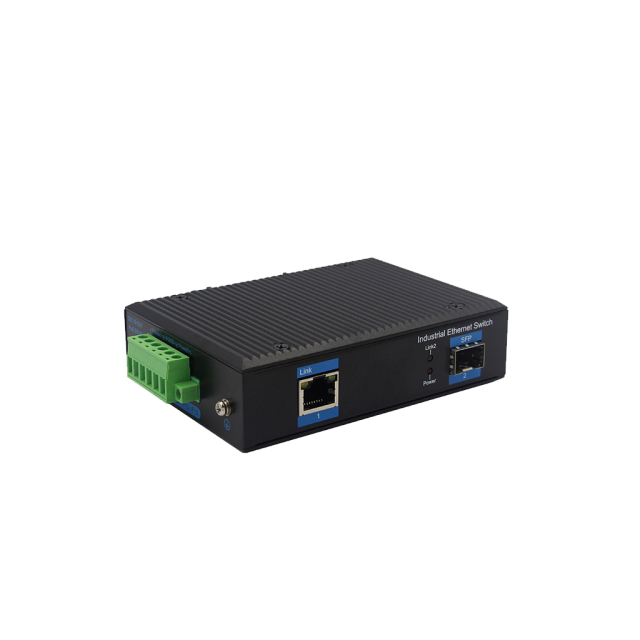

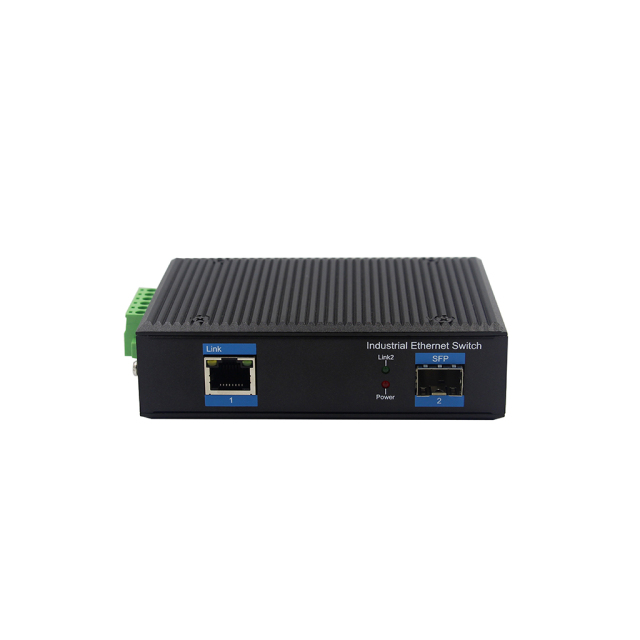

BL164G Specification |
||
|
Power |
Power Input |
DC12-52V（Dual Power Redundant Backup） |
|
Access terminal |
Phoenix terminal |
|
|
Dual power redundancy |
Support |
|
|
Built-in overcurrent 4.0A protection |
Support |
|
|
Reverse connection protection |
Support |
|
|
LED Indicators |
Power indicator |
PWR |
|
Interface indicator |
Electric port,Fiber port（Link/ACT） |
|
|
RJ45 Ports |
RJ45 specification |
1xRJ45,10/100/1000BaseT（X）automatic detection,MDI/MDI-X adaptive |
|
Standards |
IEEE802.310BASE-TIEEE802.3i；10Base-T；IEEE802.3u；100Base-TX/FX；IEEE802.3ab1000Base-T； IEEE802.3z1000Base-X；IEEE802.3x |
|
|
Fiber Ports |
Fiber ports specification |
1x1000BaseFX ports（SC/FC/ST/SFP optional） |
|
Switch properties |
Transmission mode |
Store-and-forward |
|
Packet Buffer Memory |
1.2Mbit |
|
|
Switching delay |
<10μs |
|
|
MAC Address Table |
2K |
|
|
Bandwidth |
14G |
|
|
Power dissipation |
<3W |
|
|
Certification |
MTBF |
300,000 hours |
|
EMI |
FCC Part 15 Subpart B Class A，EN 55022 Class A |
|
|
EMC |
IEC(EN)61000-4-2(ESD)：±6kV(contact),±8kV(air) |
|
|
IEC(EN)61000-4-3(RS)：10V/m(80～1000MHz) |
||
|
IEC(EN)61000-4-4(EFT)：±2kV CM//±1kV DM |
||
|
IEC(EN)61000-4-5(Surge)：±2kV CM//±1kV DM |
||
|
IEC(EN)61000-4-6：3V(10kHz～150kHz)，10V(150kHz～80MHz) |
||
|
IEC(EN)61000-4-16：30V cont. 300V,1s |
||
|
IEC(EN )61000-4-8 |
||
|
Shock ：IEC 60068-2-27 |
||
|
Freefall ：IEC 60068-2-32 |
||
|
Vibration ：IEC 60068-2-6 |
||
|
Working Environment |
Working temperature |
-40～75 ℃ |
|
Storage temperature |
-40～80 ℃ |
|
|
Relative Humidity |
5%～95%( no condensation） |
|
|
Mechanical properties |
Shell |
Metal shell |
|
Dimensions |
118x 86x 39mm |
|
|
Protection type |
IP40 |
|
|
Weight |
0.36Kg |
|
|

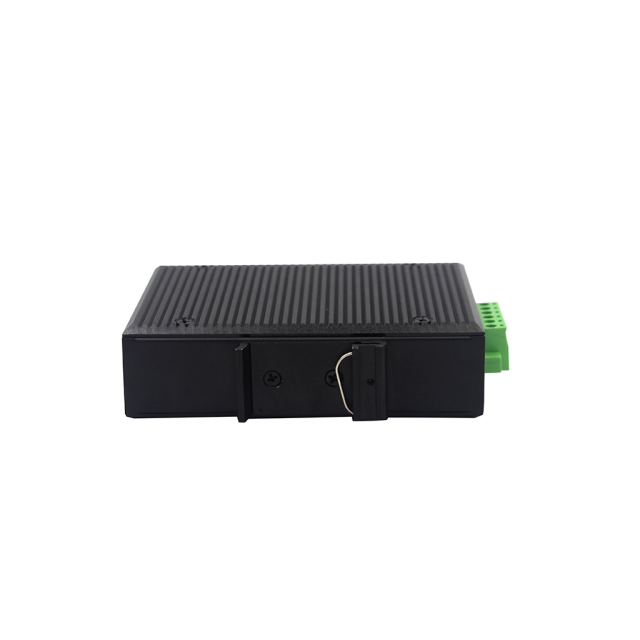

Installation method |
DIN rail |
|
|
Heat dissipation mode |
Natural cooling, no fan |
|
|
Warranty |
Warranty period |
1 year |
