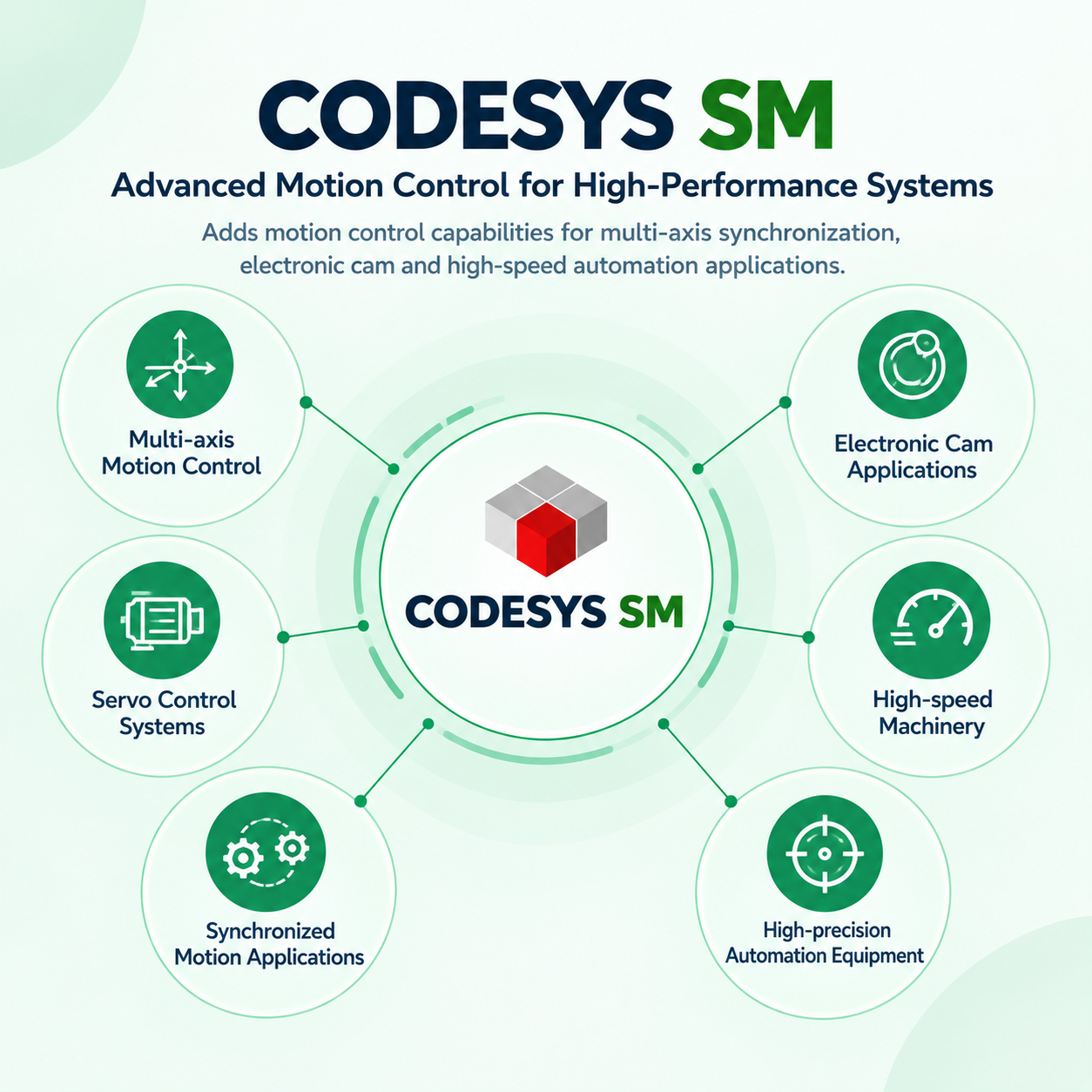

CODESYS SM adds SoftMotion capabilities to the Pro version for advanced motion control. It supports multi-axis synchronous interpolation and electronic cam functions for high-speed and high-precision automation systems.
Extends the Pro version with SoftMotion capabilities — from multi-axis interpolation to electronic cam, all within one engineering environment.
Adds SoftMotion capabilities on top of the CODESYS Pro version, bringing advanced motion control directly into the standard IEC 61131-3 programming environment without a separate toolchain.
Supports coordinated motion across multiple axes with synchronous interpolation, enabling precise path control for complex multi-axis machinery and coordinated motion sequences.
Electronic cam support replaces mechanical cams with software-defined profiles, allowing flexible cam curves, easy changeover, and precise synchronization between master and slave axes.
Designed for high-speed automation systems, delivering fast cycle times and smooth motion profiles for machinery that demands rapid, repeatable axis movements.
Precise axis positioning and synchronized motion for high-precision automation equipment, supporting applications where accuracy and repeatability are critical.
Integrates with servo control systems through the existing fieldbus infrastructure of CODESYS Pro, including EtherCAT-connected servo drives and motion devices.
Wherever coordinated, high-speed, and high-precision motion is required, CODESYS SM provides the software foundation.
Coordinated control of multiple synchronized axes
Integrated servo drive control and motion sequencing
Master-slave synchronization and coordinated motion
Software-defined cam profiles replacing mechanical cams
Fast cycle times and smooth high-speed axis movements
Accurate positioning and repeatable motion control
Advanced motion control as a natural extension of the CODESYS Pro environment.
| Item | Description |
|---|---|
| Base Version | CODESYS Pro with added SoftMotion capabilities |
| Motion Control | Multi-axis motion control and synchronous interpolation |
| Cam Functions | Electronic cam profiles with master-slave synchronization |
| Axes | Multi-axis coordinated motion for complex machinery |
| Servo Integration | Servo control systems via the existing fieldbus infrastructure |
| Performance Focus | High-speed cycles and high-precision positioning |
| Target Applications | High-speed machinery, high-precision automation equipment, synchronized motion systems |
