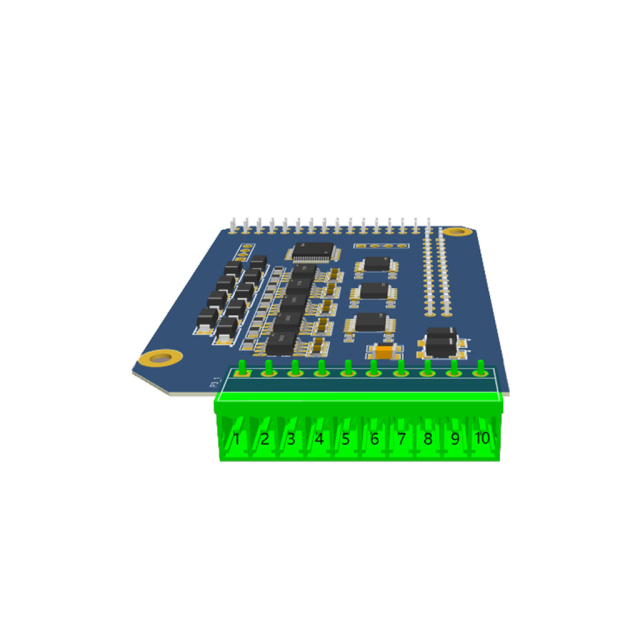

The X11 is an industrial-grade 2-channel CAN Bus port module specifically designed to expand the capabilities of the ARMxy series arm based industrial pc. It features electrical isolation and provides 2-channel CAN Bus interfaces, significantly enhancing the performance of the ARMxy series arm based industrial pc.
X11 CAN Bus serial port module supports baud rates from 10kbps-1Mbps and Half-duplex communication modes. It can operate stably in harsh environments and is widely used in industrial automation and control systems.
|
ARMxy X Series I/O Board Selection |
||||||
|
Model |
RS232/RS485 |
CAN |
DI |
DO |
GPIO |
PIN |
|
X10 |
2 |
× |
× |
× |
× |
6PIN |
|
X11 |
× |
2 |
× |
× |
× |
6PIN |
|
X12 |
1 |
1 |
× |
× |
× |
6PIN |
|
X13 |
× |
× |
2 |
2 |
× |
6PIN |
|
X14 |
× |
× |
4 |
× |
× |
6PIN |
|
X15 |
× |
× |
× |
4 |
× |
6PIN |
|
X16 |
× |
× |
× |
× |
4 |
6PIN |
|
X20 |
4 |
× |
× |
× |
× |
10PIN |
|
X21 |
3 |
1 |
× |
× |
× |
10PIN |
|
X22 |
2 |
2 |
× |
× |
× |
10PIN |
|
X23 |
4 |
× |
4 |
4 |
× |
20PIN |
|
X24 |
3 |
1 |
4 |
4 |
× |
20PIN |
|
X25 |
2 |
2 |
4 |
4 |
× |
20PIN |
|
X26 |
2 |
× |
8 |
4 |
× |
20PIN |
|
X27 |
1 |
1 |
8 |
4 |
× |
20PIN |
|
X28 |
2 |
× |
12 |
× |
× |
20PIN |
|
X29 |
1 |
1 |
12 |
× |
× |
20PIN |
|
X30 |
× |
× |
× |
× |
16 |
20PIN |
