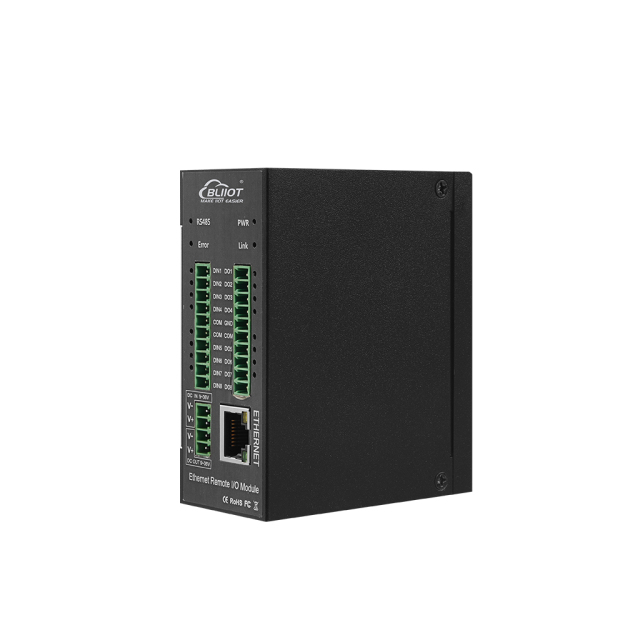

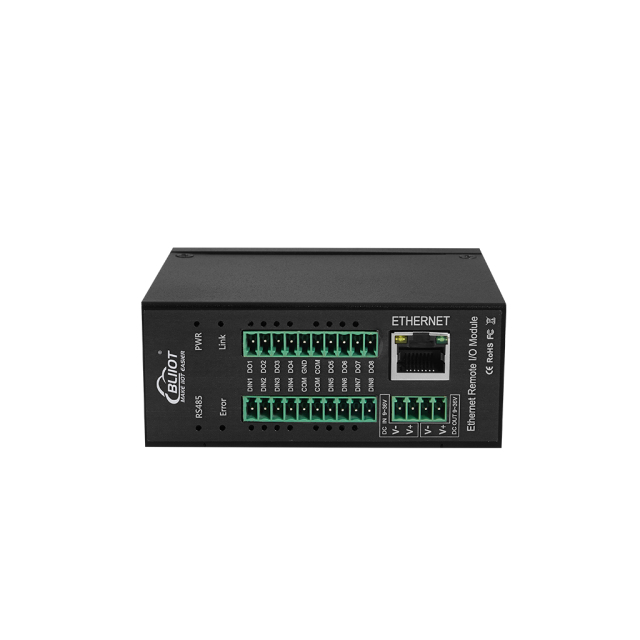

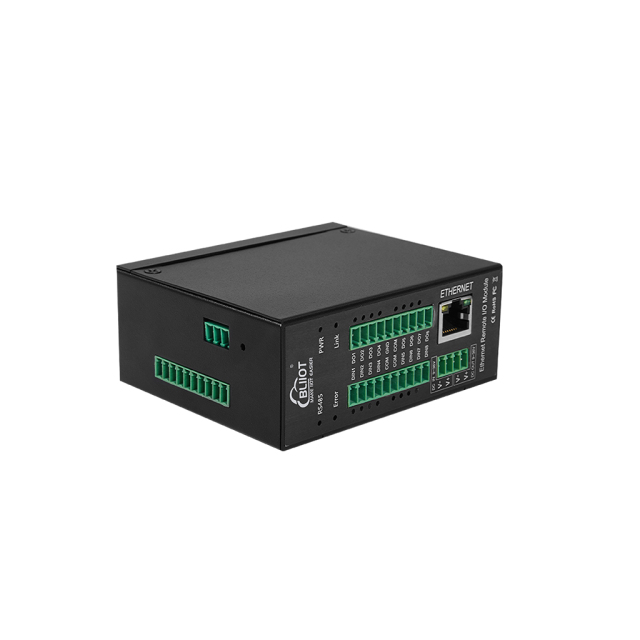

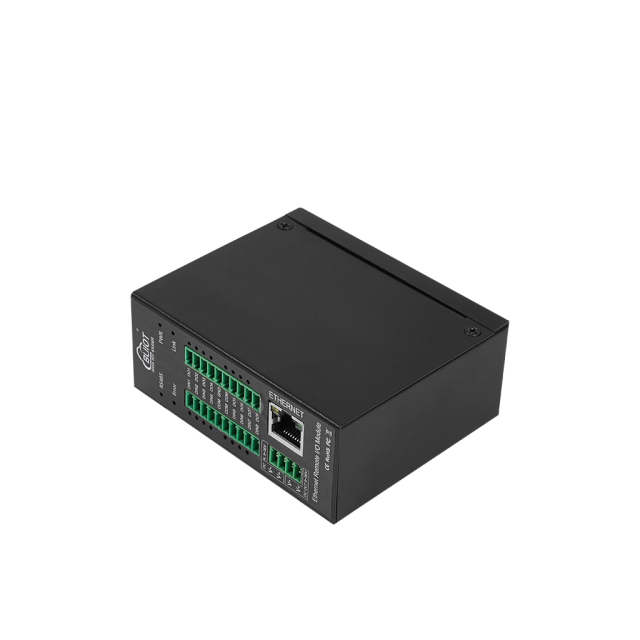

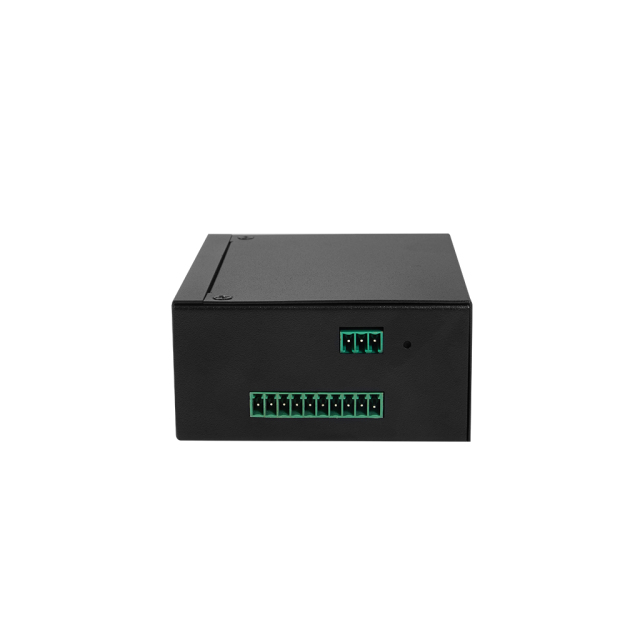

The M160T Ethernet I/O Module is a industrial-grade device designed for seamless data acquisition and control in harsh environments. This Ethernet I/O Module features 8digital inputs, 8analog inputs and 8digital outputs, ensuring high precision, reliability and flexibility for industrial automation, smart grid monitoring and environmental sensing.
The M160T Ethernet Remote I/O Module is a high-performance industrial data acquisition and control device built around a 32-bit MCU. This robust module features a 10/100M adaptive Ethernet port and supports Modbus TCP, Modbus RTU over TCP and MQTT protocols, enabling seamless integration with SCADA systems, OPC servers and industrial automation networks. Designed for harsh industrial environments, it is widely used in factory automation, process control and distributed monitoring applications.
Typical Application
|
Item |
Parameter |
Description |
|
Power |
Input voltage |
Models without AO: 9~36VDC Models with AO: 24~36VDC |
|
Power consumption |
Typical standby power consumption: ≤ 2W |
|
|
Power Output |
1 channel Output voltage: 9～36V DC(Equal to the input voltage) Output current: 1500mA@12V(MAX) |
|
|
Ethernet |
Specification |
1 x RJ45, 10M/100Mbps |
|
Protocol |
Modbus RTU, Modbus TCP, MQTT |
|
|
Serial port |
Quantity |
1 x RS485 |
|
Baud Rate |
2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000 |
|
|
Protocol |
Modbus RTU(slave), Modbus RTU(master) |
|
|
Digital input |
Quantity |
8 channels |
|
Type |
Support Wet contact(NPN, PNP) and Dry contact. Default: Wet contact |
|
|
Digital output |
Quantity |
8 channels |
|
Type |
SINK |
|
|
Analog input |
Quantity |
8 channels |
|
Method |
Single-ended input |
|
|
Type |
4-20mA, 0-20mA, 0-5V, 0-10V |
|
|
Software |
Protocols |
IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT |
|
Protocol conversion |
Support Modbus TCP and RTU protocol conversion Support Modbus RTU to MQTT and Modbus TCP to MQTT |
|
|
Environment |
Working |
-20～70°C, 5～95%RH |
|
Storage |
-40～85°C, 5～95%RH |
|
|
Others |
Case |
Metal |
|
Dimension |
82mm×40mm×100mm |
|
|
Protection grade |
IP30 |
|
|
Net Weight |
350g |
|
|
Installation |
DIN rail mounted, Wall-mounted |
