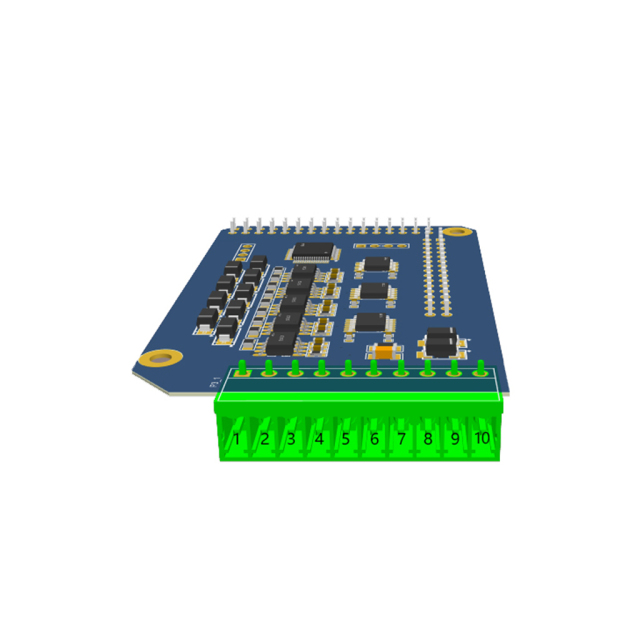

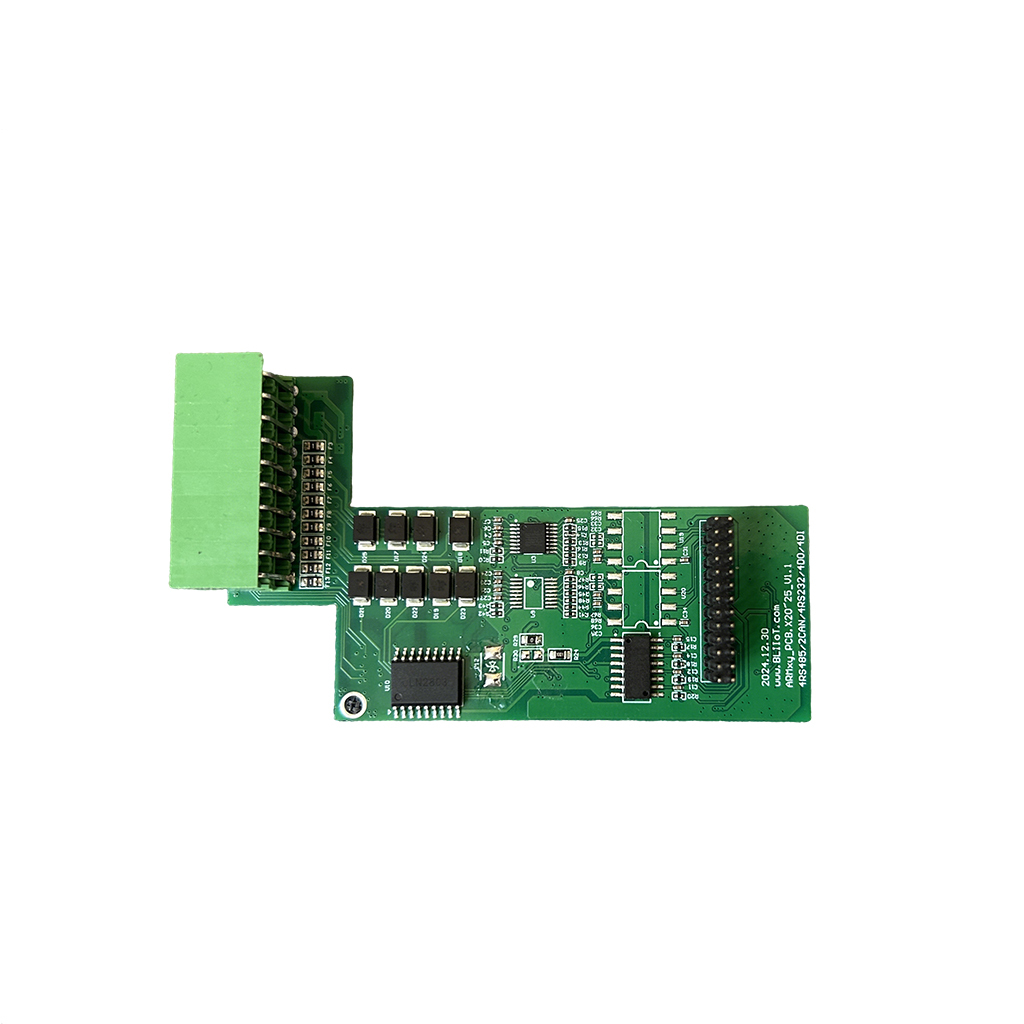

8CH GPIO Module

No.X0

X0 is a 8-channel GPIO expansion module for the BL118, BL310, and BL335 series products.

Request Pricing Download

Share:

Description

X0 is a 8-channel GPIO expansion module for the BL118, BL310, and BL335 series products.

Technical Specifications:

Name	Parameter	Description
Power Supply	Operating Power	Internal Voltage
	Working Voltage	12V-24V
	Power Consumption	2W
GPIO	Channel	8 Channels
	Output Mode	Single-ended output
	Output Voltage	High level: 3.3V Low level: 0.7V
	Maximum Output Current per Channel	5mA
	Input Withstand Voltage	Maximum voltage: 3.5V Minimum voltage: 0V
	Input Logic Level	Logic 1: 3.0V ~ 3.5V Logic 0: 0V ~ 1.0V
	Input Current	5mA
	Electrical Isolation	Not supported
