Name: 8-channel High-level Triggered Digital Input Module
Brand: Beilai Tech. Co., Ltd.
SKU: Y12
Availability: InStock
Rating: 5 (1 reviews)

8-channel High-level Triggered Digital Input Module

No.Y12

The Y12 digital input module is part of the Y series I/O modules designed for use with IOy and ARMxy series products. It provides 8 digital input channels (DI1 to DI8) for capturing digital signals from field devices. Widely used in industrial automation and control systems, the Y12 ensures reliable data acquisition through robust isolation technology, effectively reducing signal interference and enhancing overall system safety and stability.

Technical Specifications

Name	Parameter	Description
Power Supply	Operating Voltage	Internal Voltage
Power Supply	Power Consumption	0.4W
Digital Input	Channel	8 Channels
	Triggering Method	High-level trigger
	Logic level	Logic 1: +15 to +30VDC Logic 0: -3 to +5VDC Common terminal: 0VDC
	Isolation protection	2KVrms
Certifications	EMC	IEC 61000-4-2 (ESD) Level 3
		IEC 61000-4-4 (EFT) Level 3
		IEC 61000-4-5 (Surge)Level 3

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

No.	Name	Model	Channel	Signal Type
1	8-channel digital input module	Y11	8	Low-level trigger
2	8-channel digital input module	Y12	8	High-level trigger
3	8-channel digital input module	Y13	8	Dry contact

8-channel High-level Triggered Digital Input Module

Technical Specifications

Model Selection

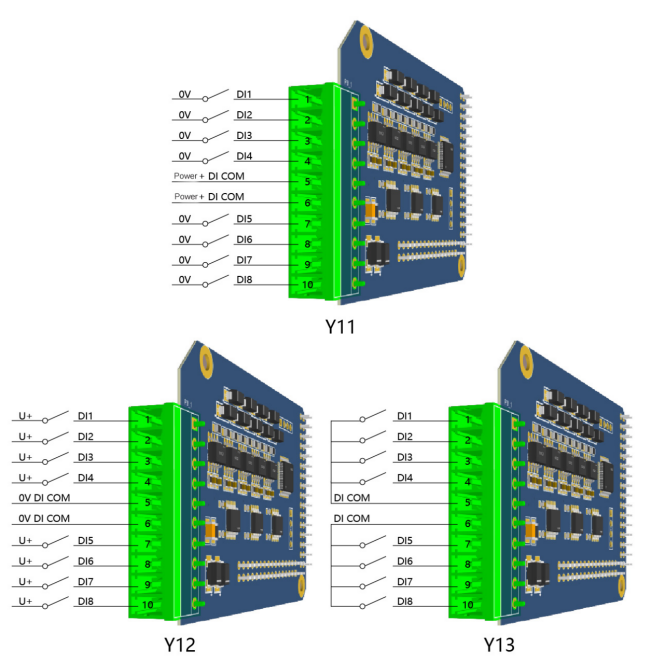

Connection Example
