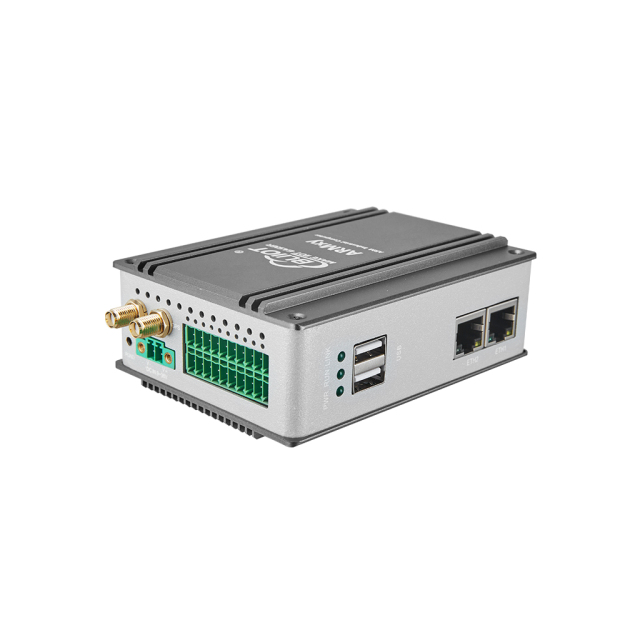

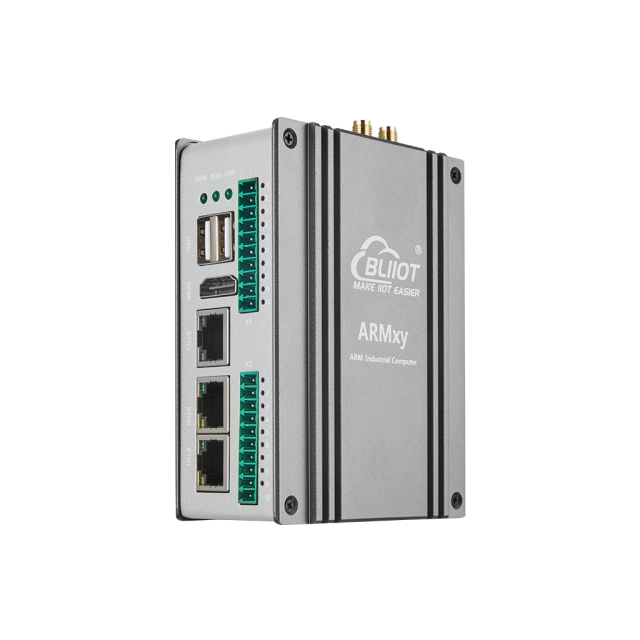

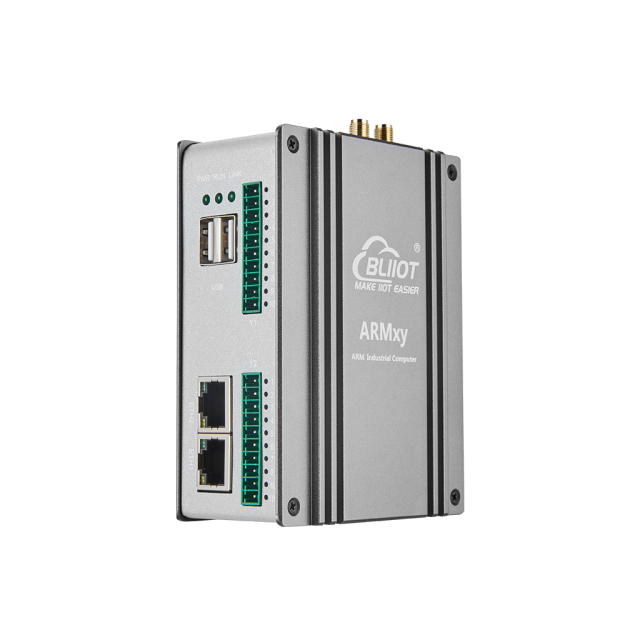

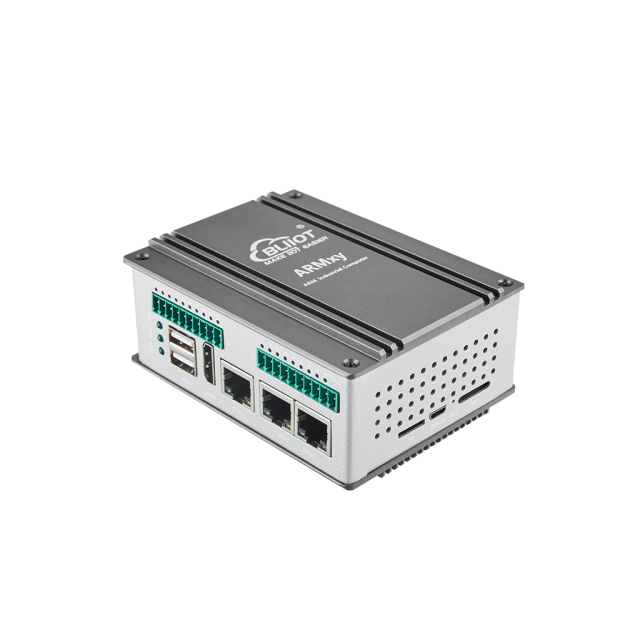

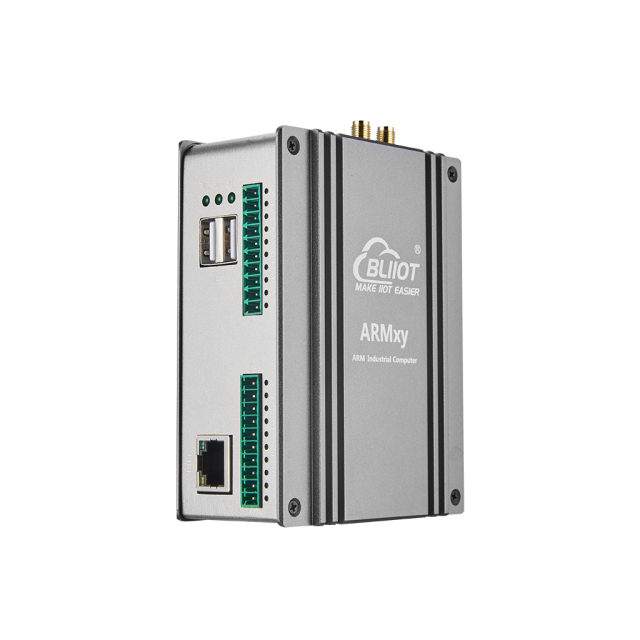

Raspberry Pi CM5 Embedded Computer

Name: Raspberry Pi CM5 Embedded Computer
Brand: Beilai Tech. Co., Ltd.
SKU: BL460
Availability: InStock
Rating: 5 (1 reviews)

No.BL460

Industrial AI Embedded Computer BL460 based on the Raspberry Pi CM5 module and compatible with the Raspberry Pi ecosystem, it offers richer and more flexible I/O options, enabling engineers familiar with Raspberry Pi to quickly start development of industrial edge computing applications and Industrial AI solutions.

Request Pricing Download

Description

High-Performance Processor

Flexible SOM and I/O options

X-Series I/O: Includes RS232/RS485, CAN, DI/DO, GPIO combinations.
Y-Series I/O: Support DI/DO, AI/AO, RTD (PT100/PT1000), TC, IEPE modules.
Reserved 40-pin header supports various Raspberry Pi-compatible expansion modules and peripherals.
Support multiple ROM, RAM, and temperature grade options.

Multi-System Compatibility

Linux 6.6.78-v8-16k kernel and Raspberry Pi OS support.
Support various development tools and applications such as Node-RED, QT, Python, C++, MySQL, InfluxDB, SQLite, etc.

Expansion & AI Acceleration Support

The BL460 is equipped with a standard M.2 interface, enabling flexible hardware expansion for storage and AI acceleration, making it ideal for edge computing and AI applications.

M.2 SSD Storage Expansion
BL460 supports M.2 SSD solid-state drives for high-speed local storage.
The SSD can be used immediately after insertion, with no additional driver installation required.
Users can simply run the command `lsblk` to check the SSD status and verify available storage capacity, allowing fast and convenient system expansion.

Hailo AI Accelerator Module Support
BL460 also supports Hailo AI accelerator modules via the M.2 interface.
The Hailo compute module is built on Hailo’s proprietary AI processor architecture, delivering high-performance, low-power AI inference for edge devices.

Industrial-Grade Reliability

Capable of stable operation in a wide temperature range of -20°C to 85°C.
Resistant to electromagnetic interference, suitable for harsh industrial environments.
Support DIN35 rail mounting, making it easy to integrate into various industrial devices.

Comprehensive Software Support

QuickConfig: Graphical web interface for quick configuration, system management, and remote access tool. Greatly simplifies the remote deployment and daily remote operation and maintenance of the ARMxy series embedded industrial computers, significantly improving management efficiency and system reliability.
BLIoTLink: Industrial protocol conversion software.
BLRAT: Remote access tool, enabling remote operation and management.

Product Selection Guide
Users can select one SOM board, one X board, and two Y boards.
Product naming convention: Host Model Number - SOM Model Number - X Board Model Number - Y1 Board Model Number - Y2 Board Model Number

ARMxy BL460 Host Model Selection

Model	ETH	USB	HDMI	X Series I/O Board	Y Series I/O Board	Dimension
BL460	1x10/100/1000M	2	X	1x6PIN	X	42x83x110mm
BL460A	1x10/100/1000M	2	X	1x20PIN	X	42x83x110mm
BL460B	1x10/100/1000M	2	X	1x20PIN	2	48x83x110mm
BL460C	1x10/100/1000M	2	X	1x10PIN	X	42x83x110mm
BL461	1x10/100/1000M，1x10/100M	2	X	1x6PIN	X	42x83x110mm
BL461A	1x10/100/1000M，1x10/100M	2	X	1x20PIN	X	42x83x110mm
BL461B	1x10/100/1000M，1x10/100M	2	X	1x20PIN	2	48x83x110mm
BL462	1x10/100/1000M，2x10/100M	2	1	1x6PIN	X	42x83x110mm
BL462A	1x10/100/1000M，2x10/100M	2	1	1x20PIN	X	42x83x110mm
BL462B	1x10/100/1000M，2x10/100M	2	1	1x20PIN	2	48x83x110mm

ARMxy BL460 SOM Model Selection

Model	MCU	Clock Speed	Wireless	eMMC	LPDDR4X	Temperature
CM5002000	BCM2712	2.4GHz	x	0GB (Lite)	2GB	-20~85℃
CM5002016	BCM2712	2.4GHz	x	16GB	2GB	-20~85℃
CM5002032	BCM2712	2.4GHz	x	32GB	2GB	-20~85℃
CM5004000	BCM2712	2.4GHz	x	0GB (Lite)	4GB	-20~85℃
CM5004016	BCM2712	2.4GHz	x	16GB	4GB	-20~85℃
CM5004032	BCM2712	2.4GHz	x	32GB	4GB	-20~85℃
CM5008000	BCM2712	2.4GHz	x	0GB (Lite)	8GB	-20~85℃
CM5008016	BCM2712	2.4GHz	x	16GB	8GB	-20~85℃
CM5008032	BCM2712	2.4GHz	x	32GB	8GB	-20~85℃
CM5016000	BCM2712	2.4GHz	x	0GB (Lite)	16GB	-20~85℃
CM5016016	BCM2712	2.4GHz	x	16GB	16GB	-20~85℃
CM5016032	BCM2712	2.4GHz	x	32GB	16GB	-20~85℃
CM5016064	BCM2712	2.4GHz	x	64GB	16GB	-20~85℃
CM5102000	BCM2712	2.4GHz	PCB/ext	0GB (Lite)	2GB	-20~85℃
CM5102016	BCM2712	2.4GHz	PCB/ext	16GB	2GB	-20~85℃
CM5102032	BCM2712	2.4GHz	PCB/ext	32GB	2GB	-20~85℃
CM5104000	BCM2712	2.4GHz	PCB/ext	0GB (Lite)	4GB	-20~85℃
CM5104016	BCM2712	2.4GHz	PCB/ext	16GB	4GB	-20~85℃
CM5104032	BCM2712	2.4GHz	PCB/ext	32GB	4GB	-20~85℃
CM5108000	BCM2712	2.4GHz	PCB/ext	0GB (Lite)	8GB	-20~85℃
CM5108016	BCM2712	2.4GHz	PCB/ext	16GB	8GB	-20~85℃
CM5108032	BCM2712	2.4GHz	PCB/ext	32GB	8GB	-20~85℃
CM5108064	BCM2712	2.4GHz	PCB/ext	64GB	8GB	-20~85℃
CM5116000	BCM2712	2.4GHz	PCB/ext	0GB (Lite)	16GB	-20~85℃
CM5116016	BCM2712	2.4GHz	PCB/ext	16GB	16GB	-20~85℃
CM5116032	BCM2712	2.4GHz	PCB/ext	32GB	16GB	-20~85℃
CM5116064	BCM2712	2.4GHz	PCB/ext	64GB	16GB	-20~85℃

ARMxy BL460 X Series I/O Board Selection

Ensuring that the number of pins on the X-series I/O board matches the enclosure

Model	RS232/RS485	CAN	DI	DO	GPIO	PIN
X10	2	x	x	x	x	6PIN
X13	x	x	2	2	x	6PIN
X14	x	x	4	x	x	6PIN
X15	x	x	x	4	x	6PIN
X16	x	x	x	x	4	6PIN
X20	4	x	x	x	x	10PIN
X23	4	x	4	4	x	20PIN
X26	2	x	8	4	x	20PIN
X28	2	x	12	x	x	20PIN

ARMxy BL460 Y Series I/O Board Selection

When the Y63 is selected, a second Y-series I/O board cannot be used

Model	Description	Model	Description
Y01	4xDI+4xDO(NPN)	Y41	4xAO, 0~20mA/4~20mA
Y02	4xDI+4xDO(PNP)	Y43	4xAO, 0~5V/0~10V
Y11	8xDI(NPN)	Y46	4xAO, ±5V/±10V
Y12	8xDI(PNP)	Y51	2xRTD, 3-Wire PT100
Y13	8xDI(Dry Contact)	Y52	2xRTD, 3-Wire PT1000
Y21	8xDO(PNP)	Y53	2xRTD, 4-Wire PT100
Y22	8xDO(NPN)	Y54	2xRTD, 4-Wire PT1000
Y24	4xDO(Relay)	Y56	Resistance Measurement
Y31	4xAI, Single-ended, 0~20mA/4~20mA	Y57	Voltage Measurement
Y33	4xAI, Single-ended, 0~5V/0~10V	Y58	4xTC
Y34	4xAI, Differential, 0~5V/0~10V	Y63	4xRS485 or RS232
Y36	4xAI, Differential, ±5V/±10V	Y95	4xPWM Output(NPN) + 4xPulse Counter Input
Y37	4xIEPE	Y96	4xPWM Output(PNP) + 4xPulse Counter Input

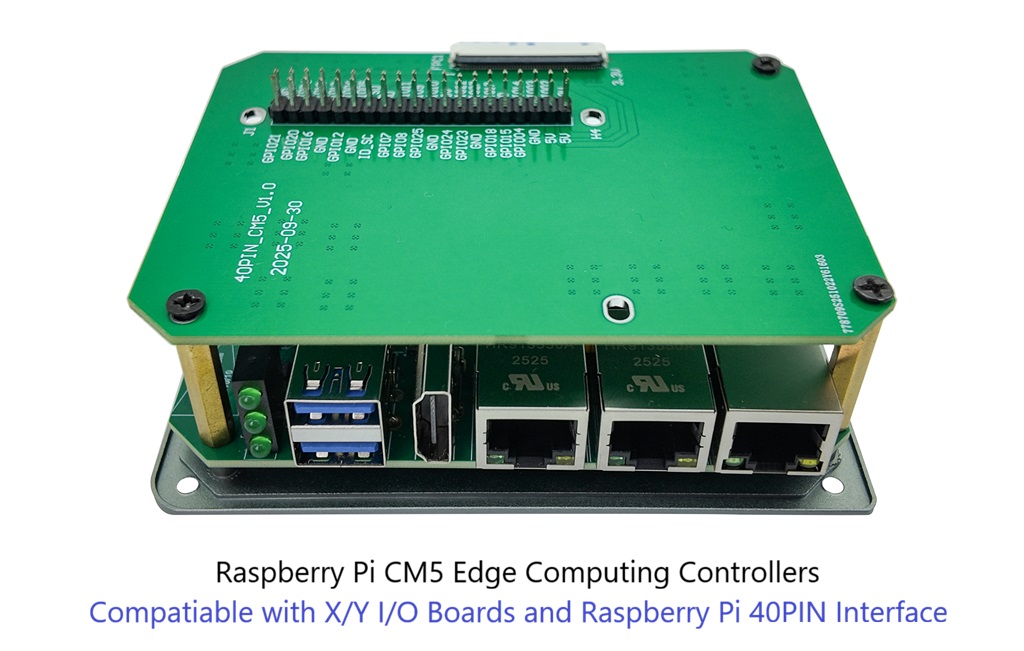

ARMxy BL460 X Series Compatible with Raspberry Pi CM5 40PIN I/O

If no need the X or Y I/O board, the user can use the Raspberry Pi CM5 40PIN I/O via an additional board, the construction as below metioned. in this case, the enclosure is not suitable any more.

Hardware Specifications

Hardware	Parameters
CPU	Broadcom BCM2712, 16nm
	4xCortex-A76, Clock Speed: 2.4GHz
	GPU: VideoCore VII, supports OpenGL ES 3.1, Vulkan 1.2, and 4Kp60 HEVC decoding
ROM	8/16/32/64GByte eMMC
RAM	2/4/8/16GByte LPDDR4X
ETH	RJ-45, 1~3, 1x10/100/1000M, 2x10/100M, ESD Level 3, EFT Level 3
USB	2xUSB 3.0, up to 5.0 Gbps, ESD Level 3
HDMI	1xHDMI 2.1, supports 4K @ 60fps
I/O Slot	X series IO board slot: 1, X series IO board, support RS485, RS232, RS422, DI, DO, GPIO, etc; Y series IO board slot: 2, Y series IO board, support RS485, RS232, RS422, DI, DO, Relay output, AI, AO, PT100, PT1000, TC, IEPE, etc.
LED	1x power indicator light
LED	2x user-programmable indicator light
Mini PCIe	1, Supports 4G module
M.2	1x M.2 slot, supports 2242-size SSD
SIM Slot	1 slot, NANO
Antenna	2, For 4G/5G/WiFi/GPS
Debug	1x Micro USB debug port
SD Slot	1(For Lite version SOM only)
Reset	1 reset button
Watchdog	Onboard independent hardware watchdog
Power	Rated DC 24V, supports wide voltage range of 12-24VDC Equipped with reverse polarity protection and overcurrent protection 2-pin terminal block with screw terminals
Grounding	1-pin GND terminal
Installation	DIN35 rail mounting, wall mounting
Material	Aluminum alloy casing + stainless steel
Dimension	1108342mm or 1108348mm

Software Specifications

Software	Parameters
Kernel	Linux 6.6.78-v8-16k
Operating System	Raspberry Pi OS, Linux6.6.78
GUI development tool	Qt-5.15.11
Protocol Conversion Software	BLIoTLink, used for protocol conversion, such as Modbus,PLC, BACnet, IEC104, MQTT, OPC UA, support AWS IoTCore, Thingsboard, IgnitionSCADA, Alibaba IoT, HUAWEI IoT.
Remote Quick Configuration Tool & AI Assistant	QuickConfig
Remote Access Tool	BLRAT, enables remote device access for convenient remote maintenance.
Other Software	Node-Red, Python, Docker, C#, MySQL, SQLite

Typical Application Areas

✓ Industrial Control

✓ Industrial PLC

✓ Edge Computing Gateway

✓ Blood Analyzer

✓ Communication Management Unit

✓ Testing Instruments and Equipment

✓ Rail Transit

✓ Energy Storage System

✓ Motion Controller

✓ EV Charging Pile

✓ Smart Manufacturing

✓ AGV Robot

✓ Industrial Robot

✓ Smart Devices
