The 4G industrial router R40 providing users with high-speed remote wireless network access. It is widely used in M2M, telemetry, industrial IoT, transportation, new retail, water conservancy, smart cities, meteorology, firefighting, remote sensing, and natural disaster monitoring industries, enabling remote wireless data transmission and network access.

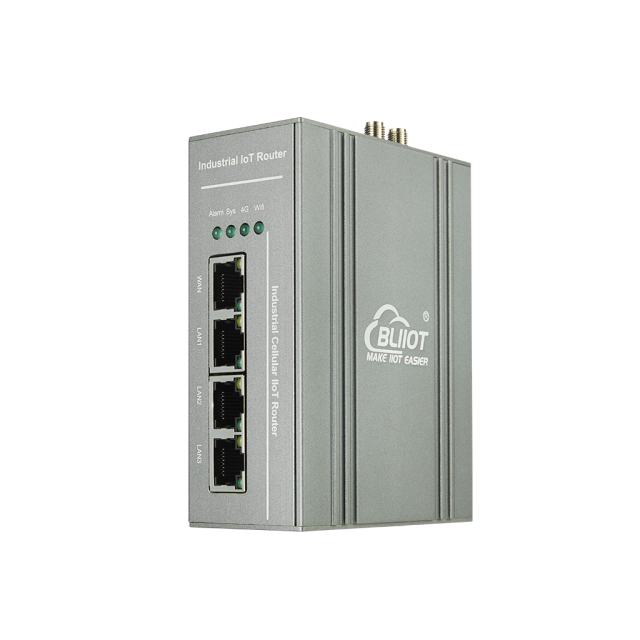

The industrial-grade 4G cellular router R40 offers three standard RJ45 10/100Mbps LAN ports and one standard RJ45 10/100Mbps WAN port, which can also function as a LAN port. It optionally supports IEEE 802.3af/at-compliant PoE PSE functionality, providing stable power to on-site network devices and reducing wiring costs.
The industrial cellular router R40 supports WiFi and can operate in both STA and AP modes, allowing wireless devices to quickly connect to the network. It features dual SIM card slots and supports automatic switching between wired and wireless networks, ensuring a reliable network connection.
The cellular router R40 supports VPN protocols such as L2TP, IPSEC, and OPENVPN, ensuring secure data communication.
Built with an independent hardware watchdog, the industrial-grade 4G cellular router R40 has undergone professional electrical performance design and high/low-temperature testing, ensuring stable operation even in harsh environments.
Technical Specifications
|
Item |
Parameters |
Description |
|

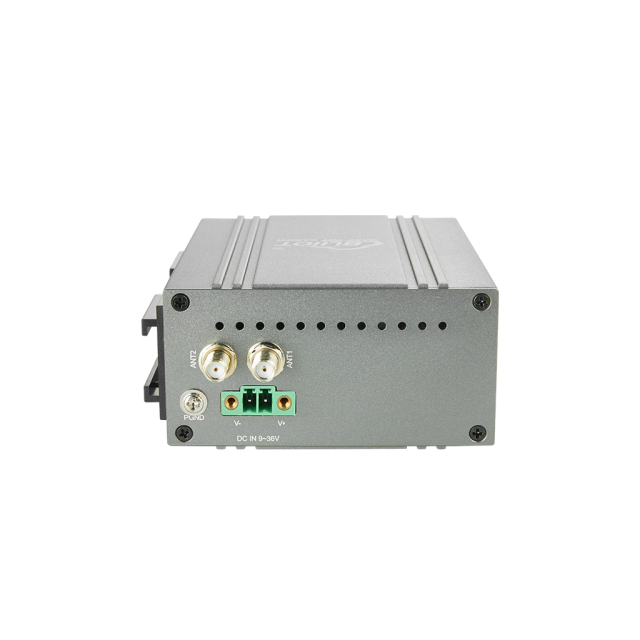

Power Supply |
Input Voltage |
Standard: 9~36VDC PoE Version: 48~57VDC |
|
Input Current |
Standard Version: Normal: 240mA@12V PoE Version: Normal: 70mA@48V |
|
|
Reverse Polarity Protection |
Support |
|
|
Protection |
ESD Level 3, EFT Level 3 |
|
|
System |
CPU |
MIPS CPU, Clock Speed: 580 MHz |
|
Storage |
16MB |
|
|
Memory |
128MB |
|
|
Software Parameters |
Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, SSH2, DDNS, SNMP |
|
VPN Tunnel |
IPsec, OpenVPN, L2TP |
|
|
Firewall |
DMZ, DoS Protection, IP Packet, Domain Name and MAC Address Filtering, Port Mapping, Access Control |
|
|
Remote Management |
Supports Web-Based Remote Configuration |
|
|
System Log |
Support |
|
|
Firmware Upgrade |
Supports Serial Local TFTP and Web-Based Software Upgrade |
|
|
WAN |
Quantity |
1 |
|
Specification |
RJ45 Port, 10M/100Mbps, Auto-sensing MDI/MDIX |
|
|
Protection |
ESD Level 3, EFT Level 3 |
|
|
LAN（PoE） |
Quantity |
3 |
|
Specification |
RJ45 Port, 10M/100Mbps, Auto-sensing MDI/MDIX |
|
|
PoE(Optional) |
Supports 3 PoE Power Output Ports Compatible with IEEE 802.3at/af Standards Maximum Output Power per PoE Port: 30W |
|
|
Protection |
ESD Level 3, EFT Level 3, Lightning Protection |
|
|
Console Interface |
Quantity |
1 |
|
Specification |
Mini USB |
|
|
Protection |
ESD Level 3, EFT Level 3, Lightning Protection |
|
|
WiFi |
Number of Antenna Ports |
1 |
|
Antenna Port Type |
SMA Female |
|
|
Protocol |
802.11a/b/g/n(mixed) |
|
|
Mode |
AP Mode (Access Point Mode), STA Mode (Station Mode) |
|
|
Frequency Band |
2.4G |
|
|
Channel |
Channel 1 - 13 |
|
|
Security |
Open, WPA, WPA2 |
|
|
Encryption |
AES, TKIP, TKIPAES |
|
|
Number of Connections |
16(Max) |
|
|
Speed |
300Mbps(Max) |
|
|
Transmission Distance |
Outdoors, Unobstructed/Open Area, Coverage Range up to 20 meters |
|
|
SSID Broadcast Switch |
Support |
|
|
Cellular Network |
Number of Antenna Ports |
1 |
|
Antenna Port Type |
SMA Female |
|
|
4G |
Support |
|
|

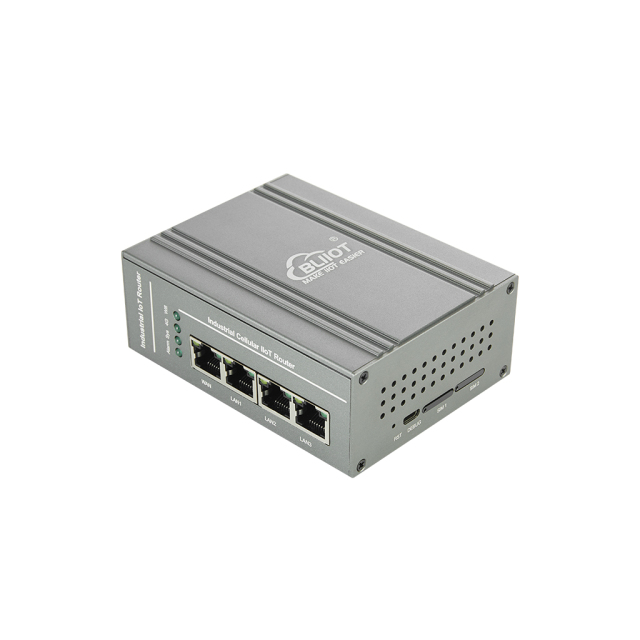

SIM Slot |
Quantity |
2 |
|
Specification |
Drawer-style Interface, Supports 1.8V/3V SIM/UIM Cards (NANO) |
|
|
Protection |
Built-in 15KV ESD Protection |
|
|

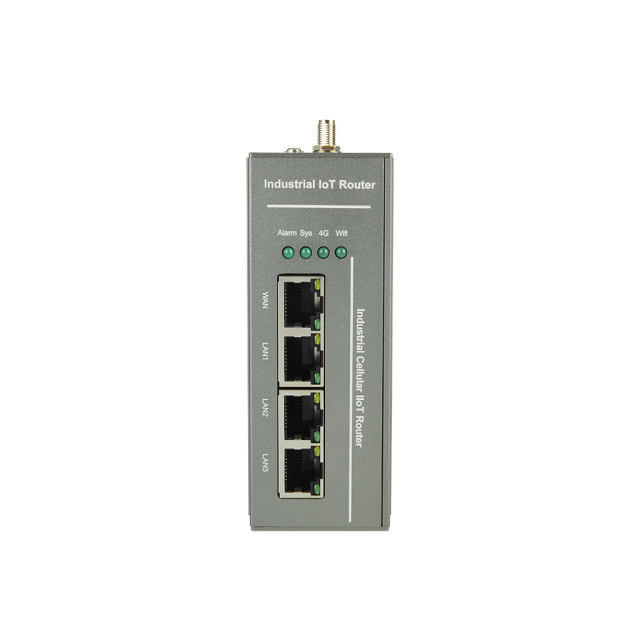

Indicator Light |
ALARM |
Alarm Indicator Light |
|
SYS |
System Status Indicator Light |
|
|
4G |
4G Status Indicator Light |
|
|
WiFi |
WiFi Status Indicator Light |
|
|
Operating Environment |
Operating Temperature |
-20～+65℃ |
|
Storage Temperature |
-40～+85℃ |
|
|
Relative Humidity |
5～95%RH(no condensation) |
|
|
Others |
Reset |
1 reset button |
|
Independent Watchdog |
Onboard independent hardware watchdog |
|
|
Enclosure |
Aluminum Alloy |
|
|
Dimension |
110mmx83mm x43mm(HxLxW) |
|
|
IP rating |
IP30 |
|
|
Net Weight |
500g |
|
|

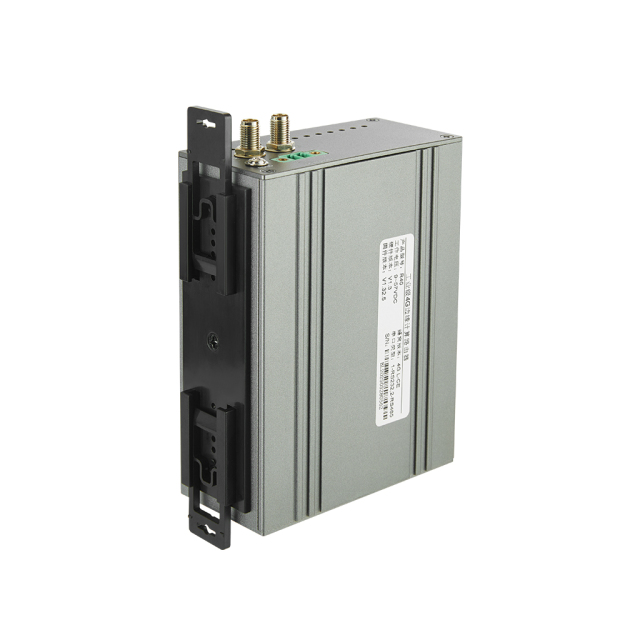

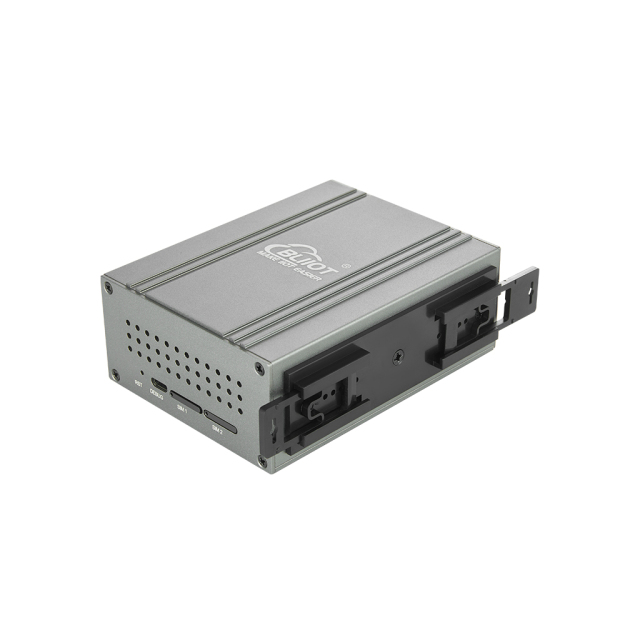

Installation Method |
DIN35 rail mounting, wall mounting |
Model Selection
| Model | SIM Slot | WiFi | POE | RS485/RS232 | DI | DO | AI | Function |
| R40 | 2 | √ | Optional | x | x | x | x | Only used as router |
| R40A | 2 | √ | Optional | 1*RS485+1*RS232 | 2 | 2 | x | Supports Modbus master/slave, MQTT, and logic control. |
| R40B | 2 | √ | Optional | 1*RS485+1*RS232 | 2 | 2 | 4 | Supports Modbus master/slave, MQTT, and logic control. |
