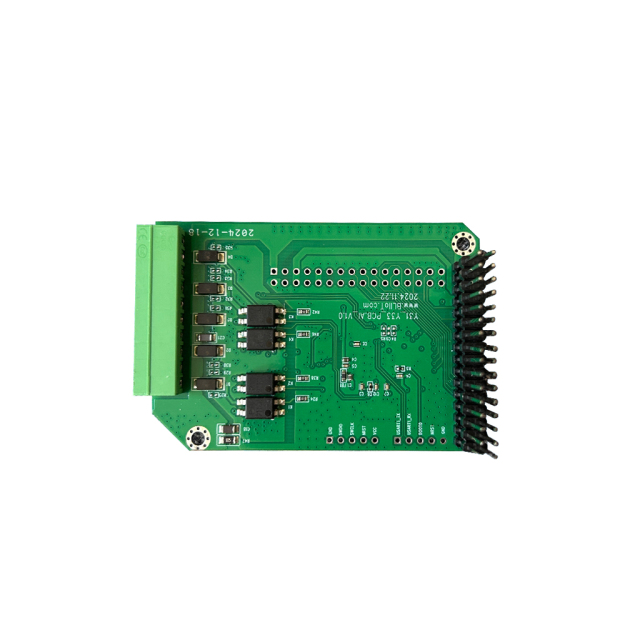

Name |
Parameter |
Description |
|
Power Supply |
Operating Voltage |
Internal Voltage |
|
Power Consumption |
0.48W |
|
|
Digital Input |
Channel |
4 Channels |
|
Triggering Method |
Y02: High-level trigger |
|
|
Logic level |
Y02: Logic 1: +15 to +30VDC Logic 0: -3 to +5VDC Common terminal: 0VDC |
|
|
Isolation protection |
2KVrms |
|
|
Digital Output |
Channel |
4 Channels |
|
Output Mode |
Single-Ended Output |
|
|
Output Type |
Y02: Output is active high, providing a 24VDC signal when activated. |
|
|
Maximum Output Current per Channel |
200mA |
|
|
Isolation protection |
2KVrms |
|
|
Certifications |
EMC |
IEC 61000-4-2 (ESD) Level 3 |
|
IEC 61000-4-4 (EFT) Level 3 |
||
|
IEC 61000-4-5 (Surge)Level 3 |
|
No. |
Name |
Model |
Channel |
Signal Type |
|
1 |
8-channel digital input output module |
Y01 |
8 |
4DI (Low-Level Trigger) 4DO (Low-Level Output) |
|
2 |
8-channel digital input output module |
Y02 |
8 |
4DI (High-Level Trigger) 4DO (High-Level Output) |

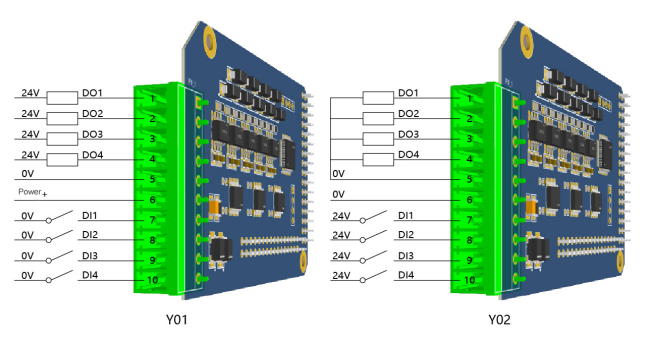

Connection Example
