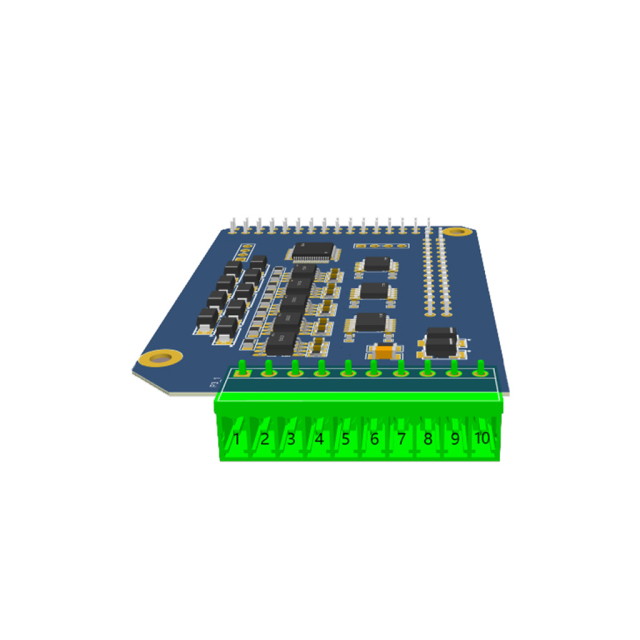

Key Features:
4 Independent RS485 Channels: Supports high-speed communication with baud rates up to 10 Mbps per channel.
Robust Communication Configurability: Flexible data format settings including data bits (5–8), stop bits (1–2), and parity (odd, even, none).
High Noise Immunity: Built-in 2KVrms isolation protection and 120Ω terminal impedance, compliant with IEC 61000-4-2/4/5 EMC Level 3 standards.
Long-Distance Support: Reliable communication up to 200 meters at baud rates ≤115,200 bps using shielded twisted-pair cables.
Half-Duplex/Simplex Operation: Supports transmit/receive, receive-only, and transmit-only modes.
BL118, BL310, BL335 X Series I/O Boards Selection
|
Model |
RS485 |
RS232 |
CAN |
GPIO |
PIN |
|
X1 |
4 |
x |
x |
x |
2x5PIN |
|
X2 |
x |
4 |
x |
x |
2x5PIN |
|
X3 |
2 |
2 |
x |
x |
2x5PIN |
|
X4 |
2 |
x |
2 |
x |
2x5PIN |
|
X5 |
x |
2 |
2 |
x |
2x5PIN |
|
X6 |
2 |
x |
x |
4 |
2x5PIN |
|
X7 |
x |
2 |
x |
4 |
2x5PIN |
|
X8 |
1 |
1 |
1 |
2 |
2x5PIN |
