4-channel 0~20mA/4~20mA Analog Output Module

No.Y41
The Y41 current output module is one of the Y series I/O modules for IOy series and ARMxy series products.
This module features 4 output channels: AO1, AO2, AO3, and AO4, and it can output current signals in the ranges of 0-20mA or 4-20mA for controlling field device actuators.
Request Pricing Download
Description

The Y41 current output module is one of the Y series I/O modules for IOy series and ARMxy series products.
This module features 4 output channels: AO1, AO2, AO3, and AO4, and it can output current signals in the ranges of 0-20mA or 4-20mA for controlling field device actuators.
Each output channel is electrically isolated, and the signal is transmitted with 12-bit resolution.


Technical Specifications

Name

Parameter

Description

Power Supply

Operating Voltage

Internal Voltage

Power Consumption

2.4W

Current Output

Channels

4 channels

Output Type

0-20mA and 4-20mA

Resolution

12Bit

Accuracy

±0.1 % FSR @ 25 ℃

Conversion Time

10ms

Input Impedance

≤1kΩ

Certifications

EMC

IEC 61000-4-2 (ESD) Level 3

IEC 61000-4-4 (EFT) Level 3

IEC 61000-4-5 (Surge)Level 3

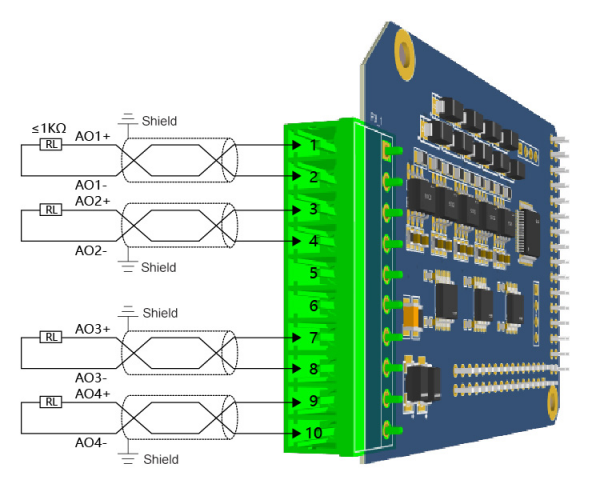

Connection Example

  • analog output module
  • current output
  • industrial actuator control
  • 12-bit resolution output
  • AO module
  • AO module
