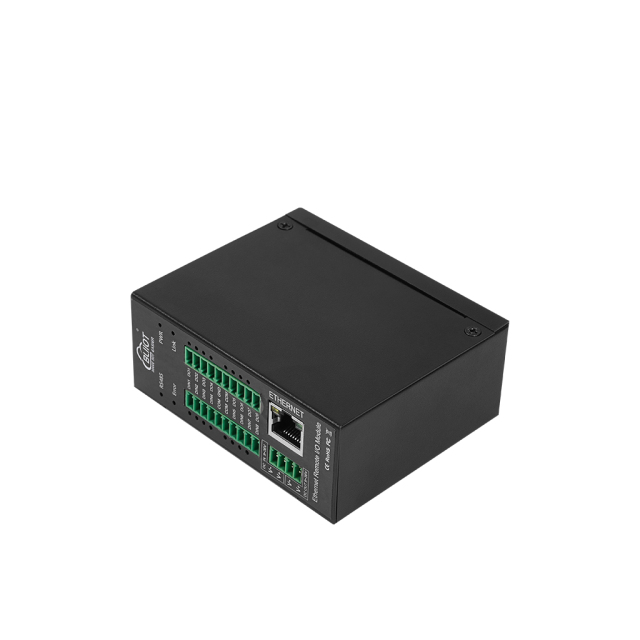

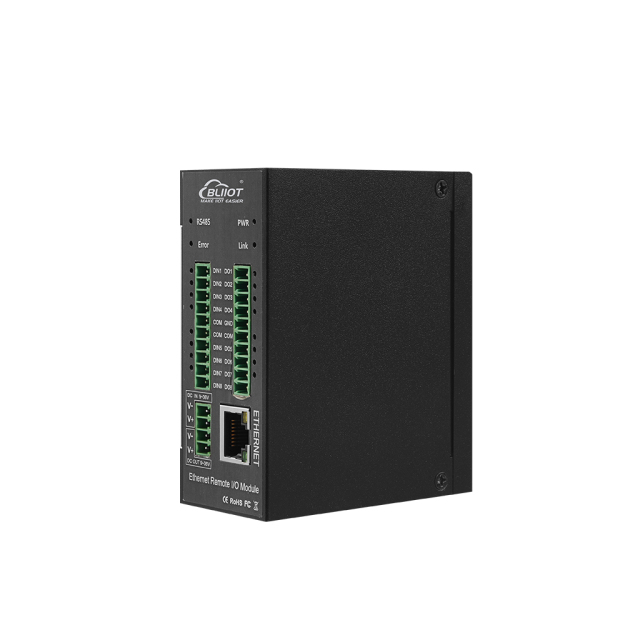

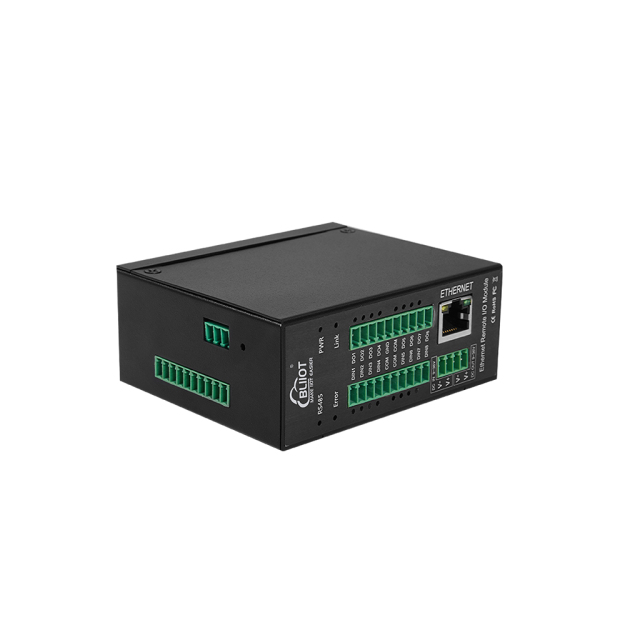

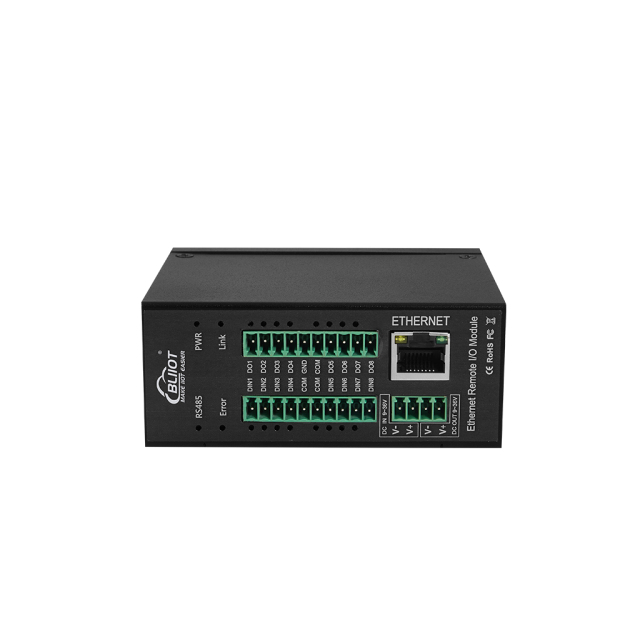

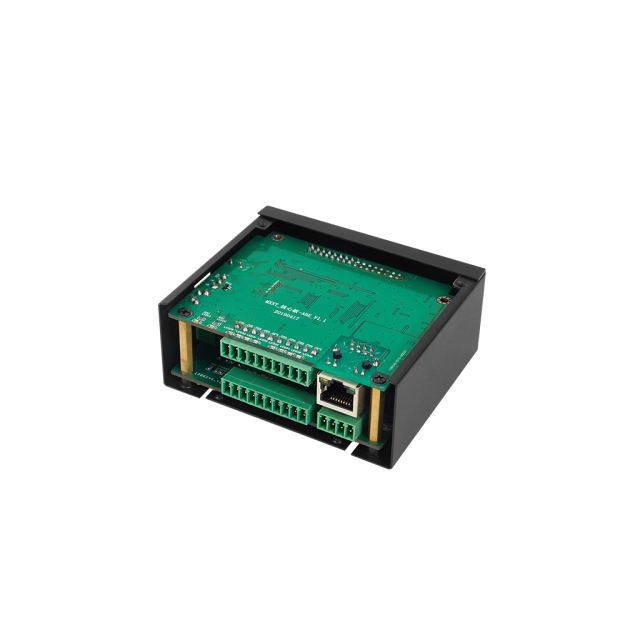

The M200T Ethernet Remote I/O Module is an industrial-grade dual-channel analog output module, designed for high-precision signal control. The module integrates a 32-bit high-performance microprocessor and a 10/100M adaptive Ethernet interface, supporting standard Modbus TCP, Modbus RTU over TCP and MQTT protocols, allowing direct connection to various industrial cloud platforms. Its AO channels support 0~10VDC, 0-20mA and 4-20mA signal outputs, fully meeting the precise control needs for analog output in industrial automation.

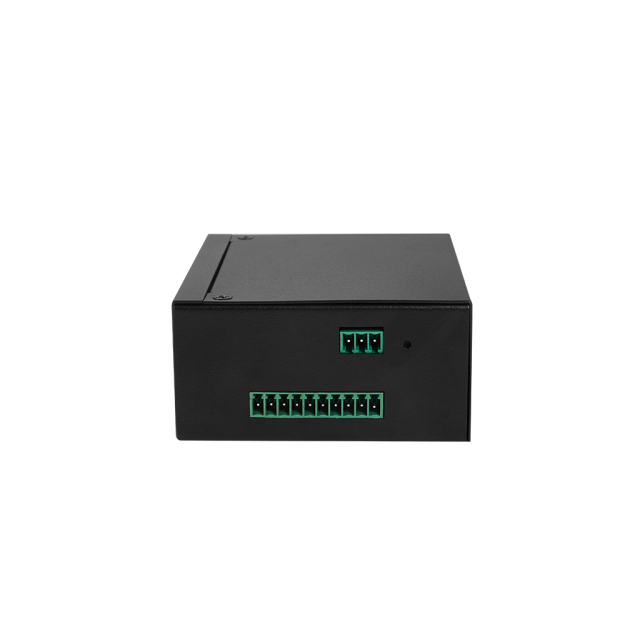

With the onboard RS485 communication interface module, the M200T can expand to connect Modbus RTU slave devices and utilizes its built-in register mapping function (300 16-bit register space) to automatically collect slave data, significantly enhancing system response speed. The module supports up to 5 simultaneous TCP connections, enabling seamless conversion between Modbus RTU and TCP protocols and easy integration into SCADA, OPC Server and other industrial control systems. Its MQTT Analog Output Module function supports scheduled data reporting and offline data buffering and retransmission, ensuring complete and reliable data on the cloud platform.Typical Application
|
Item |
Parameter |
Description |
|
Power |
Input voltage |
Models without AO: 9~36VDC Models with AO: 24~36VDC |
|
Power consumption |
Typical standby power consumption: ≤ 2W |
|
|
Power Output |
1 channel Output voltage: 9～36V DC(Equal to the input voltage) Output current: 1500mA@12V(MAX) |
|
|
Ethernet |
Specification |
1 x RJ45, 10M/100Mbps |
|
Protocol |
Modbus RTU, Modbus TCP, MQTT |
|
|
Serial port |
Quantity |
1 x RS485 |
|
Baud Rate |
2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000 |
|
|
Protocol |
Modbus RTU(slave), Modbus RTU(master) |
|
|
Analog output |
Quantity |
2 channels |
|
Method |
Single-ended to ground |
|
|
Type |
0~10VDC, 0-20mA, 4-20mA |
|
|
Data Type |
32-bit float |
|
|
Software |
Protocols |
IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT |
|
Protocol conversion |
Support Modbus TCP and RTU protocol conversion Support Modbus RTU to MQTT and Modbus TCP to MQTT |
|
|
Environment |
Working |
-20～70°C, 5～95%RH |
|
Storage |
-40～85°C, 5～95%RH |
|
|
Others |
Case |
Metal |
|
Dimension |
82mm×40mm×100mm |
|
|
Protection grade |
IP30 |
|
|
Net Weight |
350g |
|
|
Installation |
DIN rail mounted, Wall-mounted |
