Key Features:

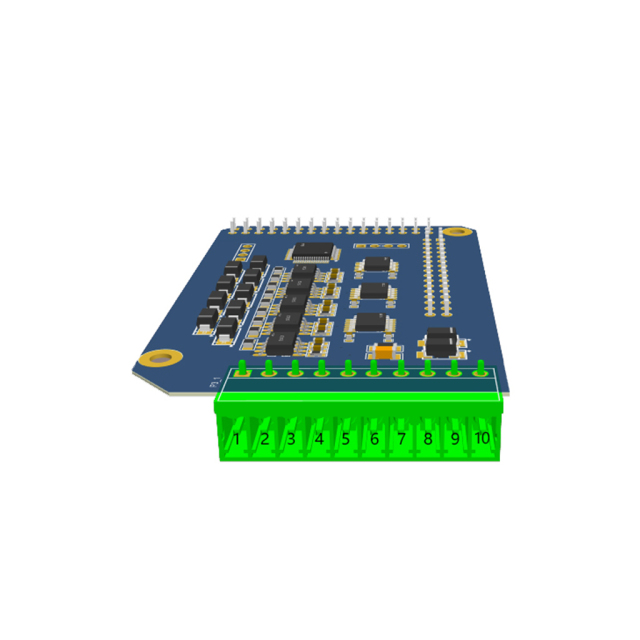

Dual-Protocol Support: Combines 2 independent RS485 channels and 2 independent CAN BUS channels for versatile industrial communication needs.
High-Speed Data Transmission:
RS485: Supports baud rates up to 10Mbps
CAN BUS: Supports nominal bit rates up to 1000Kbps and data bit rates up to 5000Kbps
Flexible Configuration: RS485 supports configurable data bits (5–8), stop bits (1–2), and parity (odd, even, none).
Multi-Node Communication: CAN BUS natively supports multi-node networks; RS485 supports multi-drop with custom development.
Advanced Protection: Built-in 2KVrms isolation and compliance with IEC 61000-4-2/4/5 EMC Level 3 standards.
Long-Distance Communication:
RS485: Up to 200 meters at ≤115,200 bps
CAN BUS: Up to 200 meters at 500 Kbps
BL118, BL310, BL335 X Series I/O Boards Selection
|
Model |
RS485 |
RS232 |
CAN |
GPIO |
PIN |
|
X1 |
4 |
x |
x |
x |
2x5PIN |
|
X2 |
x |
4 |
x |
x |
2x5PIN |
|
X3 |
2 |
2 |
x |
x |
2x5PIN |
|
X4 |
2 |
x |
2 |
x |
2x5PIN |
|
X5 |
x |
2 |
2 |
x |
2x5PIN |
|
X6 |
2 |
x |
x |
4 |
2x5PIN |
|
X7 |
x |
2 |
x |
4 |
2x5PIN |
|
X8 |
1 |
1 |
1 |
2 |
2x5PIN |
