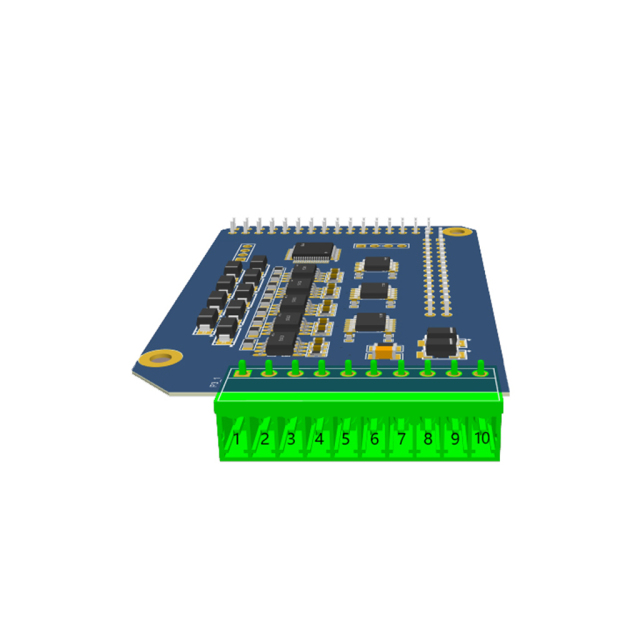

Key Features:
Dual-Protocol Integration: Features 2 independent RS232 channels and 2 independent CAN BUS channels for flexible communication needs
High-Performance Communication:
RS232: Supports baud rates up to 115kbps
CAN BUS: Supports nominal bit rates up to 1000Kbps and data bit rates up to 5000Kbps
Flexible Configuration: RS232 supports configurable data bits (5–8), stop bits (1–2), and parity (odd, even, none)
Multi-Node Support: CAN BUS natively supports multi-node networks
Advanced Protection: Built-in 2KVrms isolation and compliance with IEC 61000-4-2/4/5 EMC Level 3 standards
Dual-Distance Coverage:
RS232: Up to 15 meters at ≤1200 bps
CAN BUS: Up to 200 meters at 500 Kbps
BL118, BL310, BL335 X Series I/O Boards Selection
|
Model |
RS485 |
RS232 |
CAN |
GPIO |
PIN |
|
X1 |
4 |
x |
x |
x |
2x5PIN |
|
X2 |
x |
4 |
x |
x |
2x5PIN |
|
X3 |
2 |
2 |
x |
x |
2x5PIN |
|
X4 |
2 |
x |
2 |
x |
2x5PIN |
|
X5 |
x |
2 |
2 |
x |
2x5PIN |
|
X6 |
2 |
x |
x |
4 |
2x5PIN |
|
X7 |
x |
2 |
x |
4 |
2x5PIN |
|
X8 |
1 |
1 |
1 |
2 |
2x5PIN |
