Key Features:

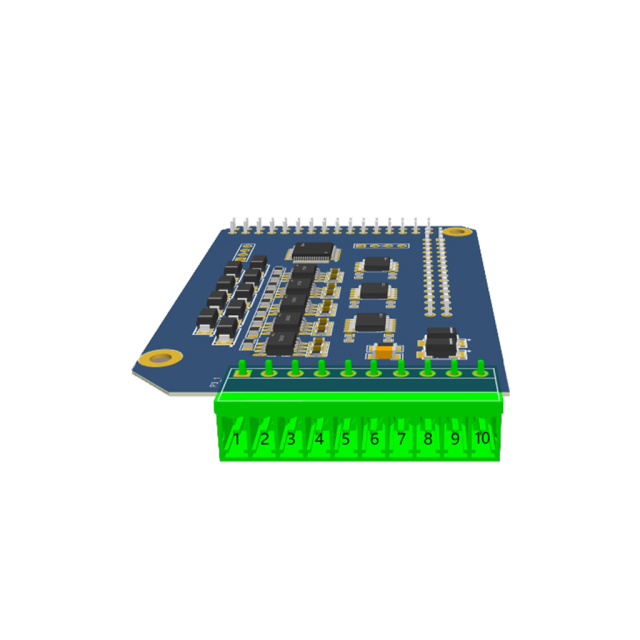

Quad-Interface Integration: Combines 1 RS485 channel, 1 RS232 channel, 1 CAN BUS channel, and 2 GPIO control channels
High-Performance Communication:
RS485: Supports up to 10Mbps, 200m range (at ≤115,200 bps)
RS232: Supports up to 115kbps, 15m range (at ≤1200 bps)
CAN BUS: Supports up to 1000Kbps nominal rate, 200m range
Flexible GPIO Control:
2 independent digital channels
Output: High level 3.3V, Low level 0.7V
Input: Logic 1 (3.0V-3.5V), Logic 0 (0V-1.0V)
Maximum current: 5mA per channel
Advanced Protection:
Communication ports feature 2KVrms isolation protection
Complies with IEC 61000-4-2/4/5 EMC Level 3 standards
BL118, BL310, BL335 X Series I/O Boards Selection
|
Model |
RS485 |
RS232 |
CAN |
GPIO |
PIN |
|
X1 |
4 |
x |
x |
x |
2x5PIN |
|
X2 |
x |
4 |
x |
x |
2x5PIN |
|
X3 |
2 |
2 |
x |
x |
2x5PIN |
|
X4 |
2 |
x |
2 |
x |
2x5PIN |
|
X5 |
x |
2 |
2 |
x |
2x5PIN |
|
X6 |
2 |
x |
x |
4 |
2x5PIN |
|
X7 |
x |
2 |
x |
4 |
2x5PIN |
|
X8 |
1 |
1 |
1 |
2 |
2x5PIN |
