Beilai’s IoT gateway enables real-time air conditioning monitoring and control, enhancing efficiency and energy savings across offices, malls, and warehouses.
Case Details

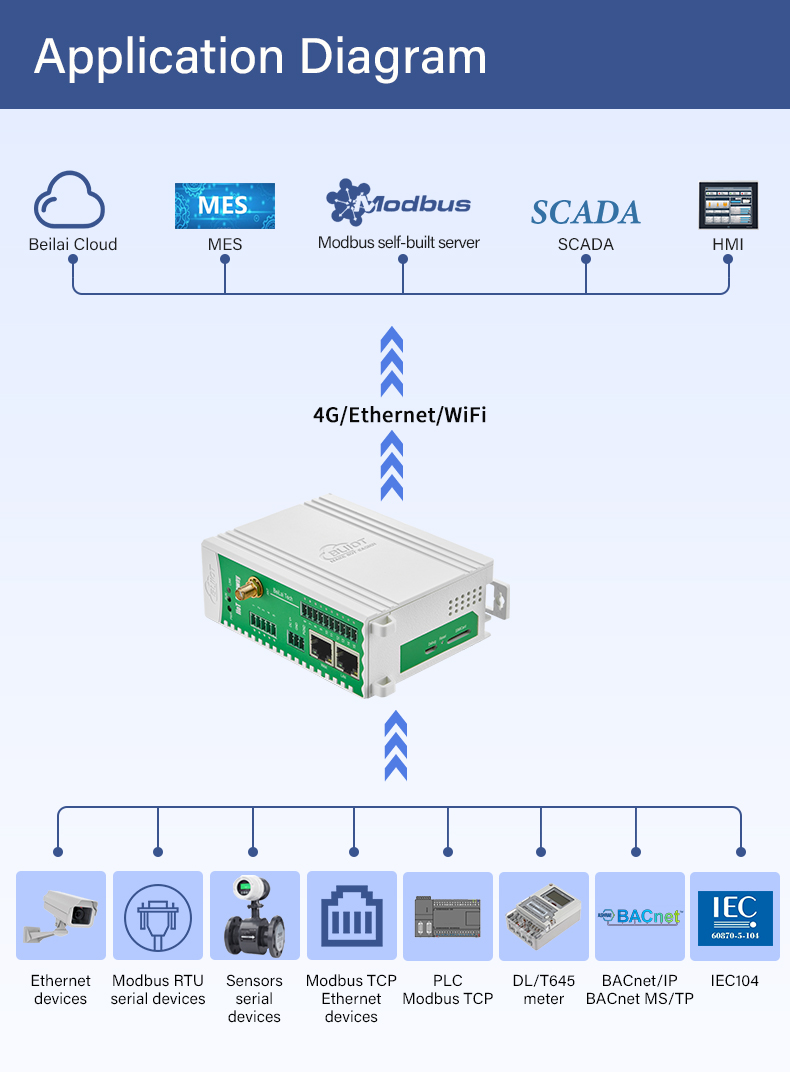

The gateway features a built-in 4G wireless communication module, allowing the Air Conditioner IoT Platform to establish real-time communication via 4G networks. This enables:Real-time collection of air conditioner operational dataRemote control via mobile app commands sent to the IoT platformSmarter, Simpler, More Efficient.System DesignData Acquisition: Through the BL101 air conditioning IoT gateway, connect to the air conditioning thermostat or control panel to collect environmental and air conditioning operation data. The air conditioning IoT gateway then uploads this data to the Bailing Technology Air Conditioning IoT Cloud Platform.
Data Transmission: The gateway transmits data to the Bailing Technology IoT Cloud Platform in real-time via 4G, WiFi, or Ethernet.
Application: The platform allows for real-time viewing of office air conditioning operation data and the setting of alarms. When abnormal conditions occur, management personnel are notified through alarm messages. The office air conditioning remote monitoring system employs 24-hour security monitoring, enabling users to check on-site equipment status at any time using their mobile phones, ensuring the safe and stable operation of the office air conditioning system.

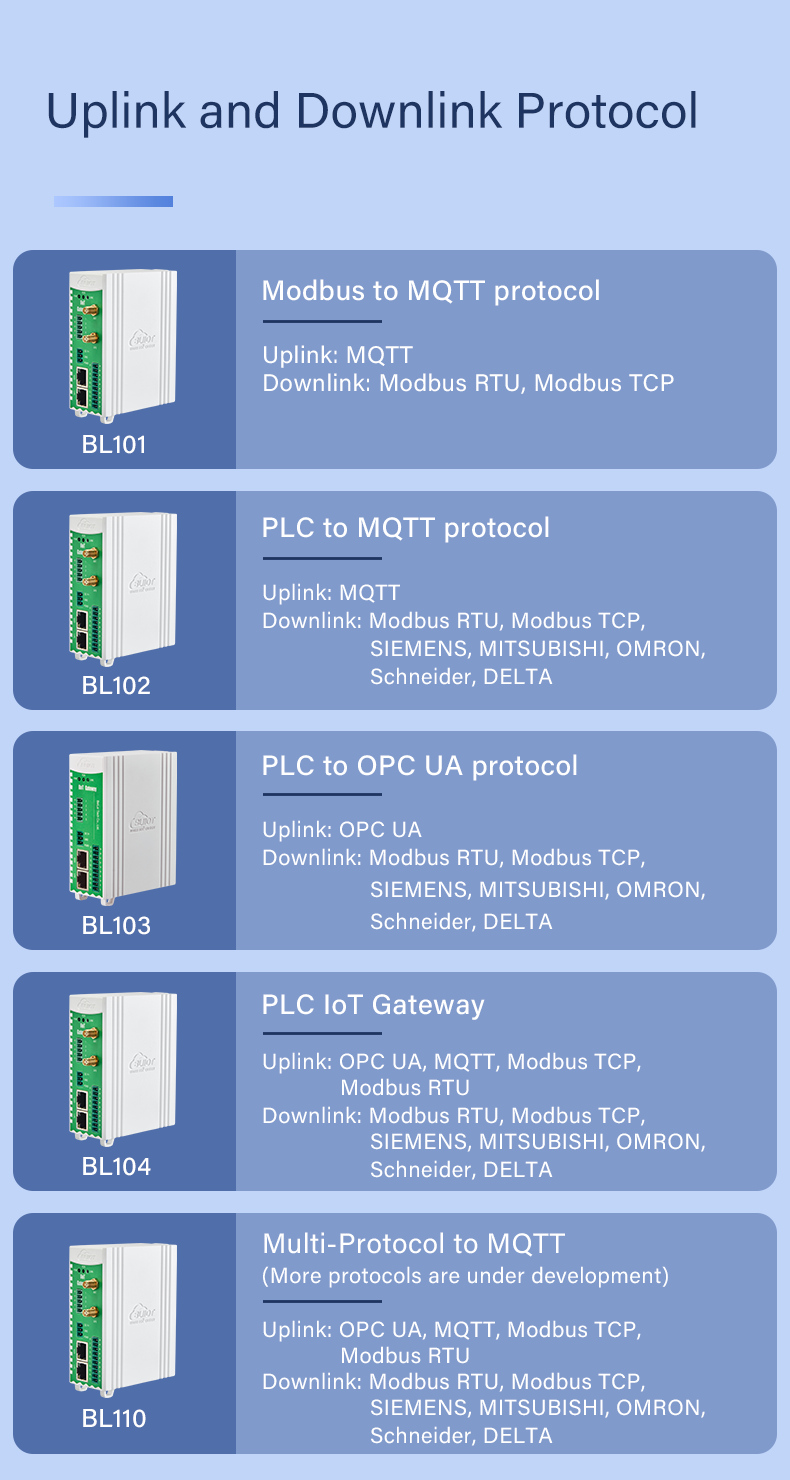

The Beilai Technology air conditioning IoT gateway utilizes a high-performance industrial-grade 32-bit ARM processor, enabling high-speed acquisition of terminal data. Through standardized protocols such as Modbus, it transmits data in real-time to cloud platforms using protocols like MQTT.
1.Utilizes Modbus bus technology to achieve remote control of air conditioners, offering low cost and stable signal transmission.
2.Applicable to 99% of air conditioning equipment on the market, such as Climaveneta, Hitachi, Shandong Bopai, Daikin, Trane, Carrier, Gree, Midea, Haier, and more.
3.Enables remote control of various operating states of the air conditioner, including on/off, temperature, and operating mode.
4.The product is equipped with a temperature and humidity sensor, allowing for real-time monitoring of office temperature and humidity.
5.Supports external air conditioning start/stop sensors for monitoring the air conditioner's operating status.
6.Includes a free IoT cloud platform, enabling remote control of the air conditioner via a mobile APP/official WeChat account.
Product Features(1) Room Temperature Monitoring
(2) Thermostat Status Monitoring
(3) Air Conditioner On/Off Status
(4) Temperature Setting and Monitoring
(5) Air Conditioner Mode Setting and Monitoring (Cooling/Heating/Dehumidifying/Ventilation)
(6) Supports connecting other external sensors for remote environmental data monitoring, such as water leakage and smoke detection. It allows for custom threshold settings for remote alarms and records historical data.
Application ScenariosUsed in office buildings, shopping malls, and banks to ensure safe electricity usage and avoid energy waste.
Used in warehouses, archives, and factories to control air conditioner operation and maintain suitable temperatures.
Used in computer rooms, substations, and base stations to implement anomaly alarms and ensure electrical safety.
Currently, this office air conditioning remote monitoring and control system has been applied in some corporate offices, shopping malls, supermarkets, etc., with positive user feedback. It effectively saves electricity and labor costs. If you have any needs, please feel free to inquire; customization is supported.
