The BL121 Modbus to OPC UA industrial gateway is the key component that helps enterprises transition to industrial interconnectivity and intelligence with minimal cost and modifications.
Case Details
In industrial automation systems, numerous field devices still operate on Modbus RTU or Modbus TCP protocols, including electricity meters, PLCs, inverters, sensors, and instruments. These devices are stable and reliable, yet they face a practical challenge: how to seamlessly integrate into modern Industry 4.0 systems, SCADA, MES, and industrial cloud platforms?
OPC UA, as the next-generation industrial interoperability standard, has become the core communication protocol for Industry 4.0 and smart manufacturing, thanks to its unified information model, robust security, and cross-platform interoperability.
The BL121 Modbus to OPC UA industrial gateway serves as the critical bridge connecting "traditional field devices" with "modern industrial systems."
Why Convert Modbus to OPC UA?
- Limitations of Traditional Modbus
- Register-centric design with missing semantic information
- Limited security mechanisms, unsuitable for direct cloud connectivity
- High system integration costs and poor cross-platform interoperability
- Advantages of OPC UA
- Object-oriented data model with clear information structure
- Built-in security features (encryption, authentication, access control)
- Easy integration with SCADA, MES, digital twins, and industrial clouds
Modbus + OPC UA is the shortest path for traditional industry to transition to Industry 4.0.
BL121: Designed Specifically for Industrial Protocol Conversion
The BL121 is an industrial-grade Modbus to OPC UA gateway focused on standardizing field device data and enabling system interconnectivity.
It acts as a Modbus Master on the downlink side and an OPC UA Server on the uplink side, achieving automatic data collection, mapping, and publishing.
Core Positioning
- Southbound: Modbus RTU / Modbus TCP
- Northbound: OPC UA
- Role: Industrial protocol conversion + edge data aggregation
Key Features of BL121 Modbus to OPC UA Gateway
-
Centralized Access for Multiple Modbus Devices The BL121 supports:
- Modbus RTU Master (RS485/RS232)
- Modbus TCP Master (Ethernet)
- Baisc verison supports 10 Modbus devices and 512 data point collection
- Pro verison supports 50 Modbus devices and 4000 data point collection
This allows dispersed field devices to be centrally managed via a single gateway, significantly simplifying system architecture.
-
Automatic Mapping to OPC UA Data Model Through the BL121:
- Modbus registers → OPC UA Nodes
- Real-time data published as standard OPC UA information models
- Upper systems no longer need to handle Modbus details
SCADA, MES, energy management systems, or industrial cloud platforms can simply subscribe to data via OPC UA.
-
Industrial-Grade Hardware for Long-Term Operation The BL121 features ARM architecture with Linux OS, ensuring stability and reliability in industrial environments:
- DC 9–36V wide voltage power supply with reverse connection protection
- Dual Ethernet ports (WAN + LAN) supporting cascading
- 2 or 6 channels RS485/RS232 serial ports (expandable models available)
- Industrial EMC design, supporting -40~85°C wide temperature range
-
Remote Maintenance to Reduce System Costs The BL121 supports:
- Remote configuration
- Remote firmware upgrades
- Runtime monitoring (CPU, memory, network, serial ports)
This is particularly valuable for distributed sites, unmanned systems, and cross-regional deployments.

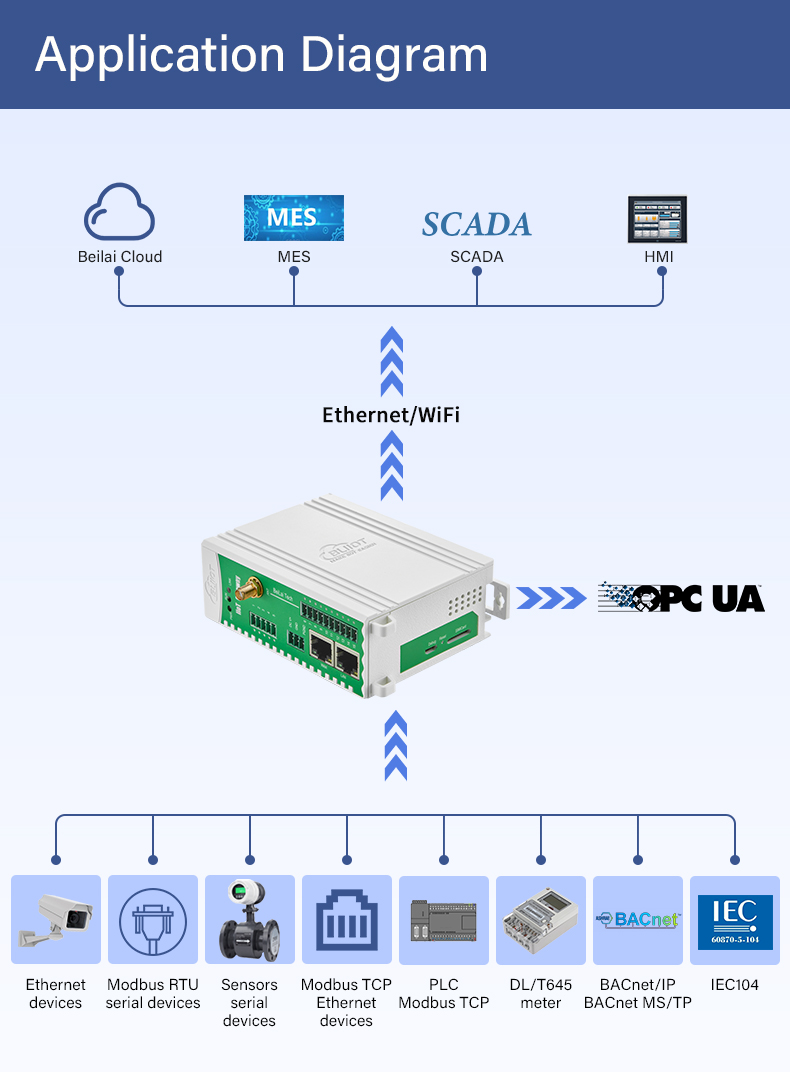

Typical Application Scenarios
- Smart Manufacturing PLCs and instruments → OPC UA → MES Achieving production data transparency and digitization
- Energy Management Systems (EMS) Electricity meters and collectors → OPC UA → Energy platforms Enabling energy consumption analysis and optimization
- Building Automation Systems (BAS) Air conditioning, power, and water meters → OPC UA → BMS Building a unified building data model
- Industrial Cloud and Digital Twins No need to modify Modbus devices Rapid integration into industrial clouds and digital twin systems
Why Choose BL121?
- Specialized in protocol conversion for stability and reliability
- True industrial-grade design suitable for long-term operation
- Cost-effective solution for Modbus to OPC UA conversion
- Provides standard interfaces for Industry 4.0 and future systems
Conclusion
Industry 4.0 does not mean abandoning existing systems; it means revitalizing traditional devices with new value.
The BL121 Modbus to OPC UA industrial gateway is the key component that helps enterprises transition to industrial interconnectivity and intelligence with minimal cost and modifications.
Connect the future with OPC UA; connect the present with BL121.
