ARMxy BL335 is an industrial-grade embedded gateway for emergency generator vehicles. It enables real-time RS485 data acquisition (fuel level, current, voltage), stable 4G/MQTT transmission to cloud, remote control & proactive alerts, ensuring reliable backup power and efficient fleet management.
Case Details
In emergency power guarantee scenarios such as data centers, hospitals, and large-scale event venues, emergency generator vehicles are critical "backup energy pillars" that must respond promptly to sudden power outages. However, traditional emergency generator fleet management faces pain points including decentralized deployment, mobile operations, reliance on manual inspections, and passive fault response—leading to delayed alerts, inefficient fuel management, and unpredictable power support. Intelligent, real-time, and remote-monitored generator management systems have become the industry’s urgent demand. In this transformation, the
ARMxy BL335 industrial-grade embedded gateway stands out as the preferred core platform due to its robust industrial design, flexible data acquisition capabilities, reliable wireless communication, and powerful edge computing support.
Modern emergency generator vehicle monitoring systems must achieve:
Real-time monitoring of core parameters: fuel level, battery voltage, output current/frequency, engine runtime, and fault codes
Trend analysis of operational status and early anomaly detection
Continuous data collection without loss during vehicle movement or generator operation
Low-latency, stable data upload to self-built IoT cloud platforms or central monitoring centers
Offline data buffering and automatic synchronization when network is restored
Encrypted data transmission to ensure information security
Support for remote start/stop of generator sets
Real-time alerts for low fuel levels, abnormal battery voltage, and overload conditions
Maintenance reminders based on runtime and operational data
Resistance to vibration, extreme temperatures, and electromagnetic interference (EMI)
Stable operation under on-board power fluctuations
Dust and moisture protection for field deployment
Low-code configuration for non-professional engineers
Remote debugging, firmware updates, and parameter modification
Minimal on-site service requirements
Traditional monitoring solutions struggle with unstable data transmission in mobile scenarios, poor environmental adaptability, and high deployment costs. The ARMxy BL335, with its integrated hardware and software advantages, perfectly meets the above intelligent requirements.
Wide operating temperature range (-40°C to +85°C for industrial-grade SOM models), vibration-resistant (5–500Hz, 2g sine vibration test passed)
Complies with GB/T/IEC EMC standards (ESD ±8kV air discharge, surge ±4kV common mode), EMI-resistant
Ultra-high MTBF, ideal for 7×24h continuous operation in harsh engine compartment environments
Wide voltage input (9–36VDC) with reverse polarity and overcurrent protection, adapting to on-board power fluctuations
RS485/Modbus RTU (via X-series IO boards), 4G/WiFi (via Mini PCIE slot + NANO SIM card slot)
Abundant DI/DO, analog inputs/outputs (4–20mA, 0–10V) via Y-series IO modules
Dual Ethernet, Micro USB debug port, and SD card slot for extended functionality
Runs Linux-5.4.61/Linux-RT-5.4.61 kernels and Ubuntu20.04 system
Built-in
Node-Red graphical tool for local logic configuration (threshold monitoring, alert triggers)
100% operational even during network outages; built-in storage (256M Nand Flash ~8G eMMC) for offline data buffering
Pre-installed
BLIoTLink software, supporting Modbus RTU/
MQTT protocol conversion
Seamless integration with IoT cloud platforms and central monitoring systems
Functions as an industrial gateway, enabling linkage with generator control systems
Customizable ROM/RAM via SOM modules to support complex data processing
Expandable IO modules (e.g., thermocouple modules for exhaust temperature monitoring)
OTA firmware updates + multi-layer encryption for data security
BLRAT remote access tool for efficient remote maintenance

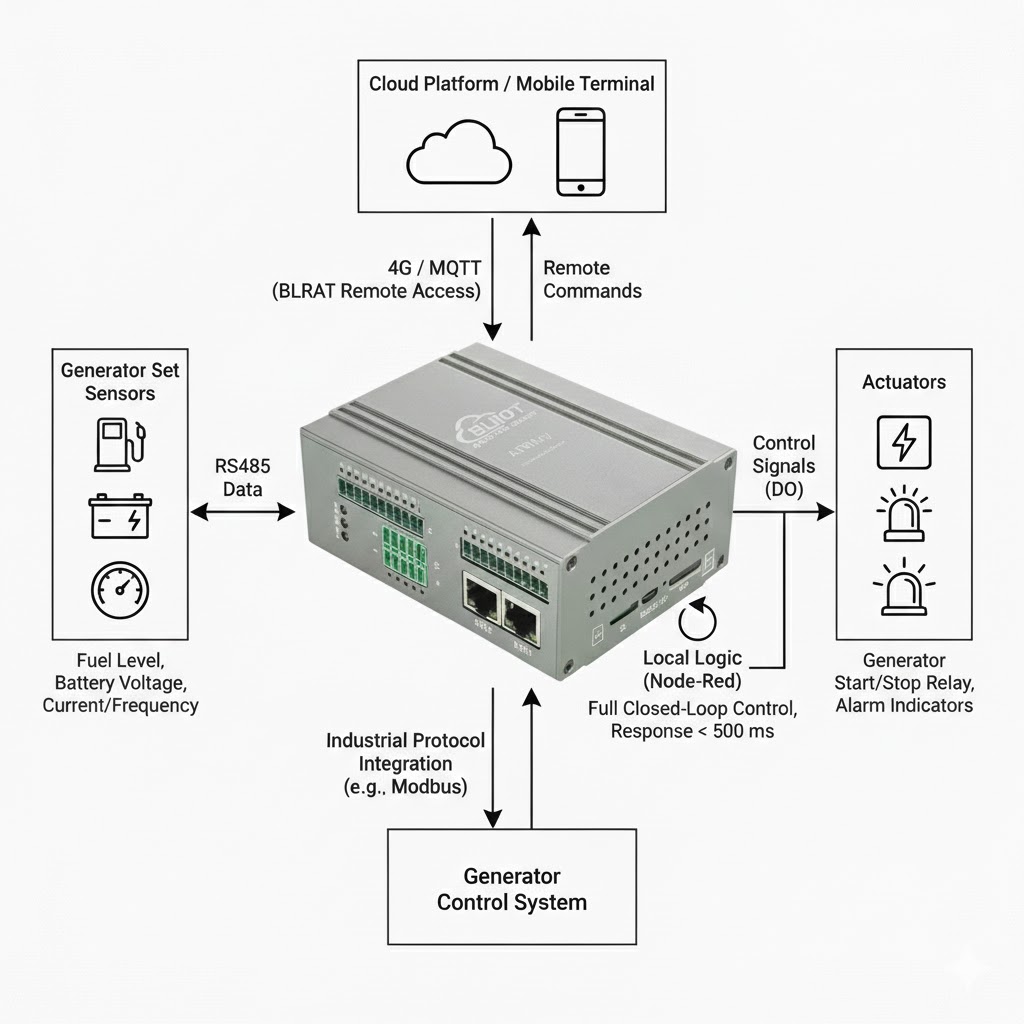

Generator Set Sensors (Fuel Level, Battery Voltage, Current/Frequency) → ARMxy BL335 (Core Gateway) → Actuators (Generator Start/Stop Relay, Alarm Indicators)
↑ ↑ ↓
Cloud Platform / Mobile Terminal Local Logic (
Node-Red) Generator Control System
Achieves full closed-loop control with response times under 500 ms.
Each
ARMxy BL335 gateway is deployed on an emergency generator vehicle, connecting to the generator set’s controller via RS485 (X1 4-channel RS485 module) to collect real-time operational data (fuel level, battery voltage, output current/frequency, runtime, fault codes). The gateway transmits data to the cloud platform via 4G +
MQTT protocol, enabling the central monitoring center to track vehicle location, operational status, and remaining fuel in real time. Remote start/stop control is supported via DO modules, while low-fuel alerts, maintenance reminders, and fault notifications are triggered by local Node-Red logic—transforming traditional manual inspection into 24/7 intelligent monitoring. This solution reduces emergency response time by 70% and cuts on-site maintenance costs by over 50%, ensuring reliable emergency power support for end users such as data centers, hospitals, and large event venues.
Reliable Emergency Power Assurance: Real-time monitoring and proactive alerts ensure generator readiness
Efficient Fleet Management: Centralized control of decentralized assets eliminates manual inspection inefficiencies
Cost Reduction: Remote O&M and predictive maintenance minimize downtime and service costs
Data-Driven Decision Making: Operational data analysis optimizes fuel usage and maintenance schedules
Future-Proof Scalability: Customizable hardware/software and protocol compatibility support future function expansion
The
ARMxy BL335-powered emergency generator vehicle monitoring system is evolving from “passive manual inspection” to “active intelligent control.” With its robust design, reliable performance, and flexible configuration, it has become an indispensable core component in modern emergency power guarantee systems. As industries demand more resilient and efficient energy security, the ARMxy BL335 will continue to empower the digital transformation of emergency generator fleets, providing predictable and high-reliability power support for critical scenarios.
